PS10-33 Sequence, External Pilot, Internal Drain (PS10-33)

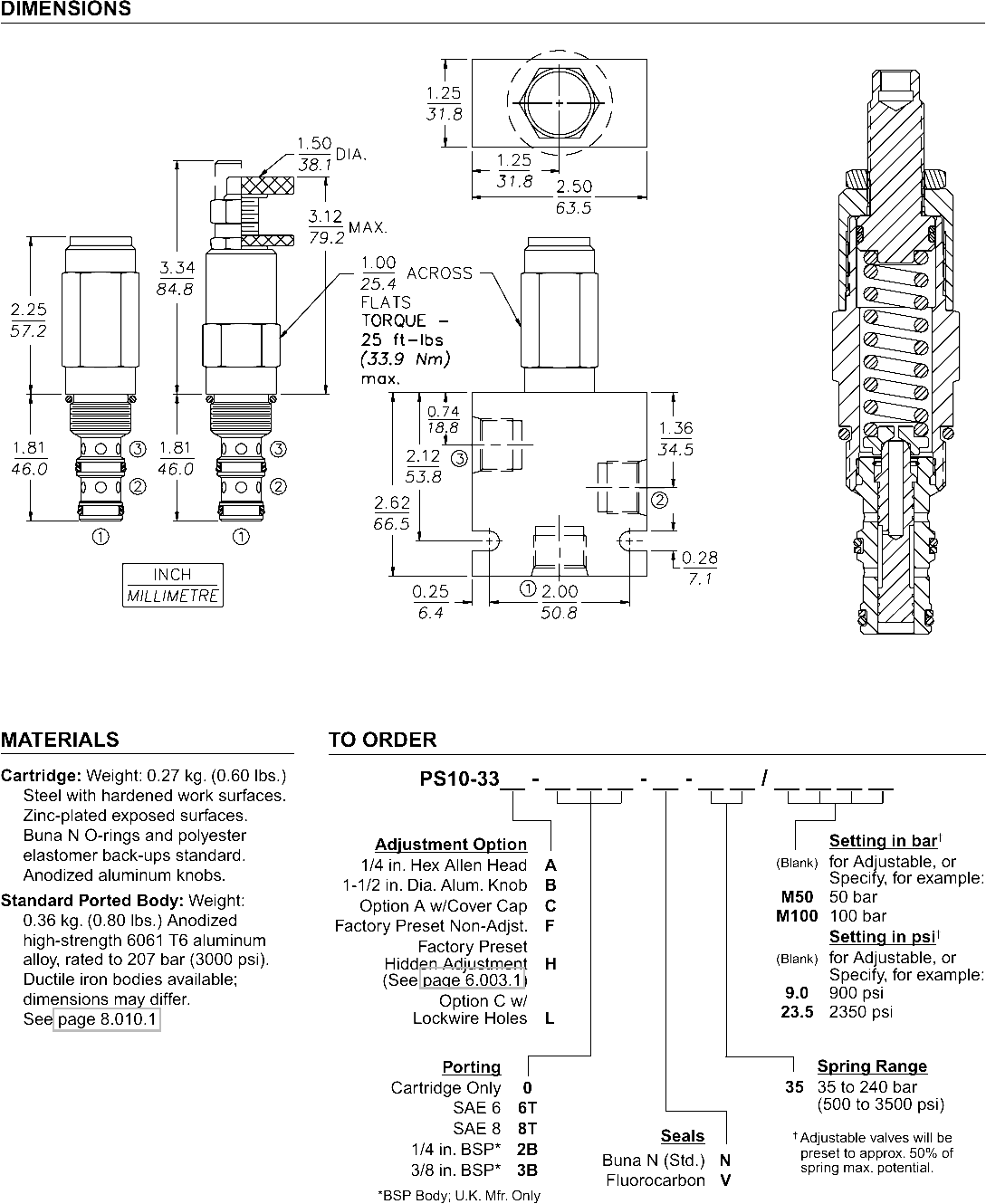

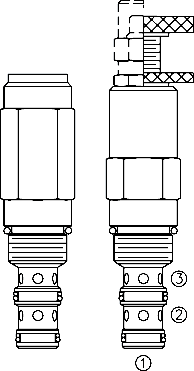

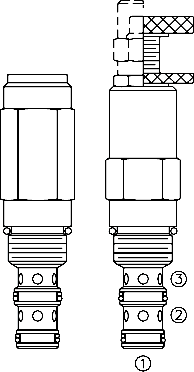

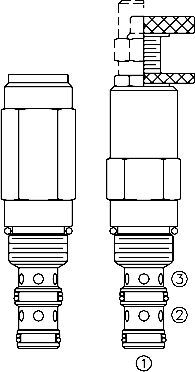

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain.
Product Operation

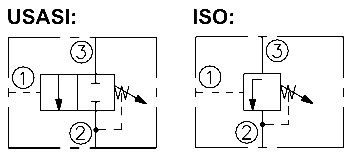

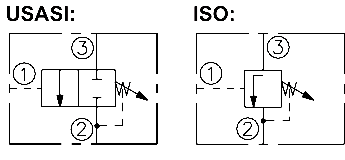

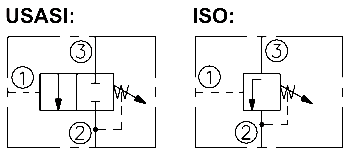

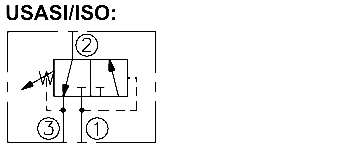

In its steady state, the PS10-33 blocks flow from ➂ to ➁On attainment of a pre-determined pressure at ➀, the cartridge shifts to open ➂ to ➁Since the spring chamber is vented at ➁, back pressure at ➁ will directly (1:1) affect the valve’s setting.
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Spring range to 240 bar (3500 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)

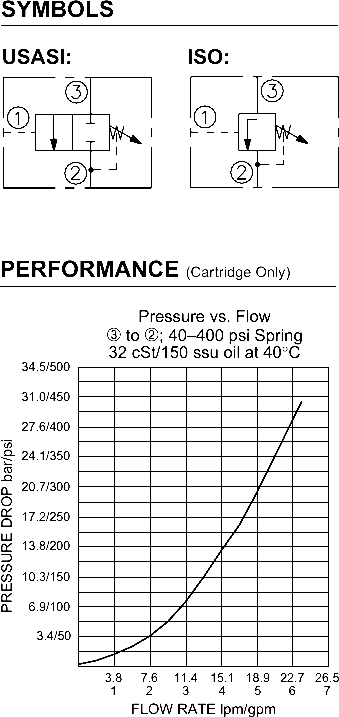

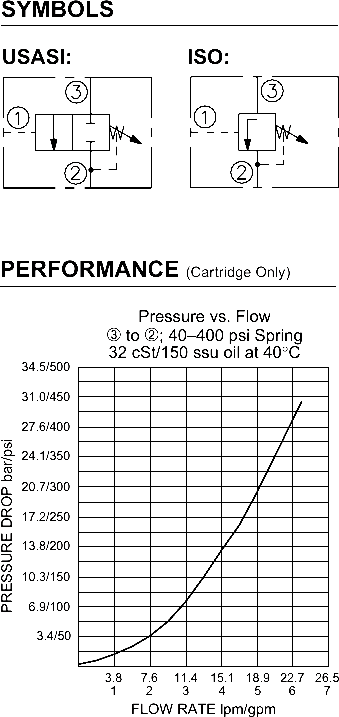

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. to 90% of nominal setting
Standard Spring Range: 35 to 240 bar (500 to 3500 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-TB; See page 8.650.1
