PS10-30 Sequence, Internal Pilot & Drain (PS10-30)

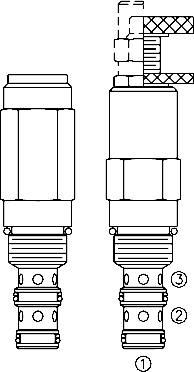

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with internal pilot and spring chamber drain, designed to direct flow to a secondary circuit once a pre-determined pressure level is attained in the primary circuit.
Product Operation

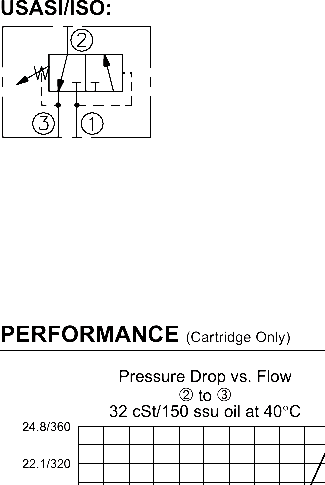

In its steady state, the PS10-30 blocks flow at ➀, while allowing flow to pass from ➁ to ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to open ➀ to ➁
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 144.8 bar (2100 psi).
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 207 bar (3000 psi)

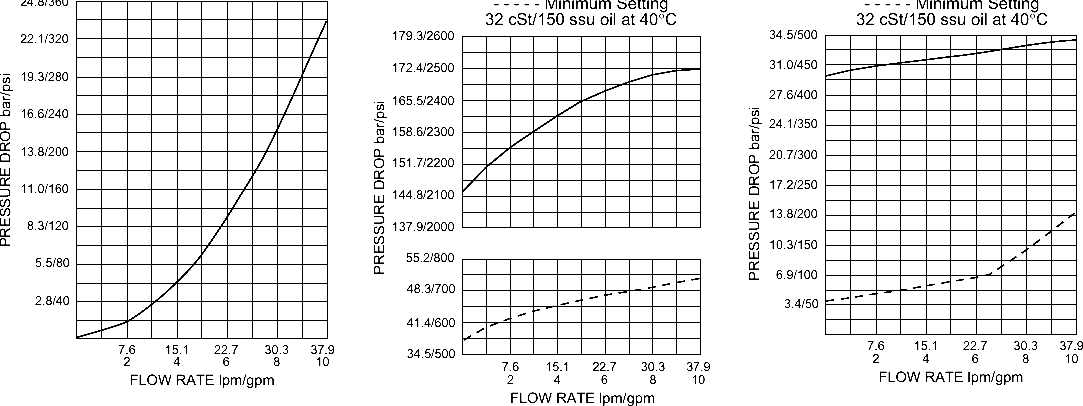

Flow: See Performance Chart
Internal Leakage ➀
to ➁
: 82 cc/minute (5 cu. in./minute) max. to 85% of nominal setting
Standard Spring Ranges: 2.8 to 27.6 bar (40 to 400 psi); 14.5 to 144.8 bar (210 to 2100 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

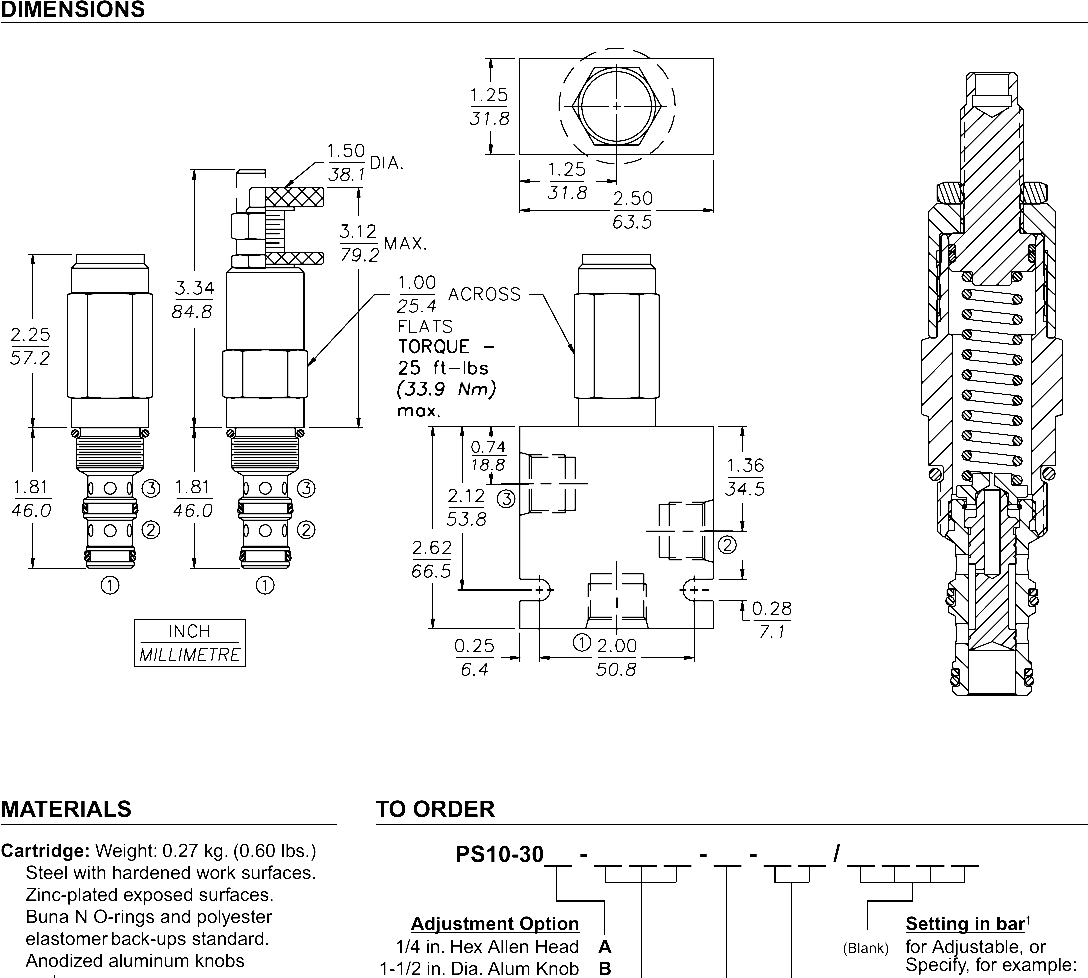

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-BB; See page 8.650.1
