PS08-30 Sequence, Internal Pilot & Drain (PS08-30)
A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with internal pilot and spring chamber drain, designed to direct oil to a secondary circuit once a pre-determined pressure level is attained in the primary circuit.
Product Operation

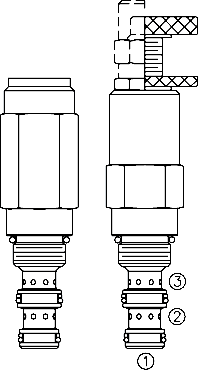

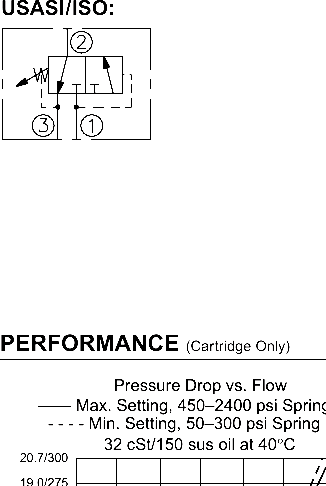

In its steady state, the PS08-30 blocks flow at ➀, while allowing flow to pass from ➁ to ➂On attainment of a pre-determined pressure at ➀, the cartridge shifts to open ➀ to ➁
Product Features
• Adjustments cannot be backed out of the valve.
• Adjustments prohibit springs from going solid.
• Optional spring ranges to 165.5 bar (2400 psi).
• Hardened spool and cage for long life.
• Compact size.
Product Ratings
Operating Pressure: 240 bar (3500 psi)

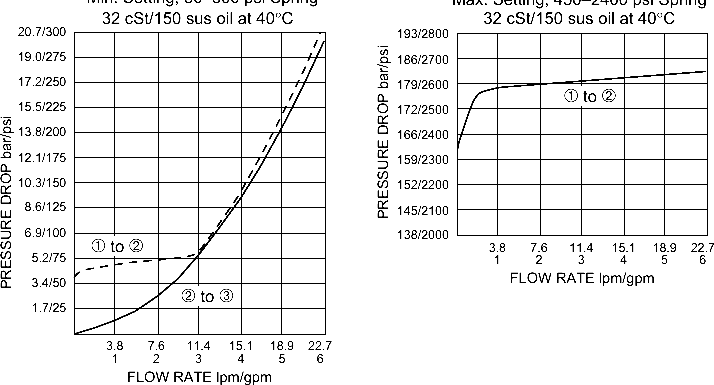

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. to 90% of nominal setting
Standard Spring Ranges:3.4 to 20.7 bar (50 to 300 psi);6.9 to 41.4 bar (100 to 600 psi);10.3 to 89.7 bar (150 to 1300 psi);31.0 to 165.5 bar (450 to 2400 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

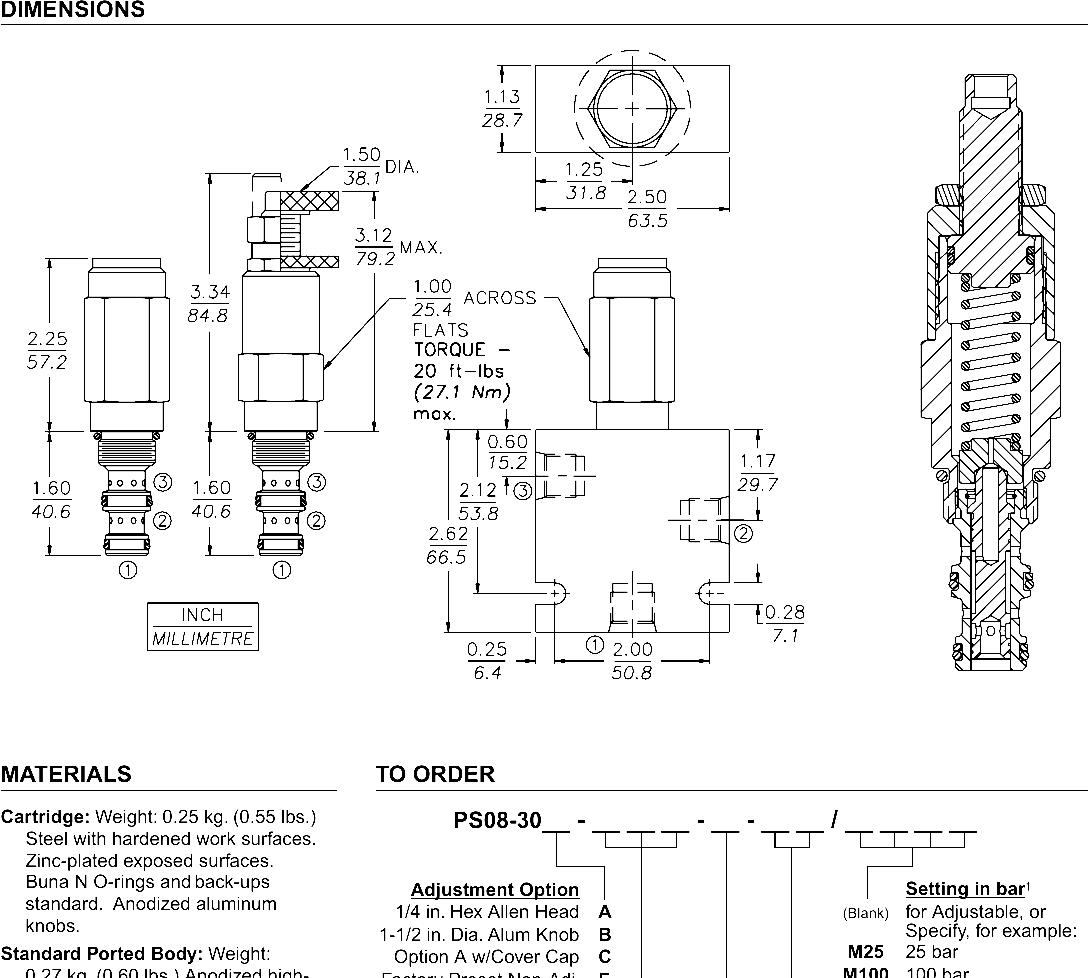

Cavity: VC08-3; See page 9.108.1
Cavity Tool: CT08-3XX; See page 8.600.1
Seal Kit: SK08-3X-BB; See page 8.650.1
