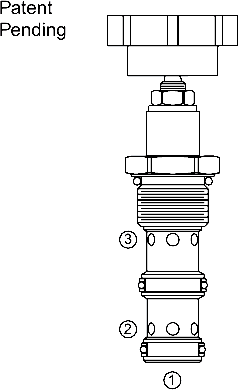

FR12-32 Flow Regulator, Orifice Adjustable, (FR12-32)
A manually adjustable, pressure-compensated, bi-directional flow control valve. An internal compensator spool provides compensated flow across the proportional orifice regardless of flow direction.
Product Operation

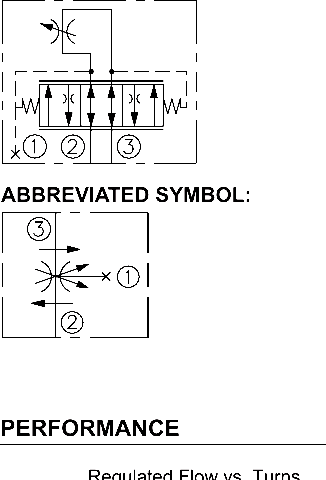

The FR12-32 provides regulated flow in both directions: from port ➁ to port ➂, or from port ➂ to port ➁. Port ➀ should be blocked. Regulated flow increases from closed to fully open with clockwise rotation. The valve will maintain the set flow rate regardless
of pressure variations at each of the ports.
Product Features
• Excellent linearity and hysteresis characteristics.
• Hardened spool and cage for long life.
• Various adjustment options.

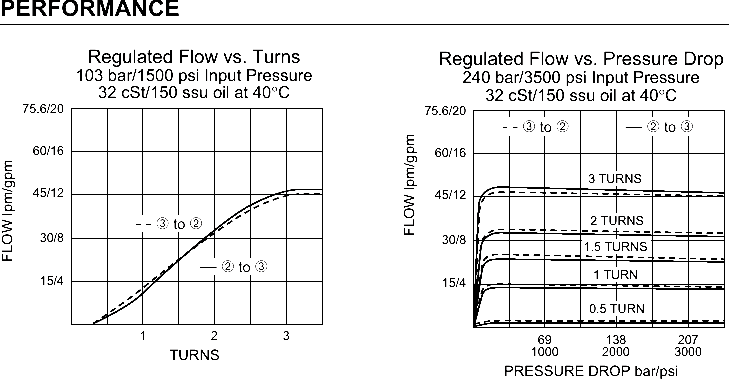

Product Ratings
Maximum Operating Pressure: 240 bar (3500 psi)
Regulated Flow: 0-50 lpm (0-13 gpm)
Internal Leakage: 0.38 lpm (0.10 gpm) maximum
Temperature: -40 to 120°C with Buna N seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.

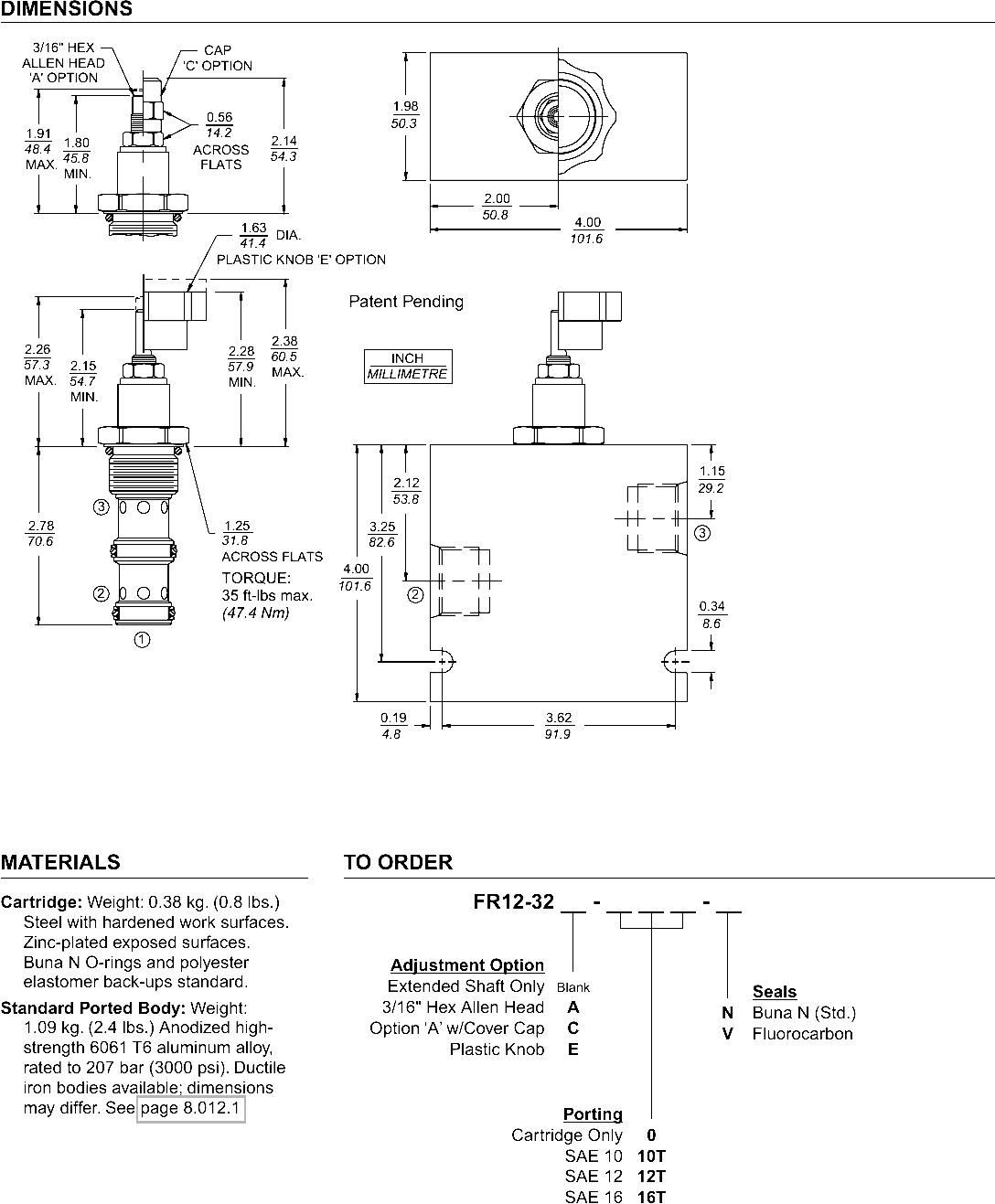

Cavity: VC12-3; See page 9.112.1
Cavity Tool: CT12-3X-XX; See page 8.600.1
Seal Kit: SK12-3X-MM; See page 8.650.1
