FR10-32 Flow Regulator, Orifice Adjustable, (FR10-32)

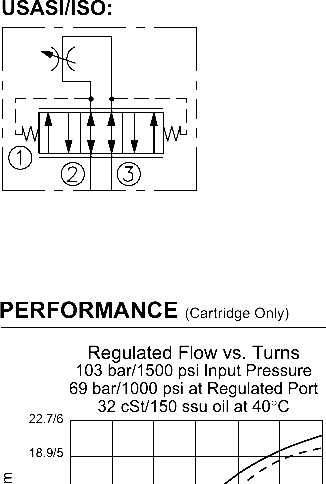

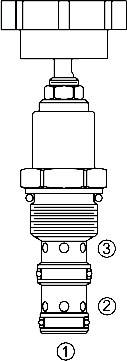

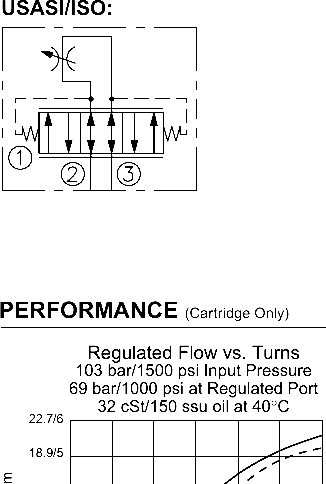

A screw-in, cartridge-style, pressure-compensated, manually-operated, bi-directional hydraulic flow regulating valve. An internal compensator spool provides compensated flow across the proportional orifice regardless of flow direction.
Product Operation
The FR10-32 provides regulated flow in both directions, from port ➁ to port ➂, or from port ➂ to port ➁. Port ➀ should be blocked. Regulated flow increases from closed to fully open with clockwise rotation. The valve will maintain the set flow rate regardless
of pressure variations at each of the ports.
Product Features
• Hardened seat for long life and low leakage.
• Various adjustment options.
• Excellent linearity and hysteresis.
• Industry common cavity.

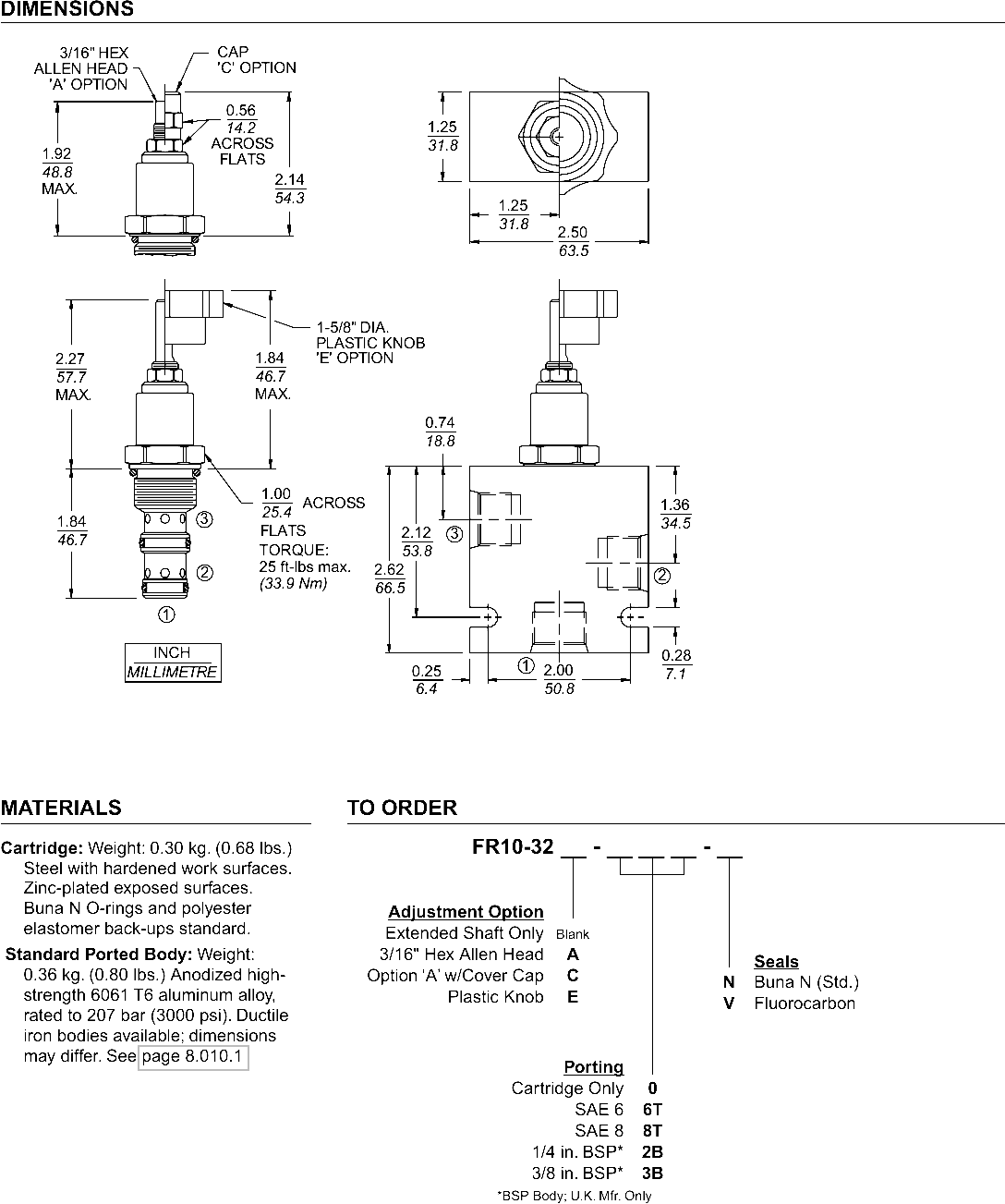

Product Ratings
Operating Pressure: Inlet: 240 bar (3500 psi)

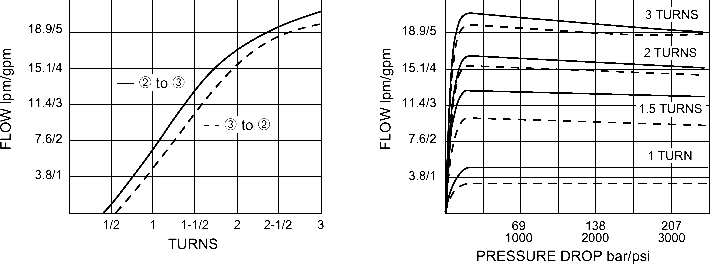

Rated Inlet Flow Rate: 19 lpm (5 gpm); see performance chart
Internal Leakage: 0.38 ml/minute (0.10 gpm/minute) maximum
Temperature: -40 to 120°C with Buna N seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-MM; See page 8.650.1
Knob Kit: Part Number 6113160
