FR10-30A Regulator, Pressure-Compensated (FR10-30A)

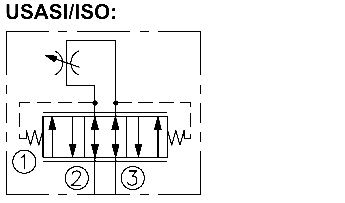

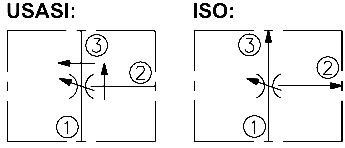

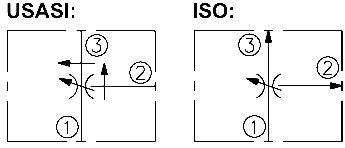

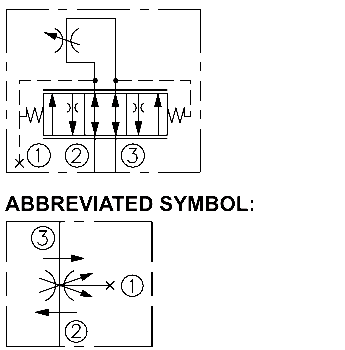

A screw-in, cartridge-style, fi xed orifice, pressure-compensated, bypass-type hydraulic flow regulating valve, with limited range adjustment from a pre-determined nominal setting.

Product Operation

The FR10-30A maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁The valve will pressure-compensate once a minimum pressure drop (determined
by spring adjustment setting) is achieved from ➀ to ➂. This value will range from approximately 4.8 to 13.8 bar (70 to 200 psid).
The cartridge may be adjusted to ±25% of nominal setting. At nominal setting,
pressure drop is approximately 9 bar (130 psid).
Flow out of priority port ➂ may vary based on input flow amount, particularly with lower temperatures and increased fl uid viscosities. Settings may need to be
established through correlation study. Consult factory.

Product Features

• Bypass port ➁ may be fully pressurized.
• Hardened steel parts for long life.
 Quiet, modulated response.
 Industry common cavity.

Product Ratings

Operating Pressure: 207 bar (3000 psi)

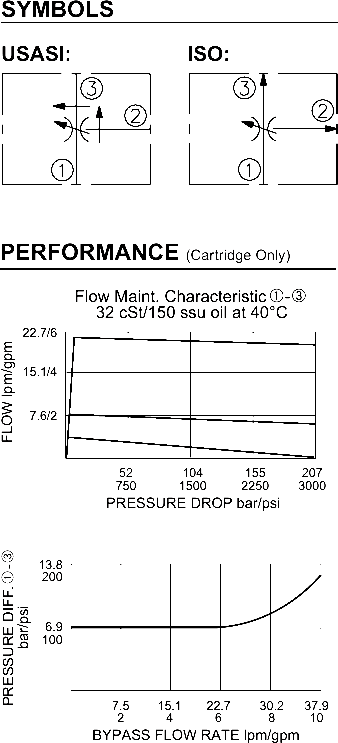

Customer-Specifi ed Standard Flow Setting: Low Range: 1.9 to 9.5 lpm (0.5 to 2.5 gpm); Specify in 1.9 lpm (0.5 gpm) increments. High Range: 11.4 to 22.7 lpm (3.0 to 6.0 gpm); Specify in 3.8 lpm (1 gpm) increments. See ordering table on facing page. Pressure at ➀ begins to rise higher than compensating pressure differential when bypass flow exceeds 23 lpm (6 gpm).
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

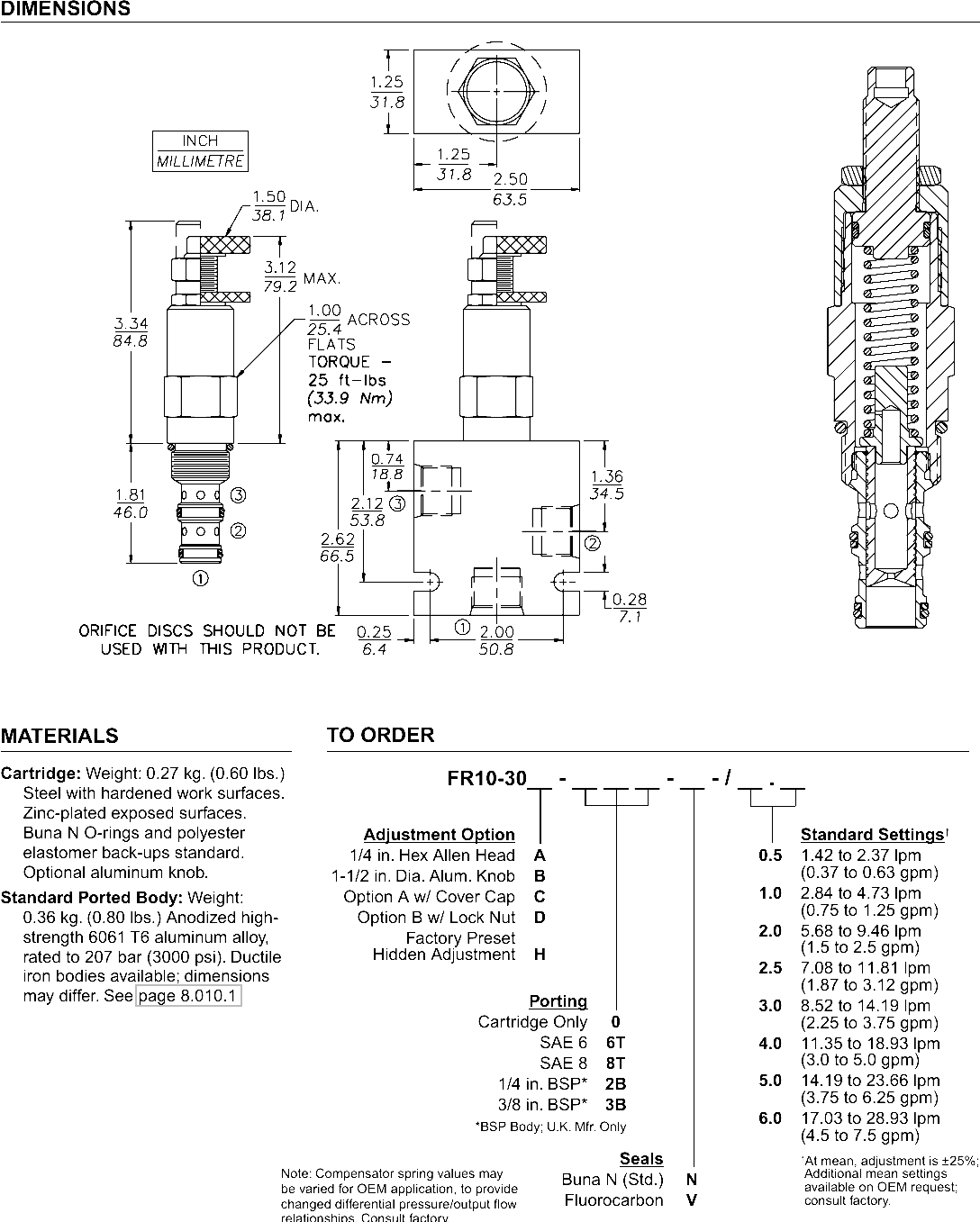

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-TB; See page 8.650.1
