Pilot-Operated, Proportional Valves

PE42-S67C Proportional, Pilot Operated (PE42-S67C)

<div>
<h3>Product Operation</h3>
When the PE42-S67C is in neutral position all ports are blocked. When the remote
pilot signal at ➀ exceeds the force of the bias spring, the spool shifts proportionally to the applied pilot pressure to allow flow from ➂ to ➃ through a load such as a hydraulic cylinder or motor, and from ➁ to ➄ and to tank. When the pilot signal at ➅ exceeds the force of the bias spring the spool shifts proportionally to the applied force
to allow flow from ➂ to ➁ and from ➃ to ➄. When the pilot signal is less than the force of the bias spring, the spool will return to the center position. The valve’s spool is
symmetrical, providing meter-in and meter-out control.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost-effective cavity.
• Excellent metering characteristics.
• Good linearity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Port ➂: 345 bar (5000 psi) Ports ➁ and ➃: 240 bar (3500 psi) Ports ➀ and ➅: 27.6 bar (400 psi)
Flow: 0–170 lpm (0–45 gpm); See Performance Chart
Internal Leakage: 590 cc/minute (36 cu. in./minute) at 207 bar (3000 psi)
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-S6; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-S6; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

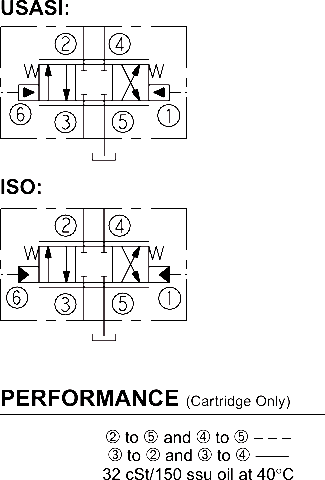

4-420-1-symbols

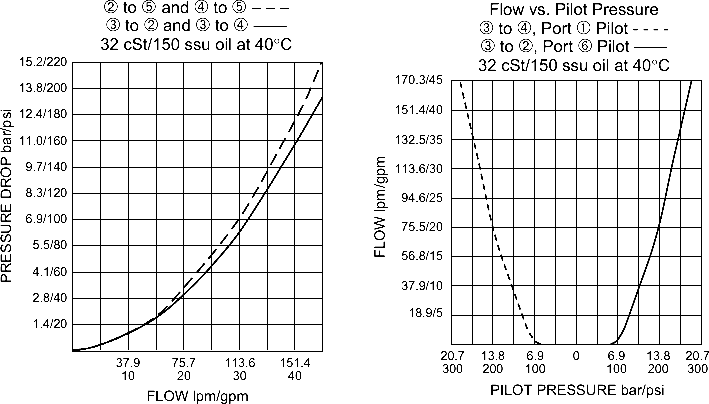

4-420-1-graphs-image

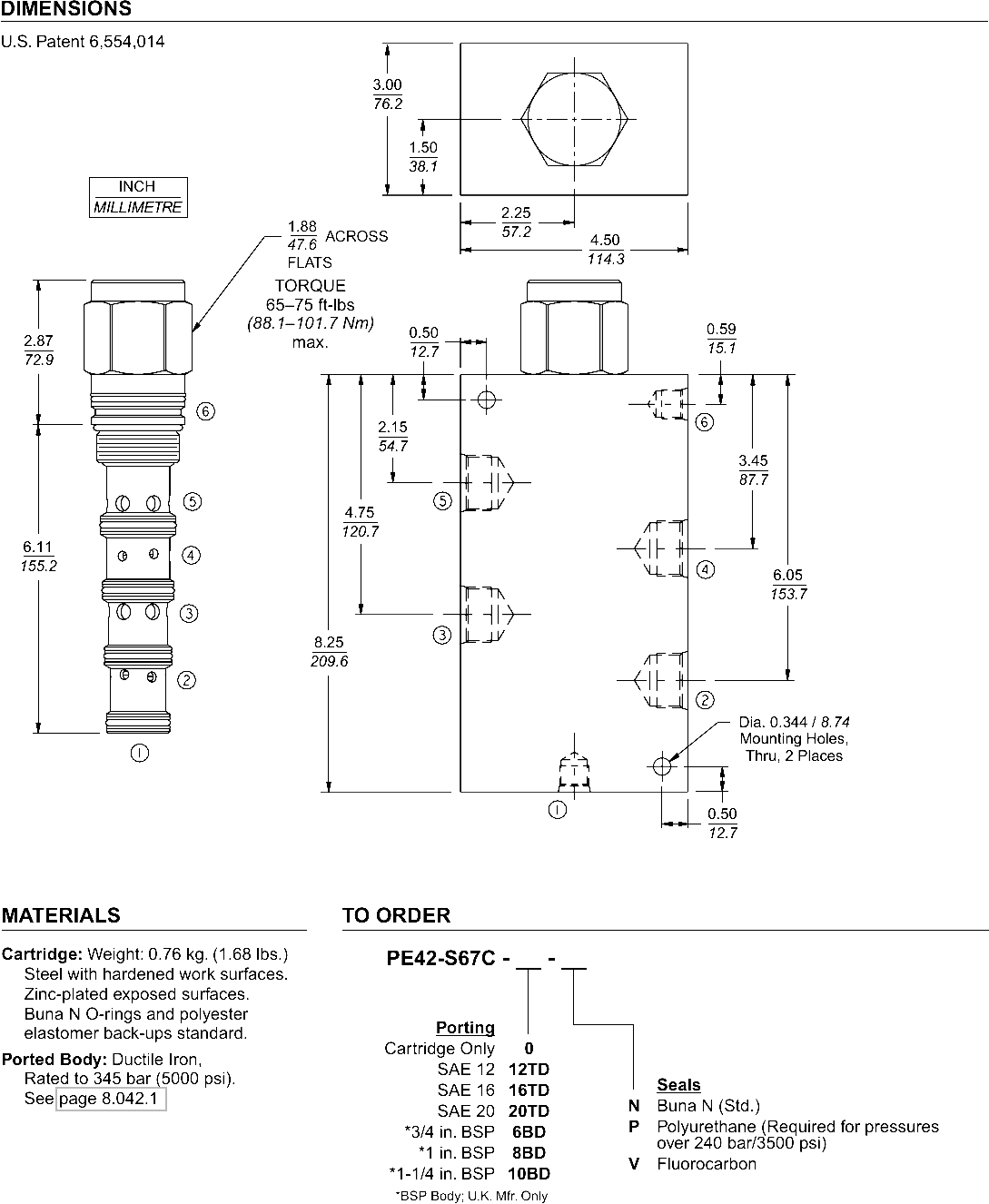

4-420-1-image-dimensions

4-420-1-symbols-image

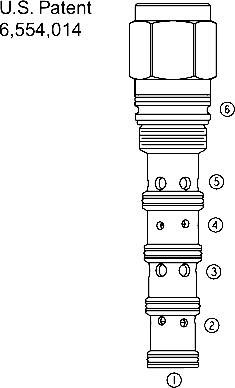

4-420-1-main-image
