Pilot-Operated, Proportional Valves

PE16-S67K Proportional, Pilot Operated (PE16-S67K)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When the PE16-S67K is in neutral position, inlet port ➂ is blocked while ports ➁, ➃ and ➄ are connected to each other. With remote pilot signal at port ➀, the valve’s spool shifts proportionally to the applied pilot pressure to allow flow from ➂ to ➃ through a load such as a hydraulic cylinder or motor, and then from ➁ to ➄ and to tank. Port ➁ is open during transition. On remote pilot signal at ➅, the spool shifts proportionally to the applied pressure in the opposite direction, reversing the flow
direction. Port ➃ is open during transition. The spool is non-symmetrical, providing only meter-in control.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost-effective cavity.
• Excellent metering characteristics.
• Good linearity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: Port ➂: 345 bar (5000 psi) Ports ➁ and ➃: 240 bar (3500 psi) Ports ➀ and ➅: 27.6 bar (400 psi)
Flow: See Performance Chart
Internal Leakage: 197 ml/minute (12 cu. in./minute) at 207 bar (3000 psi) maximum
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-S6; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-S6; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

4-438-1-symbols

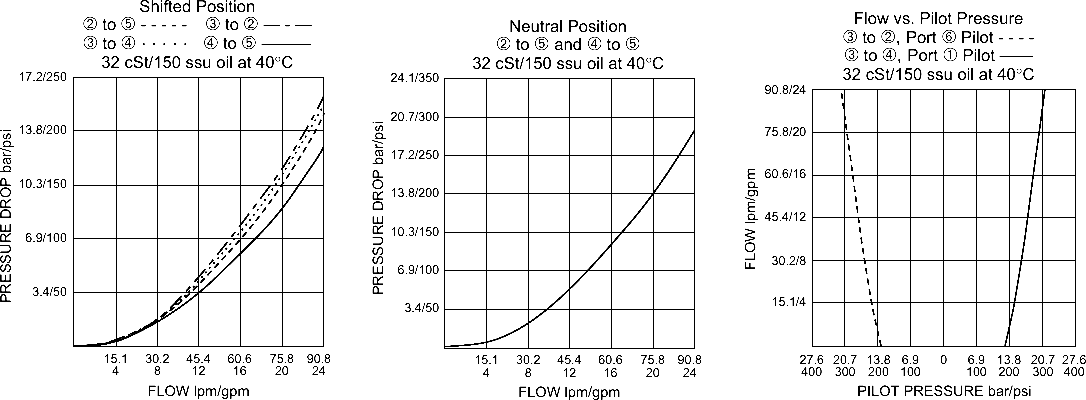

4-438-1-graphs-image

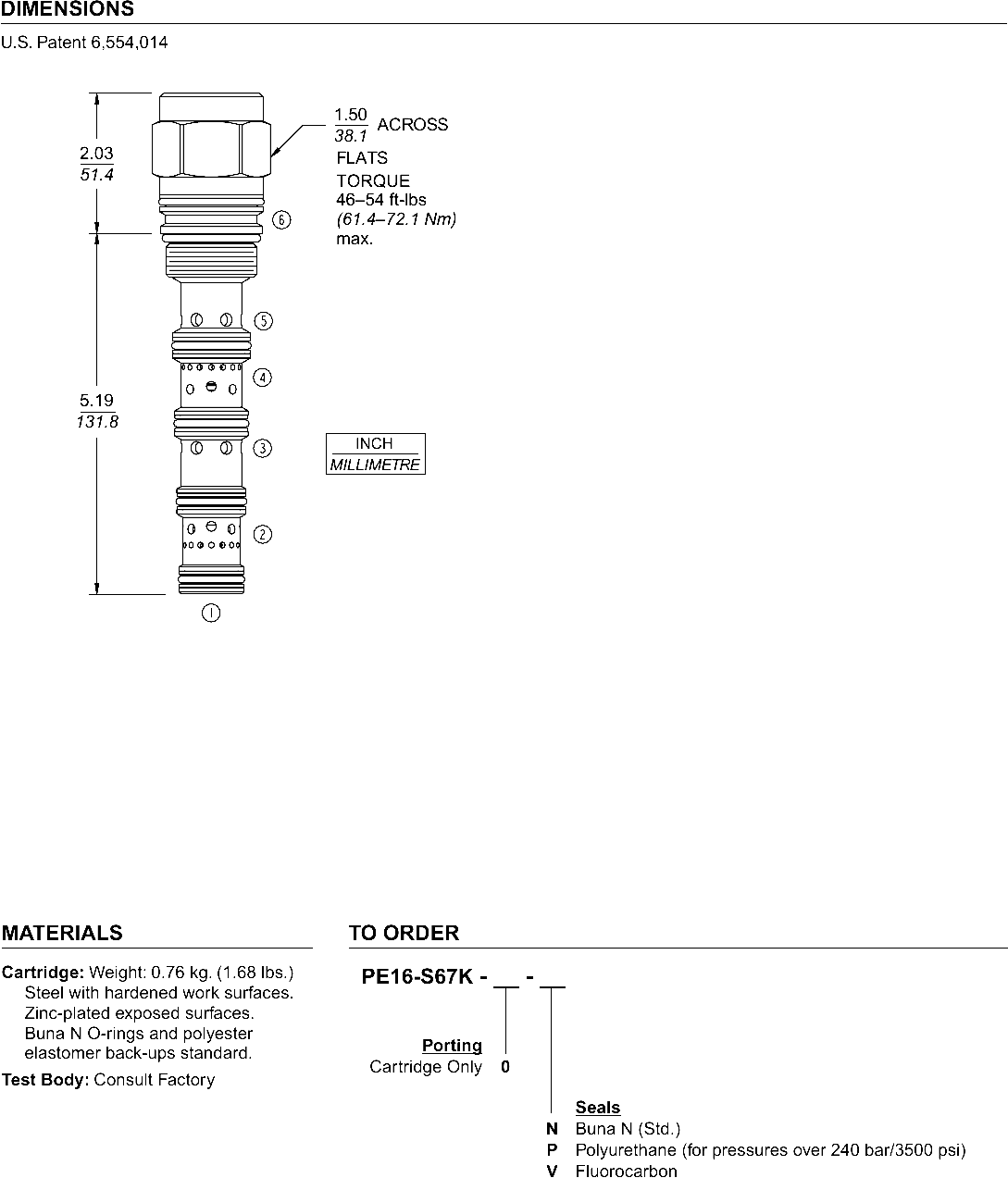

4-438-1-image-dimensions

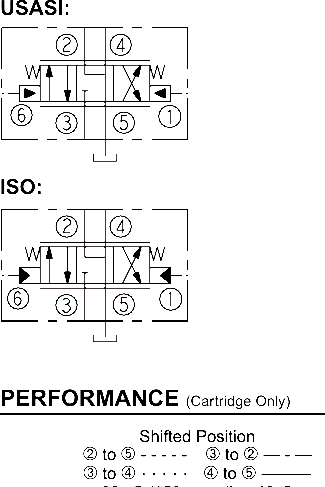

4-438-1-symbols-image

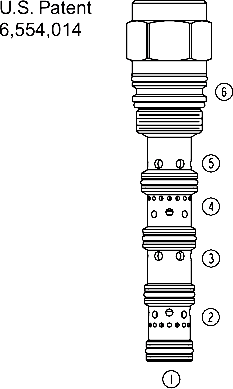

4-438-1-main-image
