MR10-31 (MR10-31)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
Rotation of 90°, 2-position. In extreme counterclockwise position, ports ➀ and ➁ are open while port ➂ is closed. In extreme clockwise position, ports ➀ and ➂ are open while port ➁ is closed. All ports are closed in transition.
</div>
<div>
<h3>Product Features</h3>
• Two-position detent or infi nite friction lock ordered separately.
• May be fully pressurized at all ports.
• Optional lock-down bracket.
• Heavy-duty construction.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Max. Flow: See Performance Chart
Internal Leakage: 164 cc/min. (10 cu. in./min.) at 240 bar (3500 psi)
Temperature: -40 to 120°C with standard Buna N seals
Spring Return Option: Returns clockwise
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No position restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>See page <a title="4.990.2" href="https://www.savery.co.uk/products/view/4-990-2">4.990.2</a> for operator handles/knobs installation;See page <a title="4.990.1" href="https://www.savery.co.uk/products/view/4-990-1">4.990.1</a> for lock-down bracket installation.
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Lock-Down Bracket Kit: Part Number 5399000
HYDRAFORCE.com®
</div>
</div>
<div class="product-related"> </div>

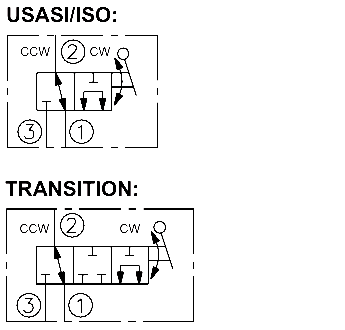

4-774-1-symbols

4-774-1-image-dimensions

4-774-1-main-image

4-774-1-symbols-graphs-image

A manually-operated three-way, two-position directional valve with adaptability to a variety of adjustment operators (ordered separately).

MR10-37A (MR10-37A)

<div>
<h3>Product Operation</h3>
Three positions: centered, 45° counterclockwise, and 45° clockwise. In the center
position all ports are closed. In the 45° counterclockwise from center position, ports ➁ and ➂ are open while port ➀ is closed. In the 45° clockwise from center position, ports ➀ and ➁ are open while port ➂ is closed. All ports are closed in transition.
</div>
<div>
<h3>Product Features</h3>
• Three-position detent, friction lock (with detented neutral), or spring return operators may be ordered separately.
• May be fully pressurized at all ports.
• Optional lock-down bracket.
• Heavy-duty construction.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Max. Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with standard Buna N seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No position restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>See page <a title="4.990.2" href="https://www.savery.co.uk/products/view/4-990-2">4.990.2</a> for operator handles/knobs installation;See page <a title="4.990.1" href="https://www.savery.co.uk/products/view/4-990-1">4.990.1</a> for lock-down bracket installation.
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Lock-Down Bracket Kit: Part Number 5399000
HYDRAFORCE.com®
</div>

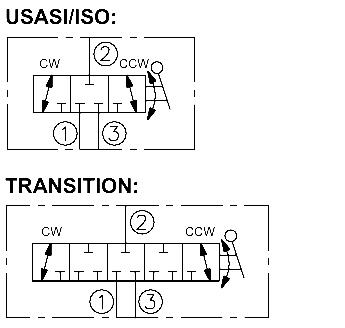

4-782-1-symbols

4-782-1-image-dimensions

4-782-1-main-image

4-782-1-symbols-graphs-image

Manually-operated three-way, three-position directional valve, with adaptability to a variety of adjustment operators (ordered separately), in a variety of spool configurations.

MR10-37B (MR10-37B)

<div>
<h3>Product Operation</h3>
Three positions: centered, 45° counterclockwise, and 45° clockwise. In the center
position all ports are open. In the 45° counterclockwise from center position, ports ➁ and ➂ are open while port ➀ is closed. In the 45° clockwise from center position, ports ➀ and ➁ are open while port ➂ is closed. All ports are partially open in transition.
</div>
<div>
<h3>Product Features</h3>
• Three-position detent, friction lock (with detented neutral), or spring return operators may be ordered separately.
• May be fully pressurized at all ports.
• Optional lock-down bracket.
• Heavy-duty construction.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Max. Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with standard Buna N seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No position restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>See page <a title="4.990.2" href="https://www.savery.co.uk/products/view/4-990-2">4.990.2</a> for operator handles/knobs installation;See page <a title="4.990.1" href="https://www.savery.co.uk/products/view/4-990-1">4.990.1</a> for lock-down bracket installation.
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Lock-Down Bracket Kit: Part Number 5399000
HYDRAFORCE.com®
</div>

4-792-1-symbols

4-792-1-image-dimensions

4-792-1-main-image

4-792-1-symbols-graphs-image
