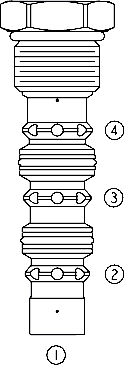

HS52-43 Low Side (Hot Oil) Shuttle, (HS52-43)

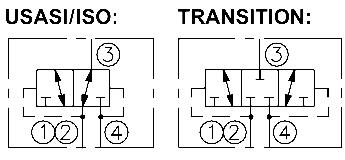

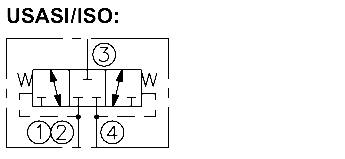

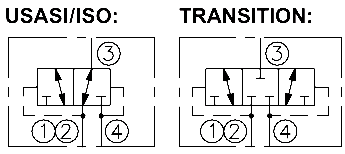

A spring centered, spool-type, closed in neutral, 2-position, 3-way hot oil shuttle valve, which may be used on hydrostatic transmissions to direct charge pump oil to a heat exchanger or to tank.
Product Operation
With internal piloting at port ➀, ➁ or ➃, the HS52-43 will direct oil from the port opposite of the piloted port to port ➂, thus removing oil from the low-pressure side for cooling or fi ltration purposes. The valve has a spring-centered spool, and is closed
in neutral position.
Product Features
• Hardened parts for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 345 bar (5000 psi) when used in steel body

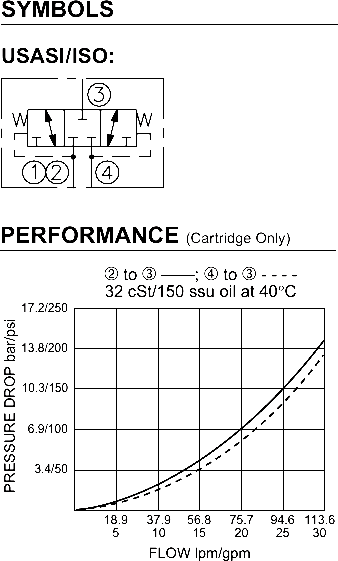

Flow Rate: See Performance Chart
Bias Spring Value: 4.1 bar (60 psi)
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. when shifted, and984 cc/minute (60 cu. in./minute) max. in neutral position at 207 bar (3000 psi)
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

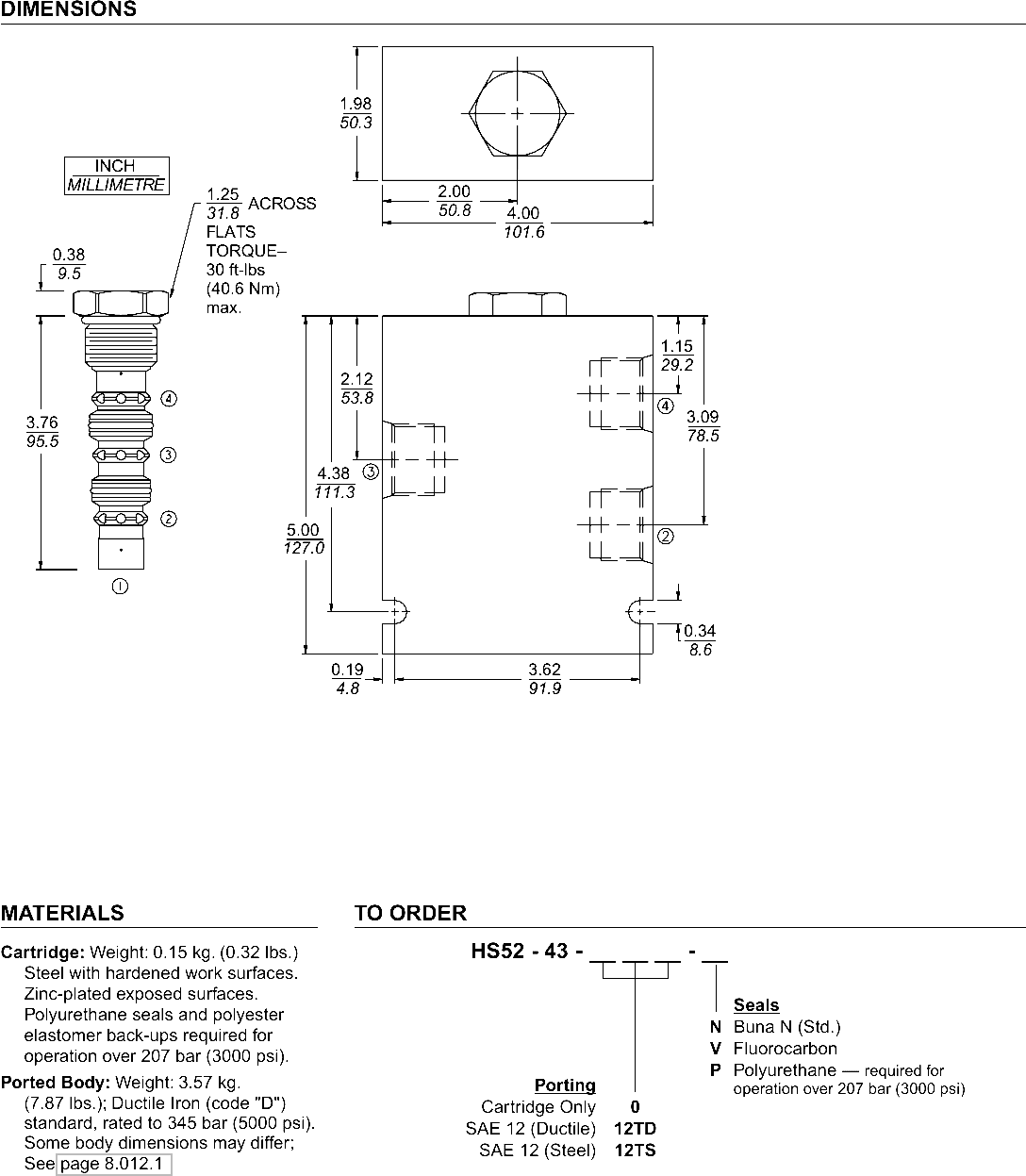

Cavity: VC12-4; See page 9.112.1
Cavity Tool: CT12-4XX; See page 8.600.1
Seal Kit: SK52-4x-TB, See page 8.650.1
