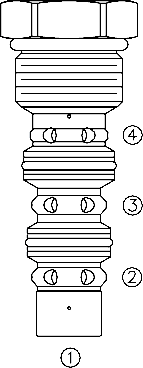

HS50-43 Low Side (Hot Oil) Shuttle, (HS50-43)
A spring-centered, spool-type, closed-in-neutral, 2-position, 3-way hot oil shuttle valve, which may be used on hydrostatic transmissions to direct charge pump oil to a heat exchanger or to tank.
Product Operation
With internal piloting at port ➀, ➁ or ➃, the HS50-43 will direct oil from the port op-posite of the piloted port to port ➂, thus removing oil from the low-pressure side for cooling or fi ltration purposes. The valve has a spring-centered spool, and is closed in
neutral position.
Product Features
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 345 bar (5000 psi) when used in steel body

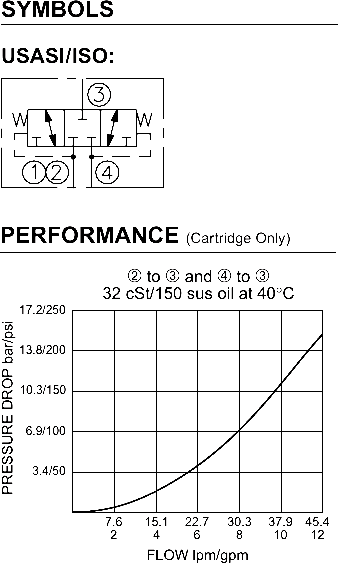

Flow Rate: See Performance Chart
Bias Spring Value: 4.1 bar (60 psi)
Internal Leakage: 541 ml/minute (33 cu. in./minute) max. at 345 bar (5000 psi)
Temperature: -40 to 120°C with standard polyurethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

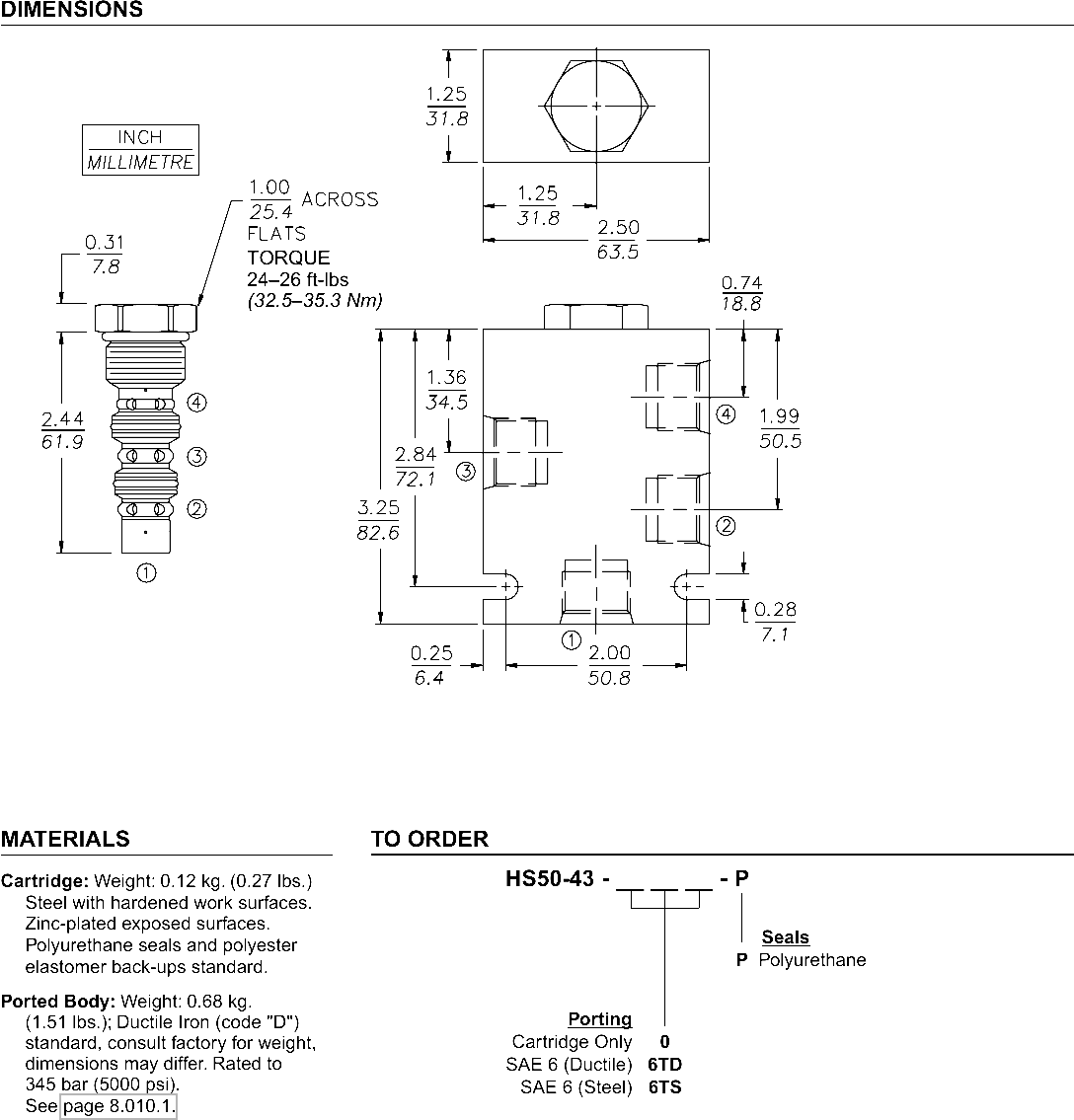

Cavity: VC10-4; See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMM, See page 8.650.1
