BV10-40 Brake Release Valve (BV10-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In neutral, the BV10-40 allows flow from ➁ to ➂. When the pressure differential between the ➀ and ➃ ports exceeds approximately 5.5 bar (80 psi), the spool has moved far enough to close ➁ to ➂ flow, while opening the higher pressure of ➀ or ➃ to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi) ➁ to ➂ (shifted)
Differential Pressure Required (➀ &gt; ➃, ➃ &gt; ➀) to Shift to Close ➁ to ➂ / Open ➀ or ➃ to ➁: 5.5 bar (80 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-TBT; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

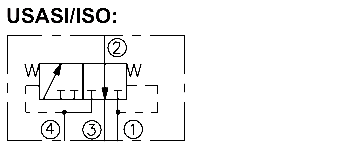

4-750-1-symbols

4-750-1-image-dimensions

4-750-1-main-image

4-750-1-symbols-graphs-image

A screw-in, cartridge-style, spool-type, hydraulic directional valve which operates by pressure-to-shift spring return. It is normally used to release a spring-applied brake whenever hydraulic power is directed to move a load.



BV10-42 Brake Release Valve, 2-Position (BV10-42)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In neutral, the BV10-42 allows flow from ➁ to ➂. When the pressure differential between the ➀ and ➃ ports exceeds approximately 5.5 bar (80 psi), the spool has moved far enough to close ➁ to ➂ flow, while opening the higher pressure of ➃ to ➁
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi) ➁ to ➂ (shifted)
Differential Pressure Required (➃ &gt; ➀) to Shift to Close ➁ to ➂ / Open ➃ to ➁: 5.5 bar (80 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-TBT; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
<div class="product-related"> </div>

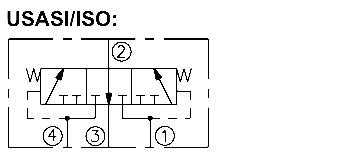

4-758-1-symbols

4-758-1-image-dimensions

4-758-1-main-image

4-758-1-symbols-graphs-image

A screw-in, cartridge-style, spool-type, hydraulic directional valve which operates by pressure-to-shift spring return. It is normally used to release a spring-applied brake whenever hydraulic power is directed to move a load.
