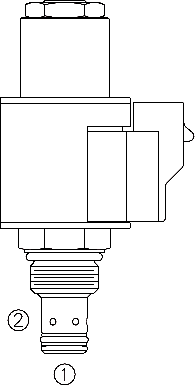

SV08-28 (SV08-28)
A solenoid-operated, 2-way, normally closed, direct-acting, poppet-type, bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.
Product Operation
When de-energized, the SV08-28 blocks flow in both directions. When energized, the valve’s poppet opens on its seat, allowing flow from 2 to 1 or 1 to 2.Operation of Manual Override Option: To override, push and hold override button.
Product Features
• Continuous-duty rated coil.
• Optional coil voltages and terminations.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Hardened seat for long life and low leakage.
• Manual override option.
• Industry common cavity.
Product Ratings
Operating Pressure: 207 bar (3000 psi)
Flow: 11.4 lpm/ 3.0 gpm
Internal Leakage: 5 drops/minute maximum at 207 bar (3000 psi)
Operating Temperature: With Buna N or Polyurethane seals: –25 to 100°CWith Fluorocarbon seals: –15 to 100°C
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Response Time: First indication of change of state with 100% voltage supplied at 80% of nominal flow rating:
Energized: 50 msec.; De-energized: 16 msec.
Initial Coil Current Draw at 20°C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified). E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: If using an orifice disc with this product, an offset orifice disc is required; See page 9.020.1
Cavity: VC08-2; See page 9.108.1
Cavity Tool: CT08-2XX; See page 8.600.1
Seal Kit: SK08-2X-M; See page 8.650.1
Coil Nut: Part No. 7004400; For E-coils manufactured prior to 1-1-04, see page 3.400.1 for coil nut info.

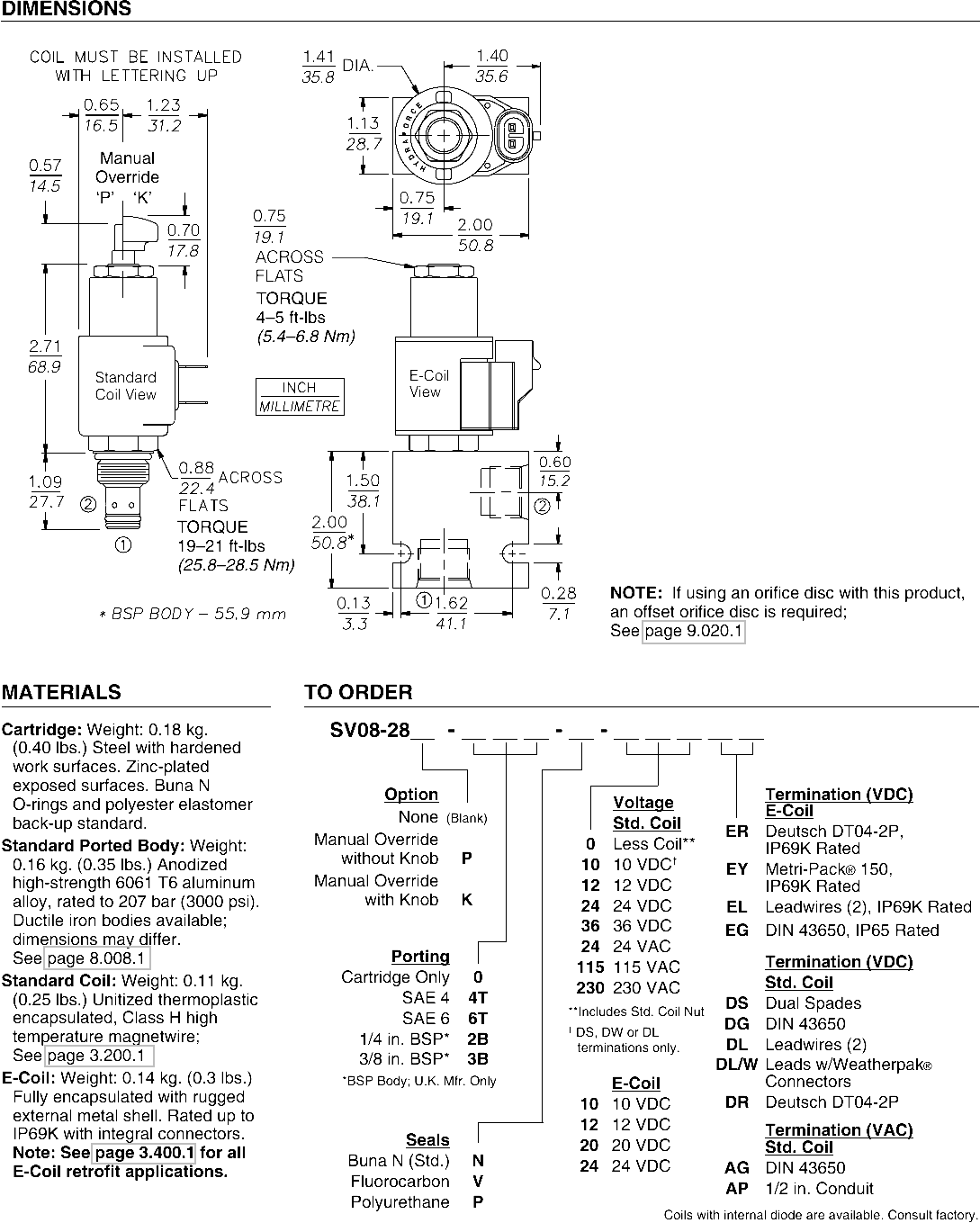

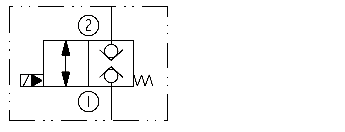

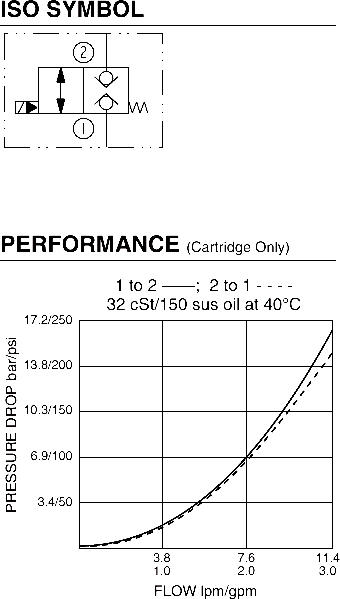

ISO SYMBOL
1.089.1
