SVCV12-20 Poppet, 2-Way, Normally Closed . . . (SVCV12-20)
A solenoid-operated, two-way, pilot-operated, poppet-type, normally closed, screw-in hydraulic cartridge valve with outlet flow check, designed for low leakage in load holding applications.
Product Operation
When de-energized, the SVCV12-20 blocks flow from 2 to 1 and from 1 to 2.
When energized, the cartridge’s poppet lifts to open the 2 to 1 flow path, while continuing to block flow from 1 to 2.

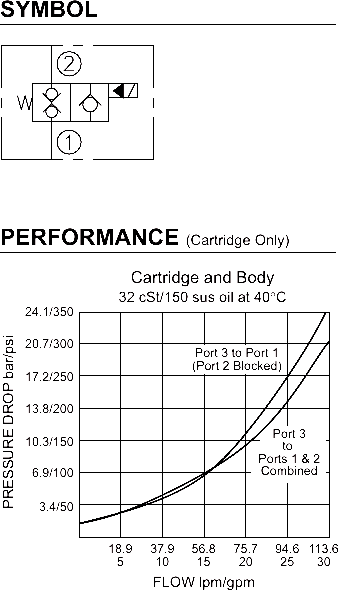

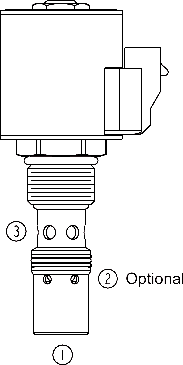

The SVCV12-20 is designed to fi t into the VC12-3 cavity with the normal inlet at cavity port 3 (valve port 2), the outlet at cavity port 1 (valve port 1), and cavity port 2 blocked. The pressure drop will be substantially higher if cavity port 2 is selected as an alternate outlet port. At flows greater than 56.8 lpm (15 gpm) pressure drop will be lower if the optional port 2 is connected to port 1.
Product Features
• Continuous-duty rated coil.
• Hardened seat for long life and low leakage.
• Optional coil voltages and terminations.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Cost effective cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Rated Flow: 113.6 lpm (30 gpm)
Maximum Internal Leakage: 2 to 1: 5 drops/minute at 207 bar (3000 psi); 1 to 2: 5 drops/minute at 207 bar (3000 psi)
Temperature: -40 to 100°C (-40° to 212°F) with standard Buna N seals-26 to 204°C (-15°F to 400°F) with Fluorocarbon seals-54 to 107°C (-65°F to 225°F) with Polyurethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard Coil: 1.67 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectifi ed); E-Coil: 1.7 amps at 12 VDC; 0.8 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

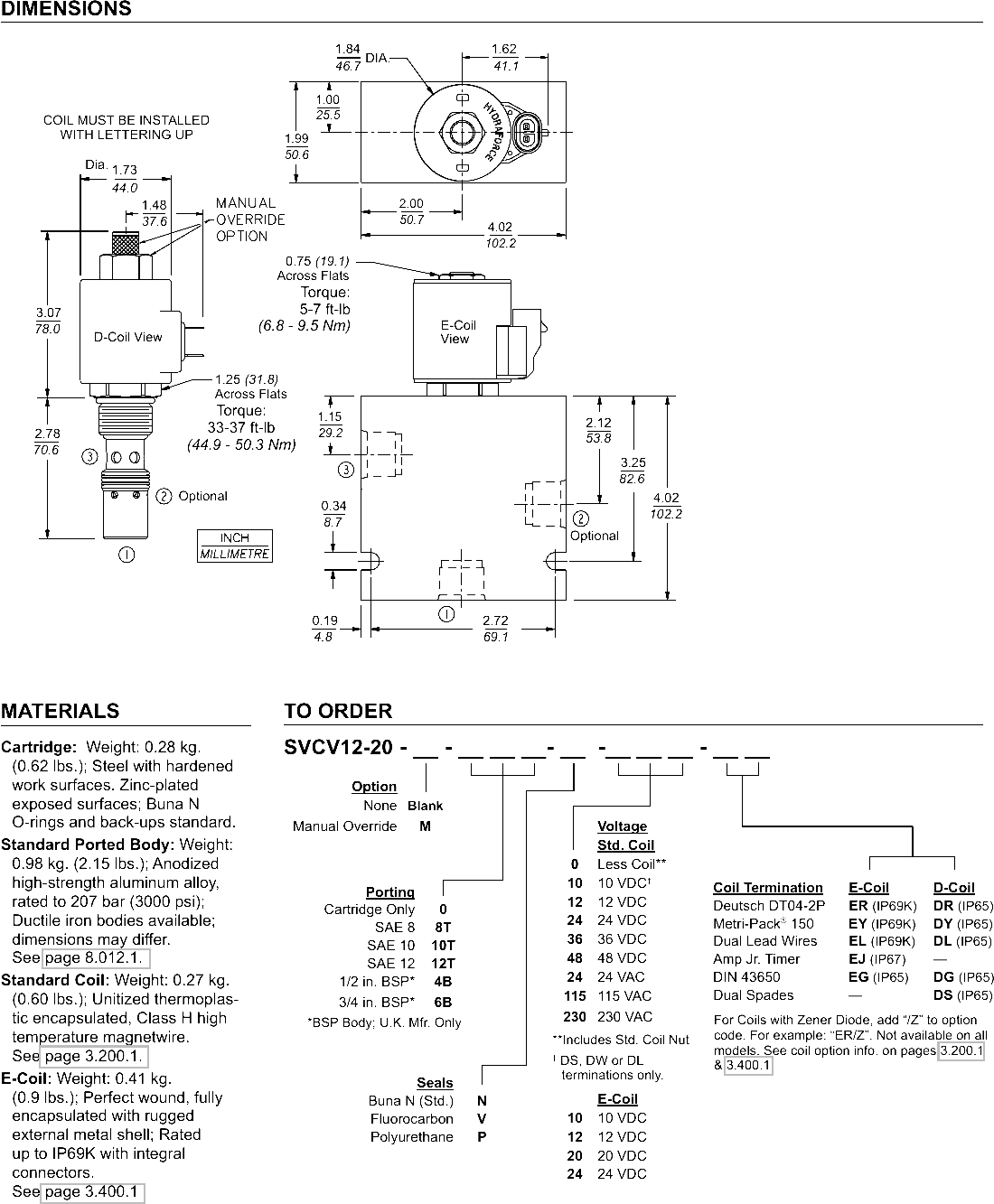

Cavity: VC12-3; See page 9.112.1
Cavity Tool: CT12-3XX; See page 8.600.1
Seal Kit: SK12-2X-M; See page 8.650.1
Coil Nut: Part No. 7004400
