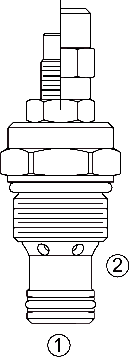

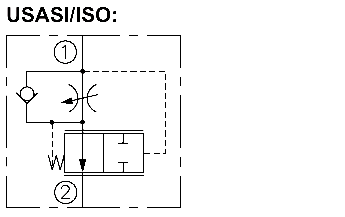

FR50-23 Regulator, Pressure-Compensated, (FR50-23)
A screw-in, cartridge-style, adjustable, pressure-compensated, restrictive-type hydraulic flow regulating valve.
Product Operation
The FR50-23 maintains a constant flow rate out of ➁ regardless of load pressure changes in the circuit downstream of ➁ or upstream of ➀The regulated flow increases from closed to fully open with counter-clockwise rotation
of the adjustment screw. The valve will maintain the set flow regardless of pressure
variations on the regulated or inlet port. Reverse flow from ➁ to ➀ bypasses the control orifice.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Cost-effective cavity.
Product Ratings
Operating Pressure: 345 bar (5000 psi)
Flow Rating: 0.4–11.5 lpm (0.1–3.0 gpm)
Flow Maintenance: ±10% through full pressure range
Internal Leakage ➀ to ➁
: 30 ml/minute (1.8 cu. in./minute) at 345 bar (5000 psi)
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-2; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2X-M; See page 8.650.1

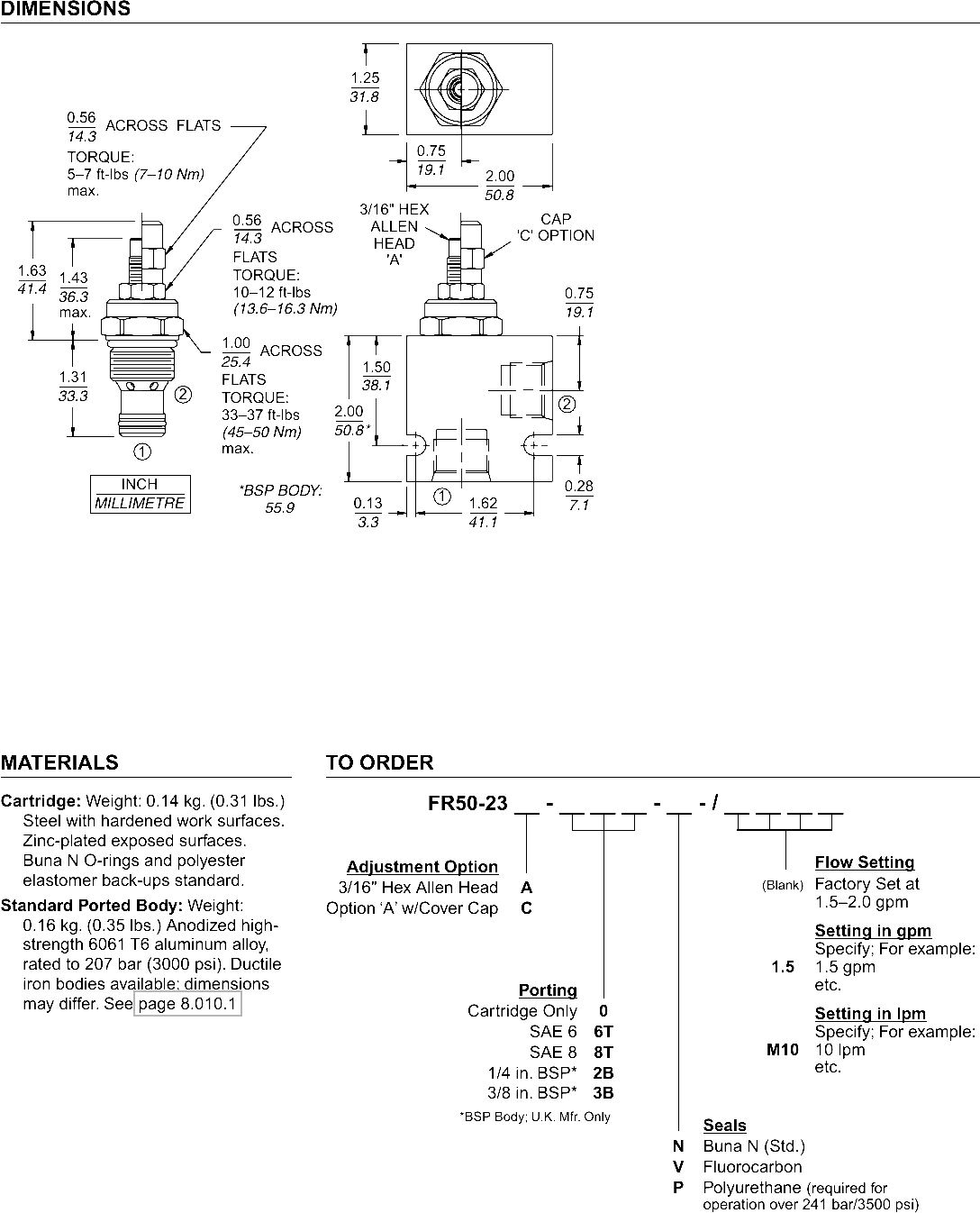

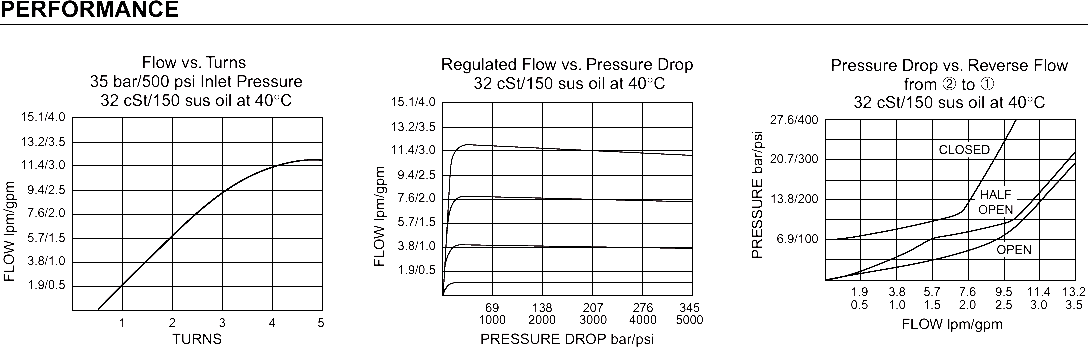

HYDRAFORCE.com®1213.2/3.515.1/4.011.4/3.05.7/1.57.6/2.09.4/2.53.8/1.01.9/0.5245TURNSFLOW lpm/gpm13Flow vs. Turns 35 bar/500 psi Inlet Pressure32 cSt/150 sus oil at 40nCRegulated Flow vs. Pressure Drop 32 cSt/150 sus oil at 40nC691000PRESSURE DROP bar/psi207300027640003455000138200013.2/3.515.1/4.011.4/3.05.7/1.57.6/2.09.4/2.53.8/1.01.9/0.5FLOW lpm/gpmPressure Drop vs. Reverse Flowfrom to ~32 cSt/150 sus oil at 40nC27.6/40020.7/30013.8/2006.9/100PRESSURE bar/psi5.71.53.81.01.90.5FLOW lpm/gpm11.43.013.23.59.52.57.62.0CLOSEDOPENHALFOPEN
