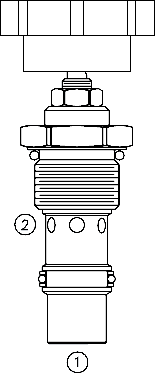

FR12-23 Regulator, Pressure-Compensated (FR12-23)
A screw-in, cartridge-style, adjustable orifice, pressure-compensated, manually-oper-ated hydraulic flow regulating valve (restrictive type).
Product Operation
The FR12-23 maintains a constant flow rate out of ➁ regardless of load pressure changes in the circuit downstream of ➁ or upstream of ➀The regulated flow increases from closed to fully open with counter-clockwise rotation
of the adjustment screw. The valve will maintain the set flow regardless of pressure
variations on the regulated or inlet port. Reverse flow (➁ to ➀) bypasses the control orifice.
Product Features
• Hardened parts for long life.
• Quiet, modulated response.
• Cost-effective cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Flow Settings: 0–77 lpm (0–20 gpm)
Internal Leakage (➀ to ➁)
: 0.12 lpm (0.03 gpm) max., fully closed
Adjustment Torque Required: 1.7 Nm (15 in.-lbs.) at 207 bar (3000 psi)
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC12-2, Variation “B”; See page 9.112.1
Cavity Tool: CT12-2XX; See page 8.600.1
Seal Kit: SK12-2X-M; See page 8.650.1

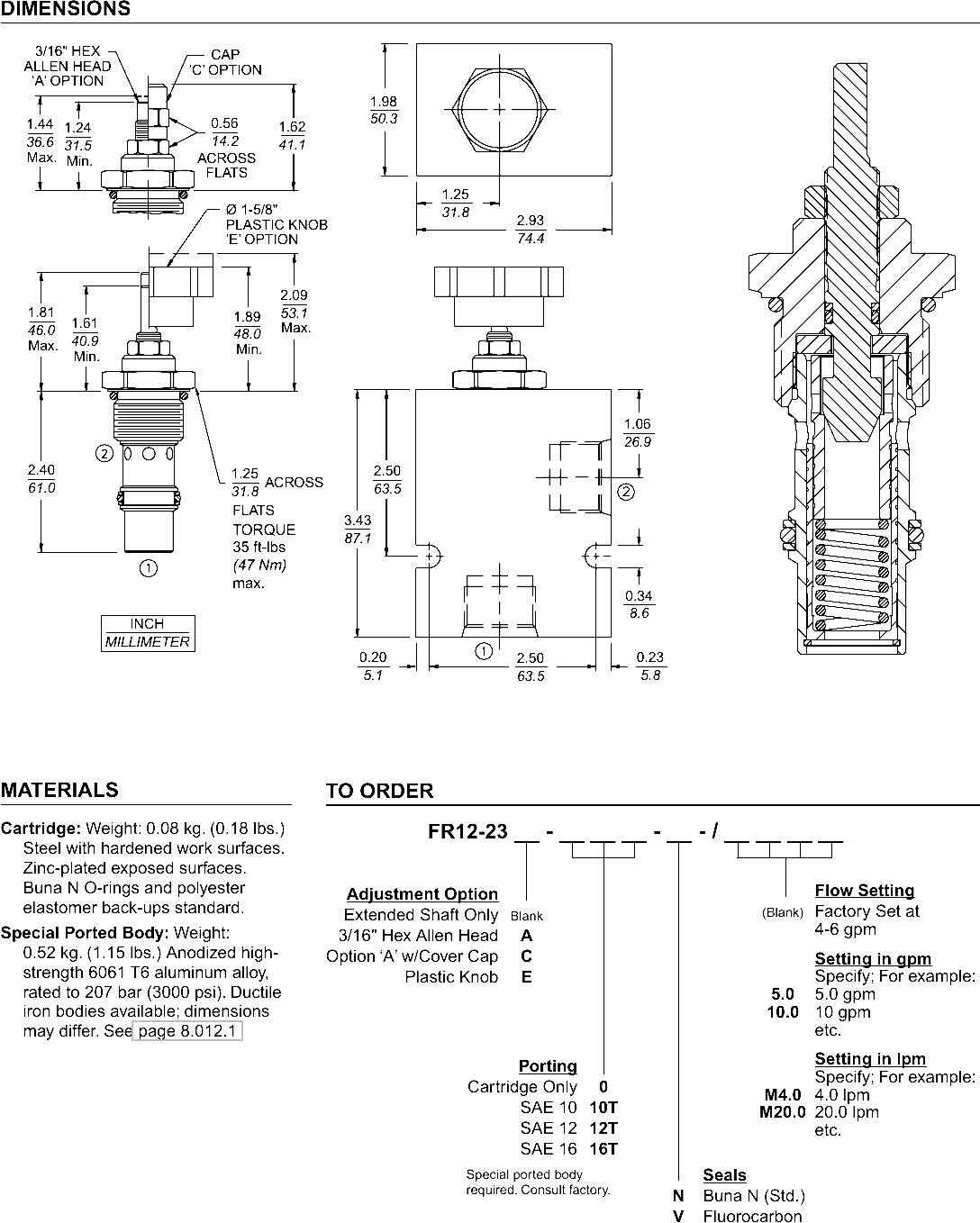

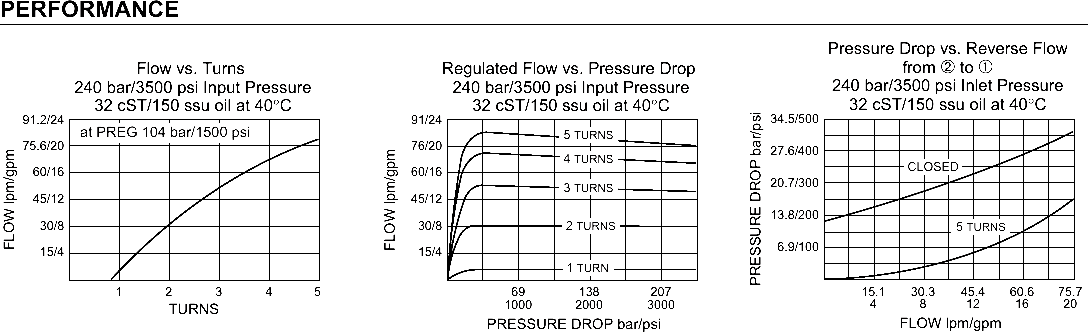

Knob Kit: Part Number 6113160; Converts from shaft-only version to “E” versionRegulated Flow vs. Pressure Drop 240 bar/3500 psi Input Pressure32 cST/150 ssu oil at 40°C76/2091/2460/1645/1230/815/4FLOW lpm/gpm691000PRESSURE DROP bar/psi207300013820001 TURN2 TURNS3 TURNS4 TURNS5 TURNSPressure Drop vs. Reverse Flowfrom ➁ to ➀240 bar/3500 psi Inlet Pressure32 cST/150 ssu oil at 40°C34.5/50027.6/40020.7/30013.8/2006.9/100PRESSURE DROP bar/psi15.14FLOW lpm/gpm60.61675.72045.41230.38CLOSED5 TURNS
