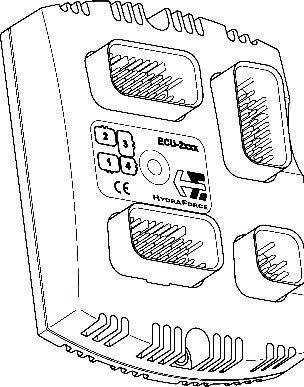

ECU-2415 Machine Controller (ECU-2415)

The ECU-2415 Machine Control is a general-purpose programmable controller designed to withstand the real-world environmental demands of the off-highway mobile market.

The ECU-2415 can be used as a stand-alone controller, or for integrating into a CAN network with other devices.Input confi guration can be set for up to 39 inputs consisting of Digital, Pulse, Current Measuring Feedback and Analog inputs. Output confi guration can be set for a total of 24 outputs consisting of up to 24 PWM or digital high-side drivers. All outputs are capable of driving up to 3.0 Amps.Note: Refer to Input/Output table below for pin confi guration capability. Refer to ECU-2415 Technical Reference Manual for specifi c data and ratings of individual inputs and outputs.

Product Features

• Advanced electronic design for reliability and accuracy.• Reliable operation in real-world temperature conditions from -40˚ to +70˚C.• Fully-sealed, compact cast-aluminum housing.• Inputs and Outputs are protected against shorts.• Outputs have diagnostic capability.• No external cooling or heat dissipation required.
• Software developed with CoDeSys. 2.3 Programming Tool.

Product Ratings

POWER REQUIREMENTS:
Operating Voltage: 9 to 30 VDC
Idle Power Consumption: approximately 1 Watt
Operating Current: 10 Amp Max. continuous current, with full external load.
Over-Voltage: 34 VDC maximum
REFERENCE VOLTAGES:
(1) 5 VDC Potentiometer Reference: 5 mA DC
COMMUNICATION:
(2) ISO CAN 2.0B Interfaces: CANopen, J1939, or user-programmable.
PROCESSING and MEMORY:
Microprocessor: 16-bit at 40 MHz;
Flash ROM: 254 Kbyte
SRAM: 256 Kbyte;
EEPROM: 6200 bytes
ENVIRONMENTAL RATINGS:
Operating Temperature: –40°C to+70°C;
Storage Temperature: –50°C to +85°C
Water Resistance: meets IP67 standards (per IEC 660529)
Humidity Tolerance: Rel. Humidity > 90% from +25°C to +55°C (per IEC 60068-2-30 Test Db)
Radiated Immunity: 20 to 2000 MHz at 30 V/m (per 2005/83/EC Annex IX)
Vibration: 3.5Grms random from 10 to 500 Hz (per IEC 60068-2-64 Test Fh)
Shock: 50g peak (per IEC 60068-2-27 and -29 Tests Ea and Eb)
Corrosion: 50 g/l, NaCl for 24 hours at +35°C (per ISO 9227)

ECU-2820 Machine Controller (ECU-2820)

Read More

ECU-2415 Machine Controller (ECU-2415)

Read More

ECU-2032 Machine Controller (ECU-2032)

Read More

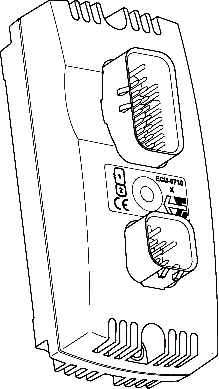

ECU-0710 Machine Controller (ECU-0710)
