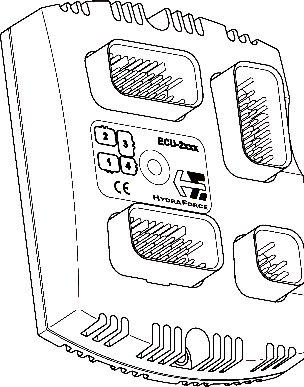

ECU-0710 Machine Controller (ECU-0710)

The ECU-0710 can be used as a stand-alone controller, or for integrating into a CAN network with other devices.Input configuration can be set for up to 20 inputs consisting of Digital, Pulse, Current Measuring Feedback and Analog inputs. Output configuration can be set for a total of 7 outputs consisting of up to 6 PWM or digital high-side drivers, and a single low-side driver. All outputs are capable of driving up to 3.0 Amps.NOTE: Refer to Input/Output table below for pin configuration capability. Refer to ECU-0710 Technical Reference Manual for specific data and ratings of individual inputs and outputs. Max. I/O Digital In Digital In Pulse Analog Current PWM Digital Out Digital Out Count (SWG) (SWB) Input Input Feedback (Source) (Source) (Sink) 6 X X X 2 X X 2 X X 3 X 6 X X 1 X X 20 2 15 4 6 3 6 6 1



Product Features

• Advanced electronic design for reliability and accuracy.• Reliable operation in real-world temperature conditions from -40°C to +70°C.• Fully-sealed, compact cast-aluminum housing.• Inputs and Outputs are protected against shorts.• Outputs have diagnostic capability.• No external cooling or heat dissipation required.

• Software developed with
CoDeSys. 2.3 Programming Tool.
RATINGSPOWER REQUIREMENTS:
Operating Voltage: 9 to 30 VDC
Idle Power Consumption: approximately 1 Watt
Operating Current: 10 Amp Max. continuous current, with full external load.
Over-Voltage: 34 VDC maximum
REFERENCE VOLTAGES:
(1) 5 VDC Potentiometer Reference: 5 mA DC
COMMUNICATION:
(2) ISO CAN 2.0B Interfaces: CANopen, J1939, or user-programmable.
PROCESSING and MEMORY:
Microprocessor: 16-bit at 40 MHz
Flash ROM: 254 Kbyte
SRAM: 256 Kbyte
EEPROM: 6200 bytes
ENVIRONMENTAL RATINGS:
Operating Temperature: –40°C to+70°C
Storage Temperature: –50°C to +85°C
Water Resistance: meets IP67 standards (per IEC 660529)
Humidity Tolerance: Rel. Humidity > 90% from +25°C to +55°C (per IEC 60068-2-30 Test Db)
Radiated Immunity: 20 to 2000 MHz at 30 V/m (per 2005/83/EC Annex IX)
Vibration: 3.5Grms random from 10 to 500 Hz (per IEC 60068-2-64 Test Fh)
Shock: 50g peak (per IEC 60068-2-27 and -29 Tests Ea and Eb)
Corrosion: 50 g/l, NaCl for 24 hours at +35°C (per ISO 9227)
HYDRAFORCE.com®
Note: The ECU-0710 has inputs and outputs that can be configured in multiple ways. For more information, consult the ECU-0710 Technical Reference Manual.
