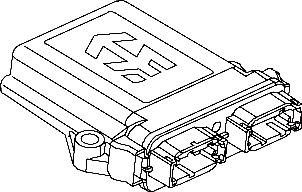

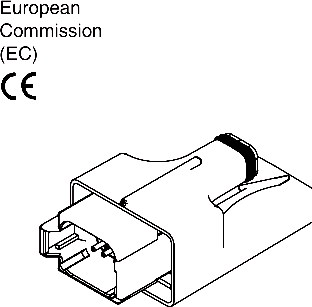

EVDR5 Five-Valve Driver, Universal Input w/J1939 (EVDR5)

PWM input signals can be from a joystick, a PLC or Engine Control Module. Analog inputs and multiple switched inputs are optional to suit a range of applications. The CAN J1939 communications port, along with the USB-to-CAN adapter, allow the EVDR5 setup parameters to be configured using a PC. Also, the CAN port can be set up to provide communications and control with other devices on the network.This versatile, multi-function controller is suitable for a wide range of heavy duty industrial, marine, and mobile off-highway equipment applications, such as transmission controls, vehicle traction controls, and drive-by-wire control systems.

Product Features

• Microprocessor based control (standard software or OEM software on request).• Standard hardware and software adapts to many applications including interface to a joystick PWM command or proportional signals.• Independent outputs for four proportional valves (0…2A) and 1on/off valve (< 2 A).• Interfaces to up to 2 PWM signal inputs (interface to a 2 axis joystick).• Up to four voltage or current analog inputs: 0-5V, 0-10V, 4-20 mA or 0-20 mA.• Digital inputs for interface to switches, etc., (up to 6).• Robust 8…36VDC power supply interface with reverse polarity protection.• Two, +5V reference voltage to power input devices.• Thermal overload and overvoltage protection provided.• Rugged IP67-rated packaging with IP69K-rated plug-in connections.• Operational from -40 to 85°C (-40 to 185°F).• CAN for networking capability, user configuration and diagnostics.

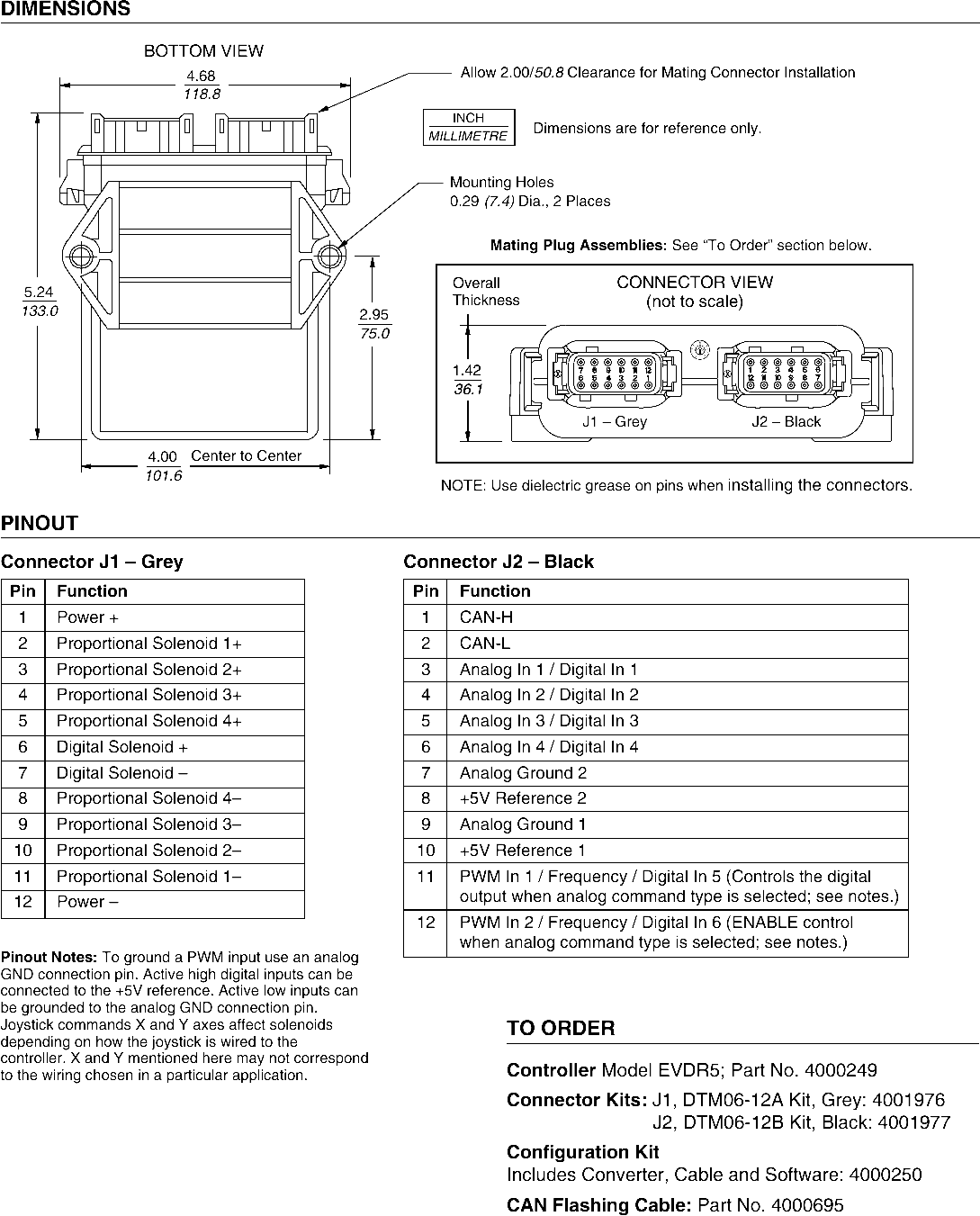

Product Ratings

POWER REQUIREMENTS:Power Required: 8 to 36 VDCOperating Current: 6 amp maximum loadNon-Destructive Voltage: –32 to +36 VDC
SENSOR POWER SUPPLY:Two, 5V Sensor Supplies: 50 mA DC each
PROCESSING and MEMORY:Motorola Microprocessor: MC56F8346Flash ROM: 128 KByteSRAM: 4 KByteEEPROM: 8 KBytes
All input and output characteristics are configurable
with ACP (Application Configuration Programmer).
INPUTS:PWM/Frequency/Digital: 2 inputs5 to 12 VDC; 0 to 100% DC; 50 Hz to 10 KHz; or Digital Active High/Low InputAnalog/Digital: 4 inputs0 to 20 mA; 4 to 20 mA with digital inputs active low, 0 to 5V or 0 to 10V with digital inputs active high
OUTPUTS:On/Off High Side Driver (2A): 1PWM Driver, High Side (2A): 4; PWM Drivers can be configured for On/Off or ProportionalCommunications: CAN J1939
ENVIRONMENTAL RATINGS:Operating Temperature Range: –40 to 85°C (–40 to 185°F)Storage Temperature Range: –50 to 125°C (–58 to 257°F)Humidity Tolerance: 115% of nominal system voltage at 90% relative humidity over operating temperature rangeSalt Spray Tolerance: 115% of nominal system voltage with 5% salt spray for 48 hours at 35°C (95°F)Chemical Splash Immunity: Diesel Fuel, engine/machine oil, SAE J1455 chemical agentsVibration (Shock-isolated components): 7.4 Grms random vibration from 24 Hz to 2 KHz in three orthagonal planesMoisture Leakage (sealant pressure tolerance): ±0.35 bar (5 psi) against water and water vapor; immersion resistant in 3 ft. (1 meter) of water; meets IP67 standards.Radiated Immunity: 10 V/M; 80 MHz to 1.0 GHzElectrostatic Environment: Zero damage during exposure to electrostatic painting process (IEC 61000-4-2)
Materials:Housing: Thermoplastic with silicone elastomer seals.Contacts: Tin-plated copper alloy.
