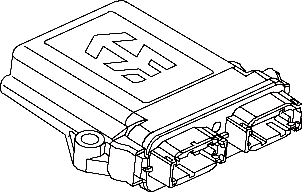

EVDR7 Multi-I/O Controller and/or Slave Module (EVDR7)
The EVDR7 multi-I/O controller provides precise, repeatable control of one propor-tional solenoid valve coil and one on/off solenoid valve coil.
Controller input signals can be resistive temperature sensor, frequency, PWM, digital, voltage, or current. Analog inputs and multiple switched inputs are optional to suit a range of machine applications. The CAN J1939 communications port, along with the USB-to-CAN adapter, allows the EVDR7 setup parameters to be configured using a PC. Also, the CAN port can be set up to provide communications with other devices on the network.This multi-input controller is suitable for a wide range of heavy duty industrial, marine, and mobile off-highway equipment applications.
Product Features
• Microprocessor based control (standard software or OEM software on request).• Standard hardware and software adapts to many applications.• Independent outputs for one proportional valve (0 to 2A) and one on/off valve (2A).• Up to four universal analog or digital inputs: voltage, current, resistive, PWM, frequency, or digital.• Digital input (one) for interface to switch, etc.• Priority control sensor, selectable.• Robust 8-60 VDC power supply inter-face with reverse polarity protection.• Four, +5V reference voltage-to-power input devices (100mA w/output to common ground).• Thermal overload and overvoltage protection provided.• Rugged IP67-rated packaging with IP69K-rated plug-in connections.• Operational from -40 to 85°C (-40 to 185°F).• CAN for networking capability, user configuration and diagnostics.
HYDRAFORCE.com®

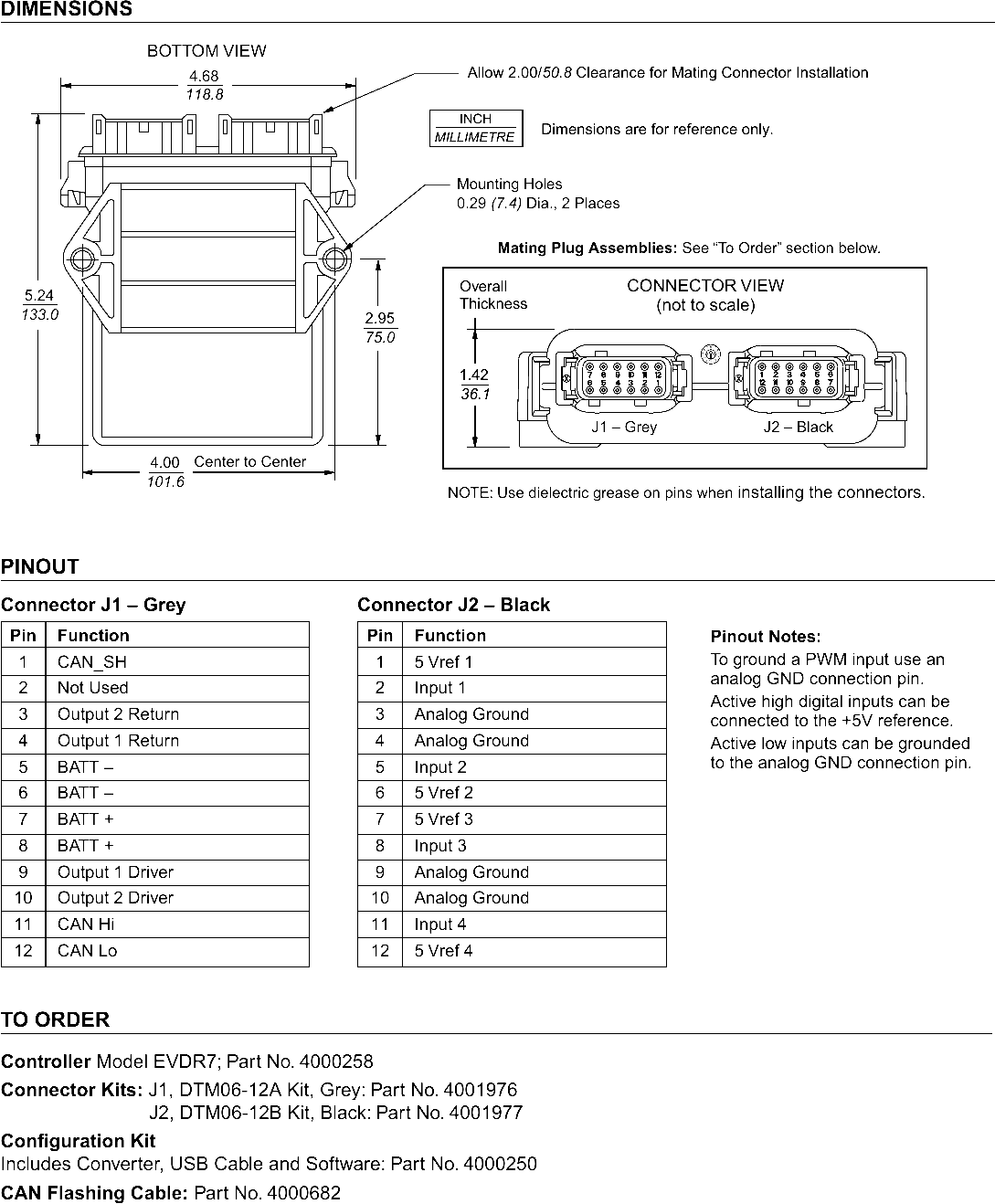

Product Ratings
POWER REQUIREMENTS:Power Required: 8 to 60 VDC; Operating Current: 6 amp maximum loadNon-Destructive Voltage: –32 to +80 VDC
SENSOR POWER SUPPLY:Four, 5V Sensor Supplies: 100 mA DC each
PROCESSING and MEMORY:Motorola Microprocessor: MC56F8346; Flash ROM: 128 KByteSRAM: 4 KByte; EEPROM: 8 KBytes
All input and output characteristics are confi gurable with ACP (Application Confi guration Programmer).
INPUTS: Four universal inputs can be chosen in the following ranges:• Voltage, current, or resistive analog inputs:0-1V, 0-2.5V, 0-5V, 0-10V, 0-20 mA, 4-20 mA, or 30K to 300K ohms.• PWM, frequency, or digital inputs:PWM: Two @ 0-100% D.C., 10 Hz to 1 KHz, or 100 Hz to 10 KHzFrequency: Two ranges, 10 Hz to 1 KHz, or 100 Hz to 10 KHzDigital: Active High
OUTPUTS: Two control outputs:One, On/Off Sinking or Sourcing Driver (2A)One, High side grounded, 0-2000mA confi gurable as: Discrete: On/Off; Current: PWM Closed Loop; Duty Cycle: PWM Open Loop
ENVIRONMENTAL RATINGS:Operating Temp. Range: –40°C to +85°C; Storage Temp. Range: –50°C to 125°CHumidity Tolerance: 115% of nominal system voltage at 90% relative humidity over operating temperature range.Salt Spray Tolerance: 115% of nominal system voltage with 5% salt spray for 48 hours at 35°C.Chemical Splash Immunity: Diesel fuel, engine/machine oil, SAE J1455 chemical agents.Vibration (Shock-isolated components): 7.4 Grms random vibration from 24 Hz to 2 KHz in three orthagonal planes.Moisture Leakage (sealant pressure tolerance): ±0.35 bar (5 psi) against water and water vapor; immersion resistant in 3 ft. (1 meter) of water; meets IP67 standards.
Materials:Housing: Thermoplastic with silicone elastomer seals.Contacts: Tin-plated copper alloy.
3.457.1
