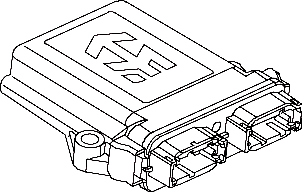

EVDR10 Ten Analog Input Module with J1939 (EVDR10)

The EVDR10 Analog Module measures up to 10 inputs and sends the data over a CAN network.

The 10 inputs can be confi gured for 0 to 5VDC, 0(4) to 20 mA, PWM/Frequency/Counter, and Digital (High). CAN bus communications offer control system networking capabilty and is used for confi guration.This versatile, multi-function module is suitable for a wide range of heavy duty industrial, marine, and mobile off-highway equipment applications, such as transmission controls, vehicle traction controls, and drive-by-wire control systems.

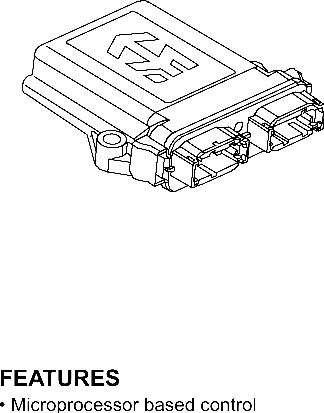

Product Features

• Microprocessor based control (standard software or OEM software on request).• Standard hardware and software adapts to many applications.• Robust 8 to 96VDC power supply interface with reverse polarity protection.• Thermal overload and overvoltage protection provided.• Rugged IP67-rated packaging with IP69K-rated plug-in connections.• Operational from -40 to 85°C (-40 to 185°F).• CAN for networking capability, user confi guration and diagnostics.
H
YDRA
F
ORCE.com®

Product Ratings

POWER REQUIREMENTS:Power Required: 8 to 96 VDCOperating Current: 0.35 amps maximum, typically less than 2WNon-Destructive Voltage: –32 to +96 VDC
PROCESSING and MEMORY:Motorola Microprocessor: DSP56F8346Flash ROM: 128 KByteSRAM: 4 KByteEEPROM: 8 KBytes
All input and output characteristics are confi gurable with ACP (Application Confi guration Programmer).
COMMUNICATION I/O:CAN J1939 — StandardCANopen — Consult Factory
Inputs, 10 confi gurable:
Type Range
Accuracy Voltage 0 to 5 VDC ±7mV Current 0(4) to 20mA ±0.1mA PWM 0 to 100%, 50Hz to 10KHz, 96Vp-p ±2.0% RPM 0 to 100%, 50Hz to 10KHz, 96Vp-p ±0.3% Counter 0 to 96 VDC, 10KHz — Digital 0 to 96 VDC, 10KHz —
ENVIRONMENTAL RATINGS:Operating Temperature Range: –40°C to +85°CStorage Temperature Range: –50°C to 125°CHumidity Tolerance: 115% of nominal system voltage at 90% relative humidity over operating temperature rangeSalt Spray Tolerance: 115% of nominal system voltage with 5% salt spray for 48 hours at 35°CVibration (Shock-isolated components): 7.4 Grms random vibration from 24 Hz to 2 KHz in three orthagonal planesMoisture Leakage (sealant pressure tolerance): ±0.35 bar (5 psi) against water and water vapor; immersion resistant in 3 ft. (1 meter) of water; meets IP67 standards.Radiated Immunity: 10 V/M; 80 MHz to 1.0 GHzElectrostatic Environment: Zero damage during exposure to electrostatic painting process (IEC 61000-4-2)
Materials:Housing: Thermoplastic with silicone elastomer seals.Contacts: Tin-plated copper alloy.

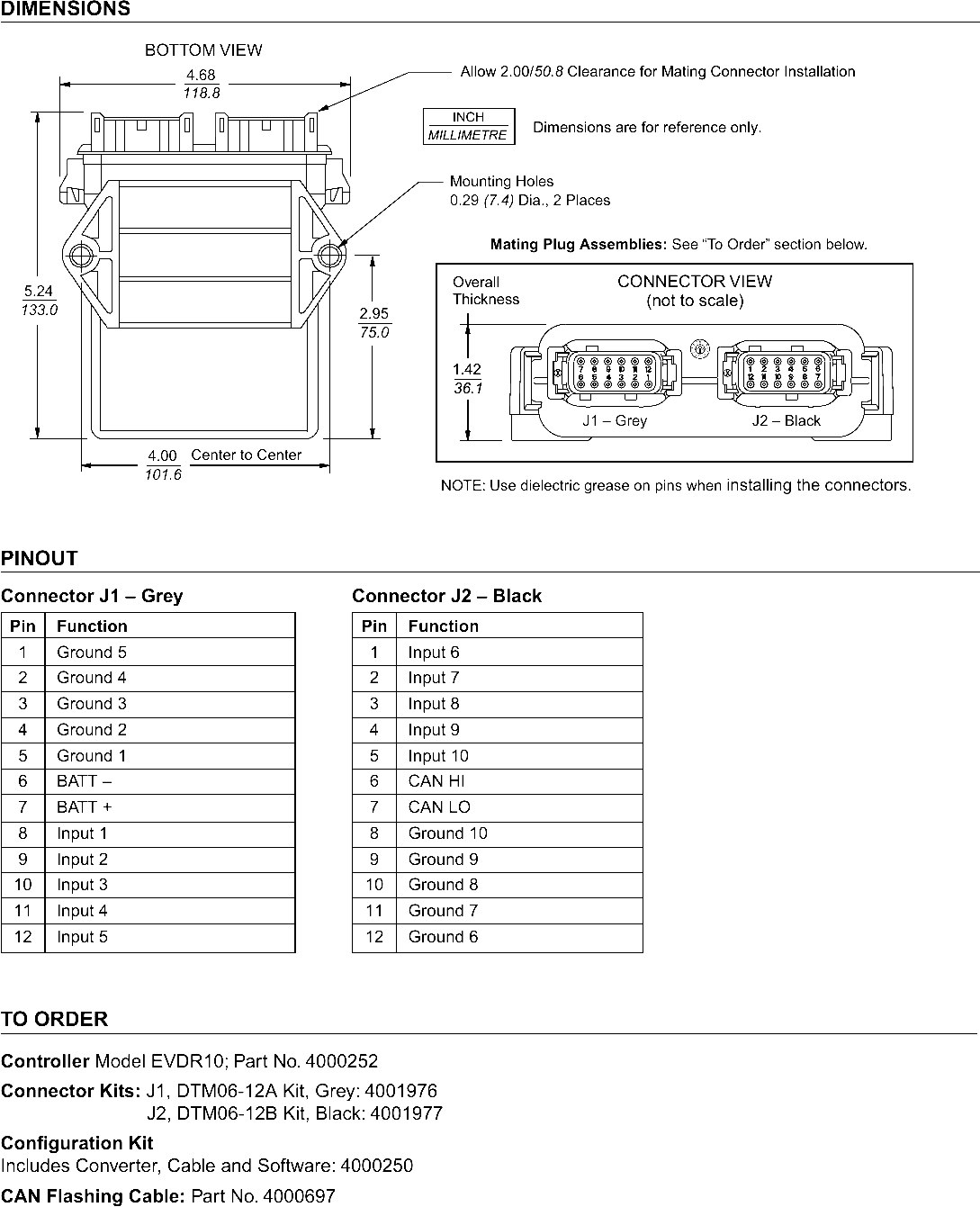

3.460.1
