PFR70-33x-E Proportional Flow Regulator, N.C., (PFR70-33x-E)

<div>
<h3>Product Operation</h3>
This proportional valve/compensator package will regulate flow out of port ➁, regardless of system working pressure. With an increasing current applied to the
solenoid, the PFR70-33x-E will increase output flow.
</div>
<div>
<h3>Product Features</h3>
• Excellent linearity and hysteresis.
• Optional control orifice sizes.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Effi cient wet armature construction.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Internal Leakage: 410 cc/min. (25 cu. in./min.) fully closed at 207 bar (3000 psi) out port ➁
Electrical: 2 standard voltage ratings
<a title="2.401.1" href="https://www.savery.co.uk/products/view/2-401-1">2.401.1</a>
</div>

2-401-1-main-image

2-401-1-image-dimensions

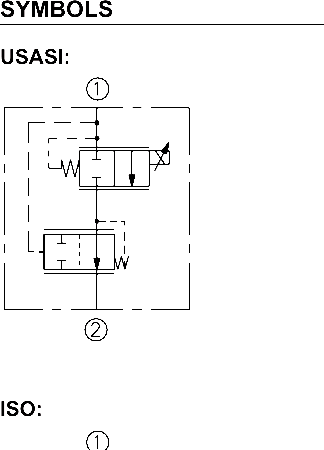

A pressure-compensated electrically-variable two-port flow regulator that is normally closed when de-energized. This combination valve uses a PV70-33x proportional cartridge and an EC10-30 compensator.

PFR70-33x-F Proportional Priority Flow Regulator, (PFR70-33x-F)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
The PFR70-33x-F series will bypass all flow out port ➂ when de-energized at the pressure compensator spring value. When energized, this proportional valve/compensator package will increase and regulate flow out of port ➁, regardless of system working pressure, with an increasing current applied to the solenoid.
</div>
<div>
<h3>Product Features</h3>
• Excellent linearity and hysteresis.
• Optional control orifice sizes.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet armature construction.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Pressure Rise: Pressure at ➀ begins to rise higher than the compensating pressure differential when bypass flow exceeds 26.5 lpm (7 gpm).
Internal Leakage: 410 cc/min. (25 cu. in./min.) fully closed at 207 bar (3000 psi) out port ➁
Electrical: 2 standard voltage ratings
Operation of Manual Override: To Engage: Turn clockwise approximately 1 turn to reach start point. Continue another approximately 5 turns to full shift.To Disengage: Turn counterclockwise approximately 6 turns until positive stop is found.
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>;
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
For 12 volt coils, double the current (amp) values shown.37.9/1041.4600LOAD bar/psiFLOW lpm/gpmPriority Port Flow Rate Loss Under LoadPV70-33B with EC10-40 Typical11 bar/160 psi compensator —5.5 bar/80 psi compensator &#8211; &#8211; -2.8 bar/40 psi compensator • • •82.81200124.11800165.52400206.9300034.1/930.2/822.7/615.1/47.5/226.5/718.9/511.4/33.8/1
Attention Manifold Designers:To obtain these high flow capabilities using proportional flow controls and compensators, optimized cavity drillings are required. Please consult factory.
ELECTRO-PROPORTIONAL VALVES—FLOW CONTROLS
HYDRAFORCE.com®
• Cartridges voltage interchangeable.
• Unitized, molded coil design.
• Coil waterproofi ng standard.
• Screw-in manual override option.
Threshold
Current (mA)
A &amp; B
C
Range
Range 300 ± 70 360 ± 70 150 ± 35 180 ± 35
Coil
Voltage12 VDC24 VDC
Max. Control
Current (mA)
A &amp; B
C
Range
Range 1500 ± 200 1400 ± 200 750 ± 100 700 ± 100
</div>
</div>
<div class="product-related"> </div>

2-402-1-main-image

2-402-1-image-dimensions

A pressure-compensated electrically-variable three-port flow regulator that is a priority (bypass) type control. This combination valve uses a PV70-33x proportional cartridge and an EC10-40 compensator.

PFR70-33x-J Proportional Priority Flow Regulator, (PFR70-33x-J)

<div>
<h3>Product Operation</h3>
The PFR70-33x-J series will bypass all flow when de-energized at the pressure
compensator spring value. When energized, this proportional valve/compensator
package will regulate flow out of port ➁, regardless of system working pressure, with an increasing current applied to the solenoid.
</div>
<div>
<h3>Product Features</h3>
• Excellent linearity and hysteresis.
• Optional control orifice sizes.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Effi cient wet armature construction.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Pressure Rise: Pressure at ➀ begins to rise higher than the compensating pressure differential when bypass flow exceeds 41.6 lpm (11 gpm).
Internal Leakage: 410 cc/min. (25 cu. in./min.) fully closed at 207 bar (3000 psi) out port ➁
Electrical: 2 standard voltage ratings
<a title="2.403.1" href="https://www.savery.co.uk/products/view/2-403-1">2.403.1</a>
</div>

2-403-1-main-image

2-403-1-image-dimensions

A pressure-compensated electrically-variable three-port flow regulator that is a priority (bypass) type control. This combination valve uses a PV70-33x proportional cartridge and an EC12-40 compensator.

PFR72-33x-J Proportional Priority Flow Regulator, (PFR72-33x-J)

2-407-1-main-image

2-407-1-graphs-image

2-407-1-image-dimensions

2-407-1-symbols-graphs-image

2-407-1-symbols

PFR72-33x-L Proportional Flow Regulator, N.C., (PFR72-33x-L)

2-408-1-symbols

2-408-1-symbols-graphs-image

2-408-1-main-image

2-408-1-image-dimensions

2-408-1-graphs-image
