Proportional Flow Control Valves, 2-Way

SP10-20 Poppet, 2-Way, Normally Closed (SP10-20)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When de-energized, the SP10-20 acts as a check valve, allowing flow from 1 to 2, while blocking flow from 2 to 1. When energized, the 2 to 1 flow path opens. Flow is proportional to current applied to the coil. Flow varies with manual override.
Note: If low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively. See “SP Valves and Coil Operating Parameters,” page <a title="2.002.1" href="https://www.savery.co.uk/products/view/2-002-1">2.002.1</a>.
</div>
<div>
<h3>Product Features</h3>
• Industry-common cavity.
• Efficient wet-armature construction.
• Continuous-duty rated coils.
• Optional waterproof E-Coils rated up to IP69K.
• Manual override option.
• Metering Option.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 250 bar (3625 psi)
Flow: Without Manual Override: 68 lpm (18 gpm) at 34.5 bar (500 psid)With Manual Override M or T: 64.3 lpm (17 gpm) at 34.5 bar (500 psid)With Manual Override Y or J: 41.2 lpm (10.9 gpm) at 34.5 bar (500 psid)
Minimum Operating Dither/Pulse Frequency: 70 Hz
Hysteresis: Less than 5% up to 75% of I-max.; Less than 10% above 75% of I-max.
Max. Internal Leakage: 5 drops per minute at 250 bar (3625 psi)
Temperature: -40 to 120°C with standard Buna seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>;
Installation: No Restrictions. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>;
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400; for E-coils manuf. prior to 1-1-04, see page <a title="3.400.1" href="https://www.savery.co.uk/products/view/3-400-1">3.400.1</a>.
ELECTRO-PROPORTIONAL VALVES—FLOW CONTROL
</div>
</div>
<div class="product-related"> </div>

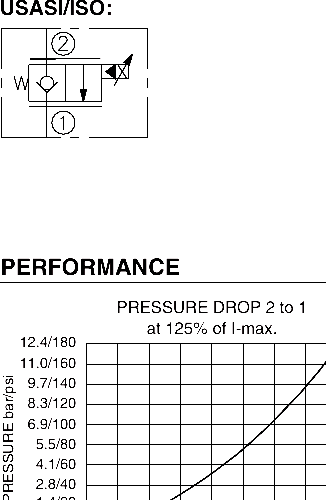

2-010-1-symbols

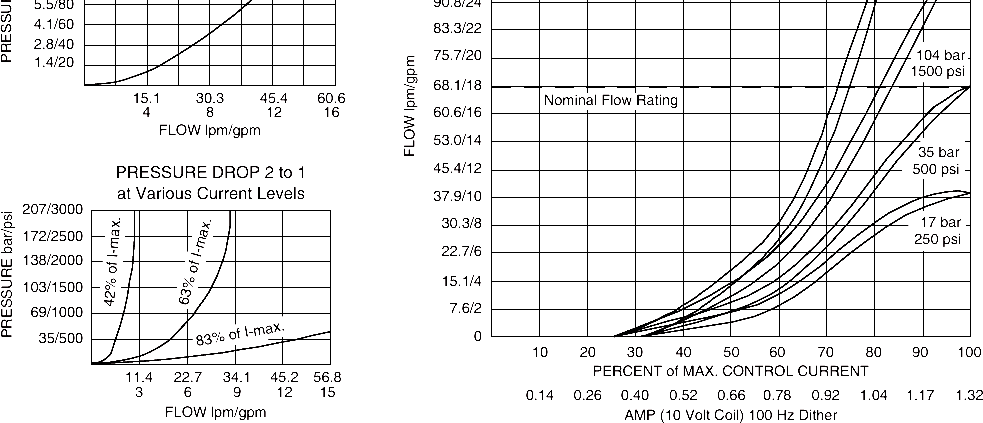

2-010-1-graphs-image

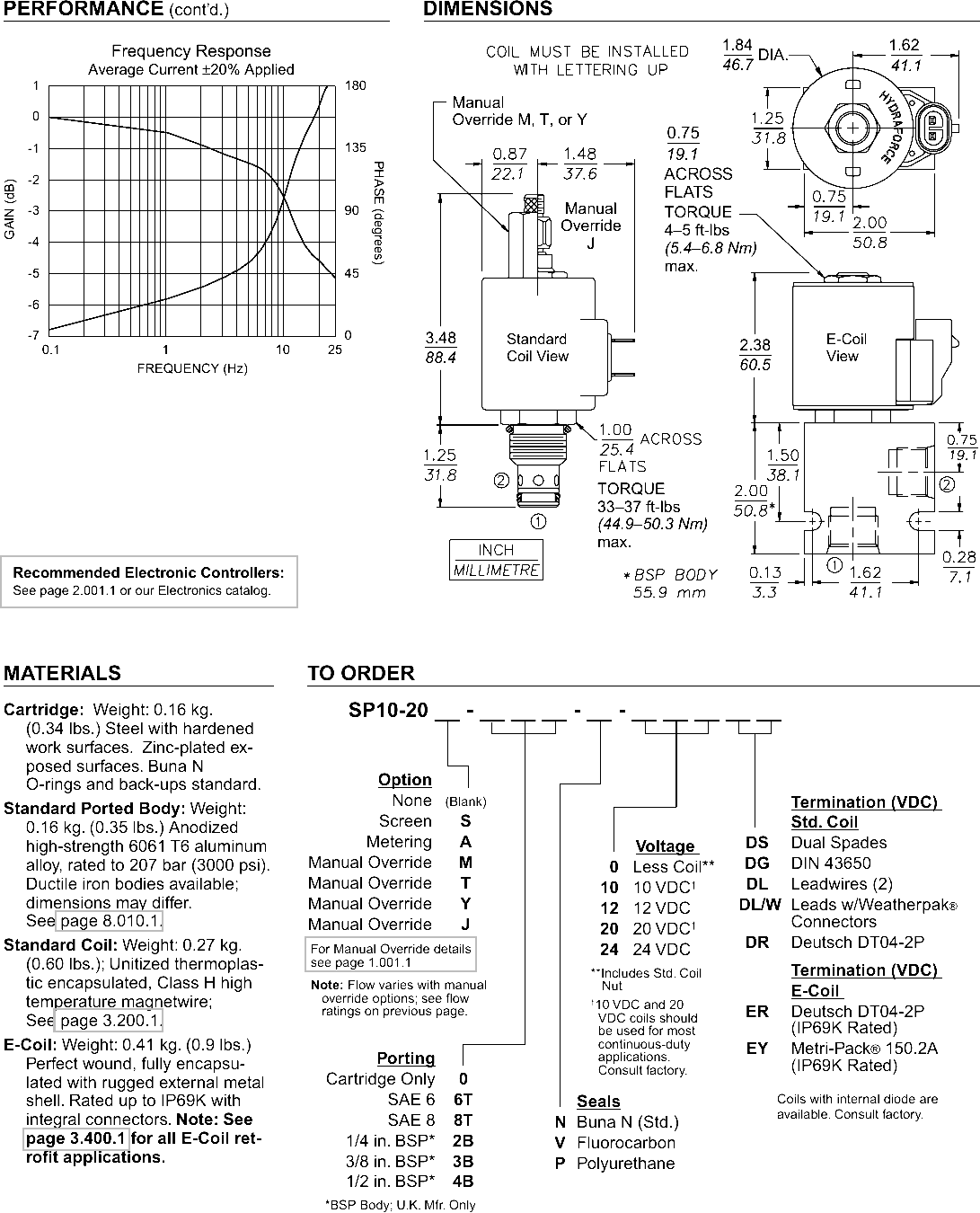

2-010-1-image-dimensions

2-010-1-symbols-image

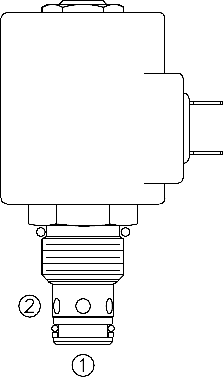

2-010-1-main-image

A proportional solenoid-operated, two-way, poppet-type, normally closed, screw-in hydraulic cartridge valve for low-leakage blocking and load-holding applications.
