Proportional Flow Control Valves, 2-Way

SP08-25 Spool, 2-Way, Normally Open (SP08-25)

<div>
<h3>Product Operation</h3>
When de-energized, the SP08-25 allows flow from 1 to 2 or from 2 to 1. When partially energized, the valve begins to throttle the flow in either direction. When fully energized, flow is blocked in either direction.
External circuitry is required to ramp current.
Note: If low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively. See “SP Valves and Coil Operating Parameters,” page <a title="2.002.1" href="https://www.savery.co.uk/products/view/2-002-1">2.002.1</a>.
</div>
<div>
<h3>Product Features</h3>
• Industry-common cavity.
• Continuous-duty rated coils.
• Hardened precision spool and cage for long life.
• Optional waterproof E-Coils rated up to IP69K.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 207 bar (3000 psi)
Operating Voltage: See performance chart
Flow: 0 to 15.4 lpm (0 to 4 gpm)
Internal Leakage: 25 ml per minute at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: Recommend ISO 4406 16/13; See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No Restrictions. See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC08-2; See page <a title="9.108.1" href="https://www.savery.co.uk/products/view/9-108-1">9.108.1</a>
Cavity Tool: CT08-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK08-2X-T; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
ELECTRO-PROPORTIONAL VALVES—FLOW CONTROL
</div>

2-028-1-symbols

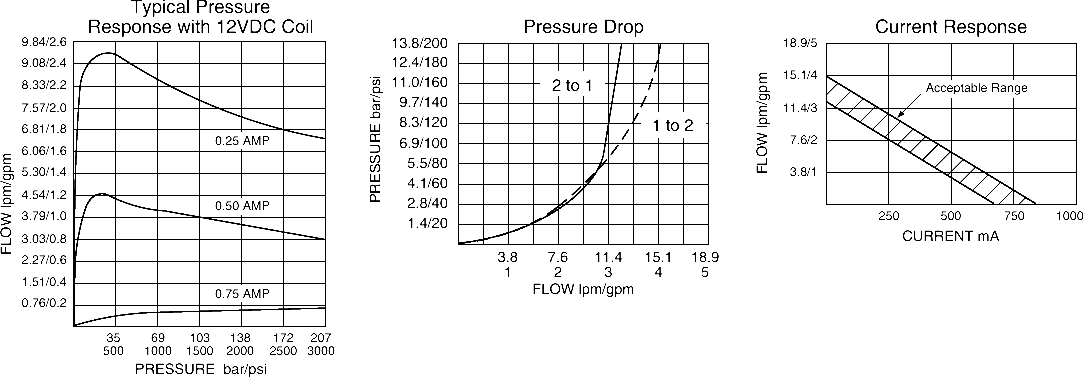

2-028-1-graphs-image

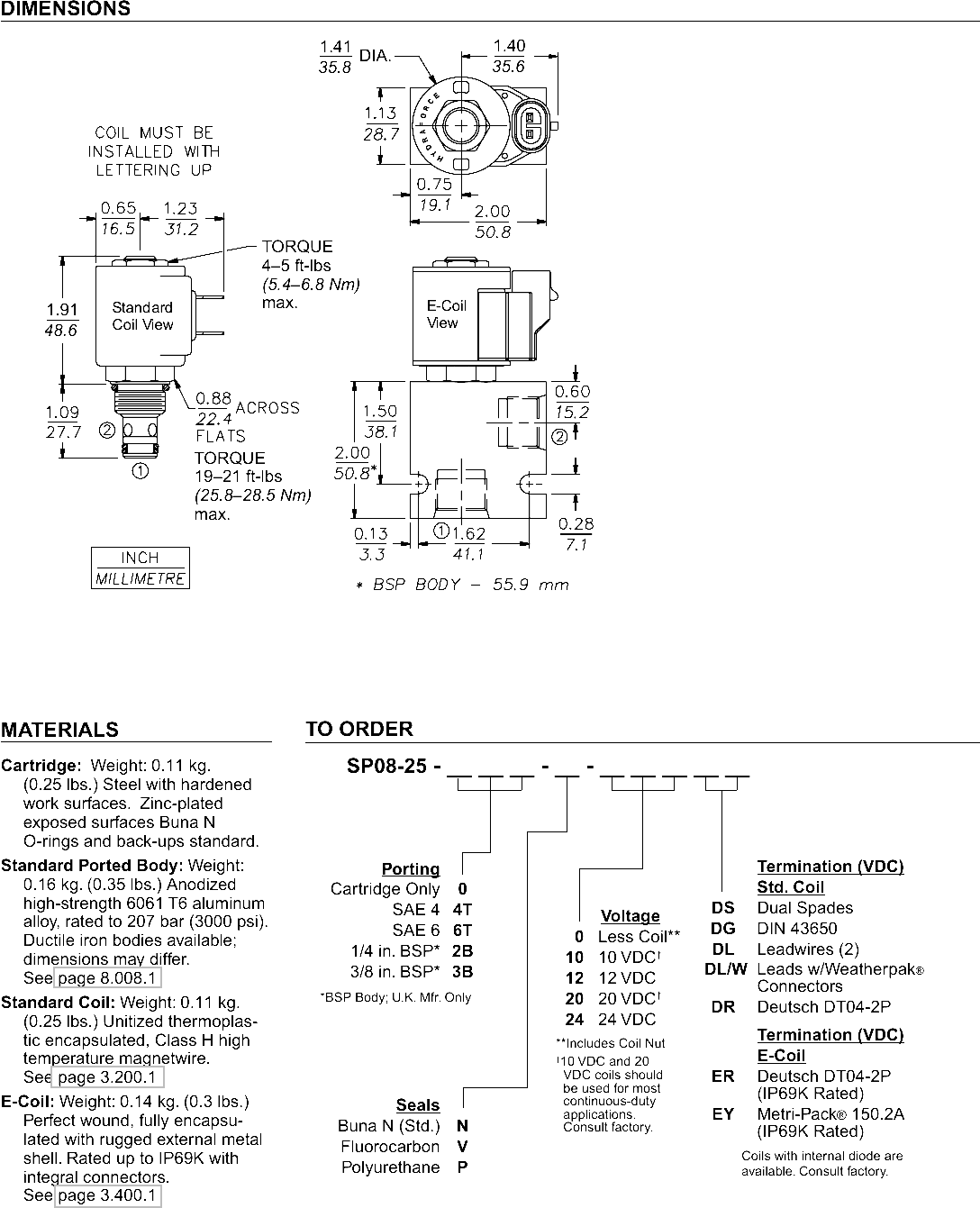

2-028-1-image-dimensions

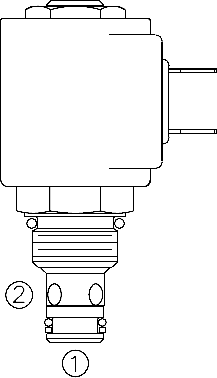

2-028-1-main-image

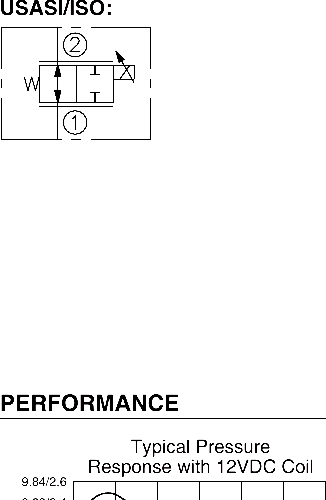

2-028-1-symbols-image
