Piloted, 4-Way Spool Valves

PD42-S67B Piloted, 4-Way Spool-Type Valve (PD42-S67B)

<div>
<h3>Product Operation</h3>
When the PD42-S67B is in neutral position, flow is allowed between ports ➁, ➂ and ➄. When the remote pilot signal at ➀ exceeds the force of the bias spring, the spool shifts to allow flow between ➂ and ➃, and between ➁ and ➄. On remote pilot signal at ➅, the spool shifts to allow flow between ➂ and ➁, and between ➃ and ➄
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 324 bar (4700 psi) at ports ➁, ➂ and ➃; 28 bar (400 psi) at ports ➀ and ➅ with standard Buna N seals.
Flow: 0–189 lpm (0–50 gpm); See Performance Chart
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-S6; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-S6X; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-S6X-BMMMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

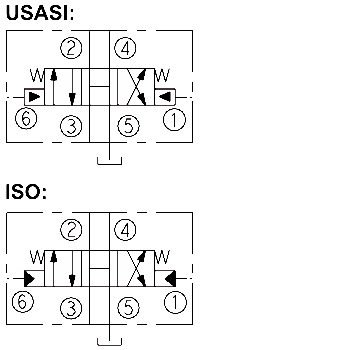

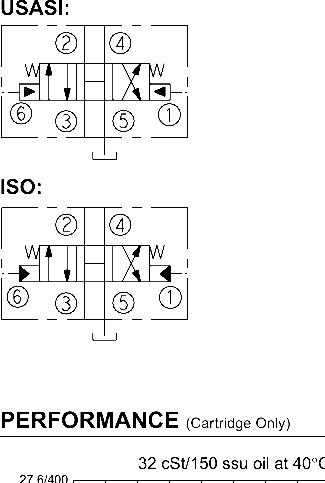

4-397-1-symbols

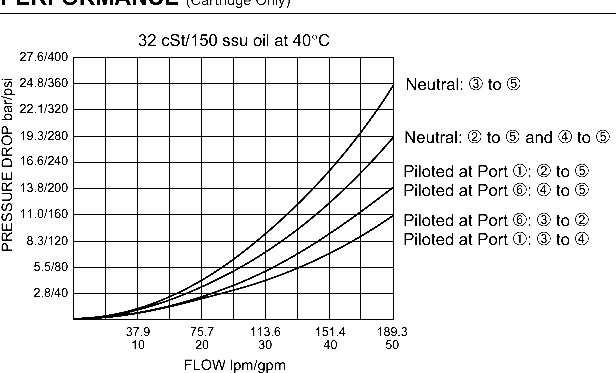

4-397-1-graphs-image

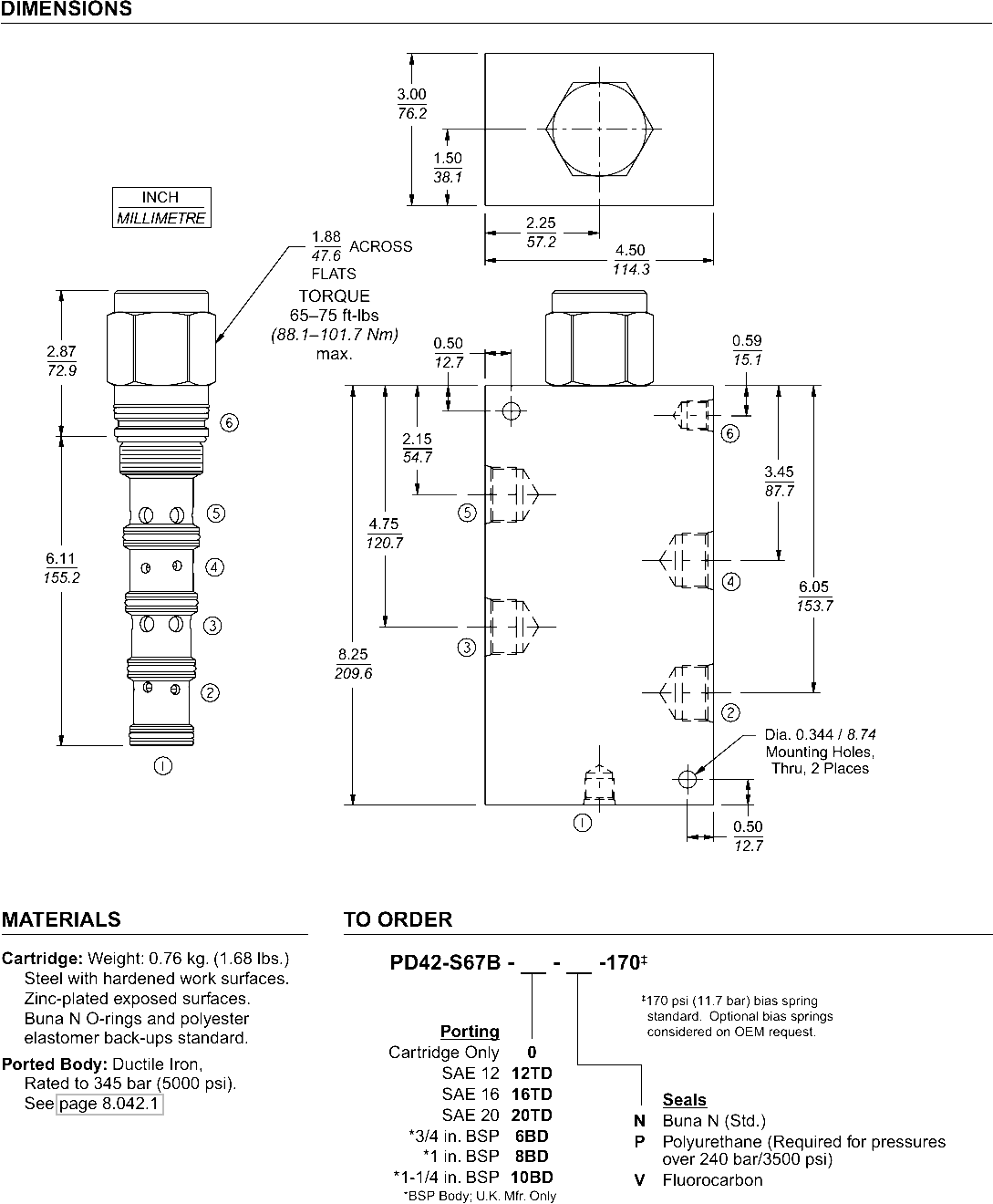

4-397-1-image-dimensions

4-397-1-symbols-image

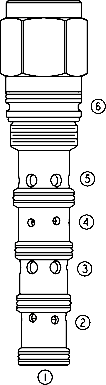

4-397-1-main-image
