Piloted, 2-Way Spool Valves, Vented

PD12-30 Piloted 2-Way Spool, Normally Open, (PD12-30)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD12-30 allows flow from ➂ to ➁ bidirectionally. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the
cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to block ➁ to ➂ bidirectionally.Because of the vented spring chamber, the cartridge may be fully pressurized at any
port without affecting required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost-effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required for 7.6 bar (110 psi) Spring:to Cross-Over: 7.6 bar (110 psi)to Full Shift: 9.1 bar (132 psi)
Oil Volume Required to Full Shift: 1.32 cc (0.08 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Cap Vent Seal: 6003121
</div>

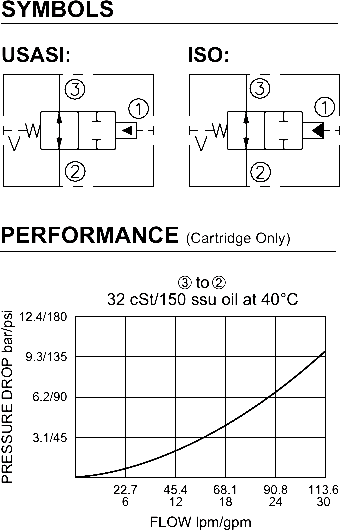

4-312-1-symbols

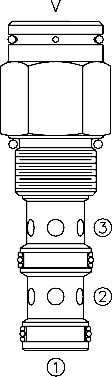

4-312-1-main-image

4-312-1-symbols-graphs-image

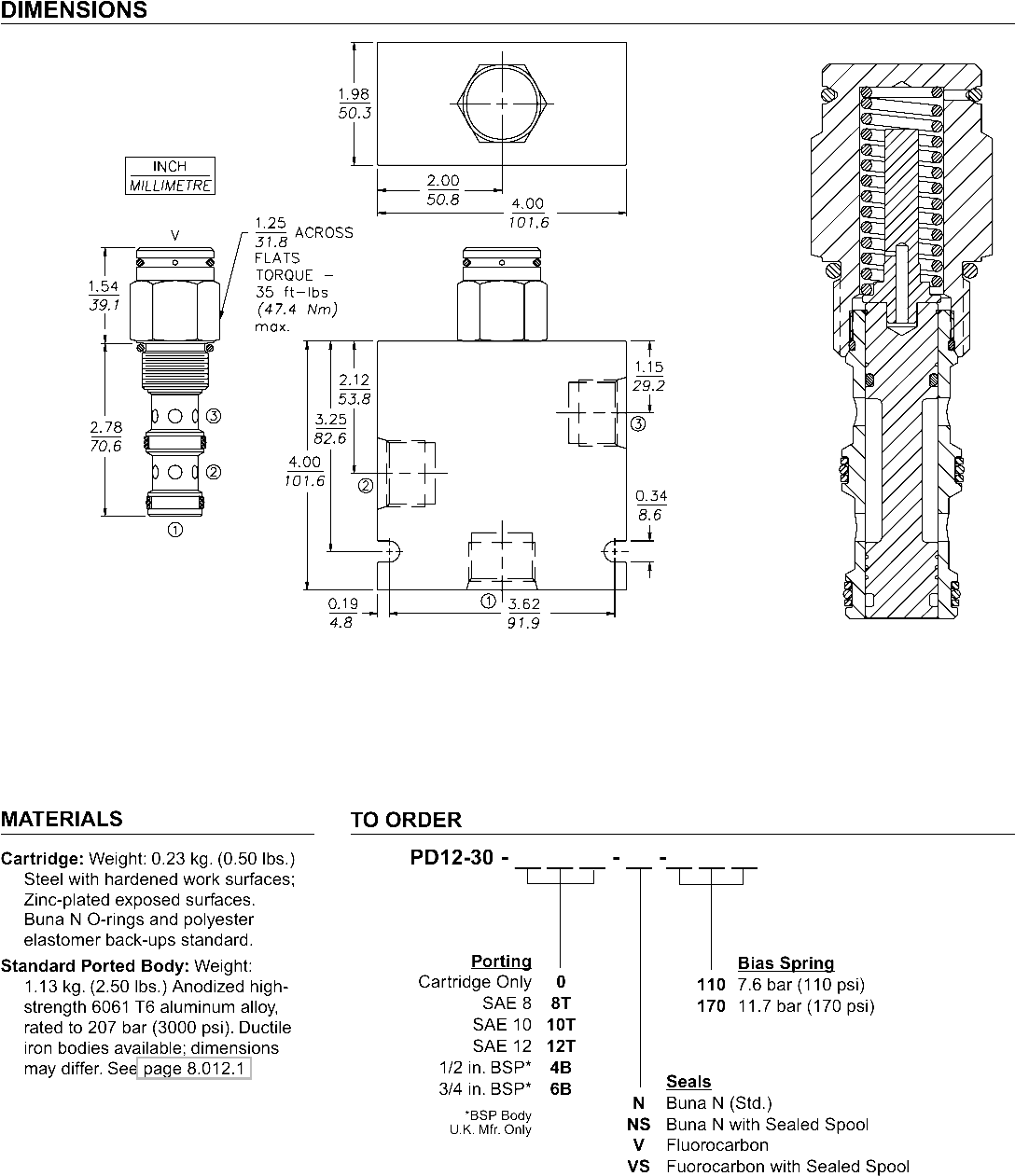

4-312-1-image-dimensions

A screw-in, cartridge-style, pilot-operated, spool-type, normally open, hydraulic directional valve for two-way circuits requiring remote pilot actuation.
