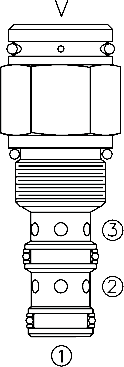

PD10-34 Piloted 2-Way Spool, Normally Closed, (PD10-34)
A screw-in, cartridge-style, pilot-operated, spool-type, normally closed, hydraulic directional valve for two-way circuits requiring remote pilot actuation.
Product Operation
In neutral (unpiloted), the PD10-34 blocks flow from ➂ to ➁ bidirectionally. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the
cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to open ➁ to ➂ bidirectionally.Because of the vented spring chamber, the cartridge may be fully pressurized at any
port without affecting required pilot pressure.
Product Features
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 390 bar (5700 psi)

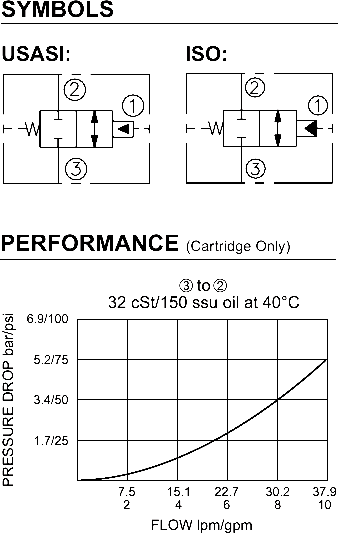

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required: To Full Spool Shift:
for 4.1 bar (60 psi) spring: 4.7 bar (68.2 psi)for 7.6 bar (110 psi) spring: 8.6 bar (125 psi)
Oil Volume Required to Full Shift: 0.65 cc (0.04 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

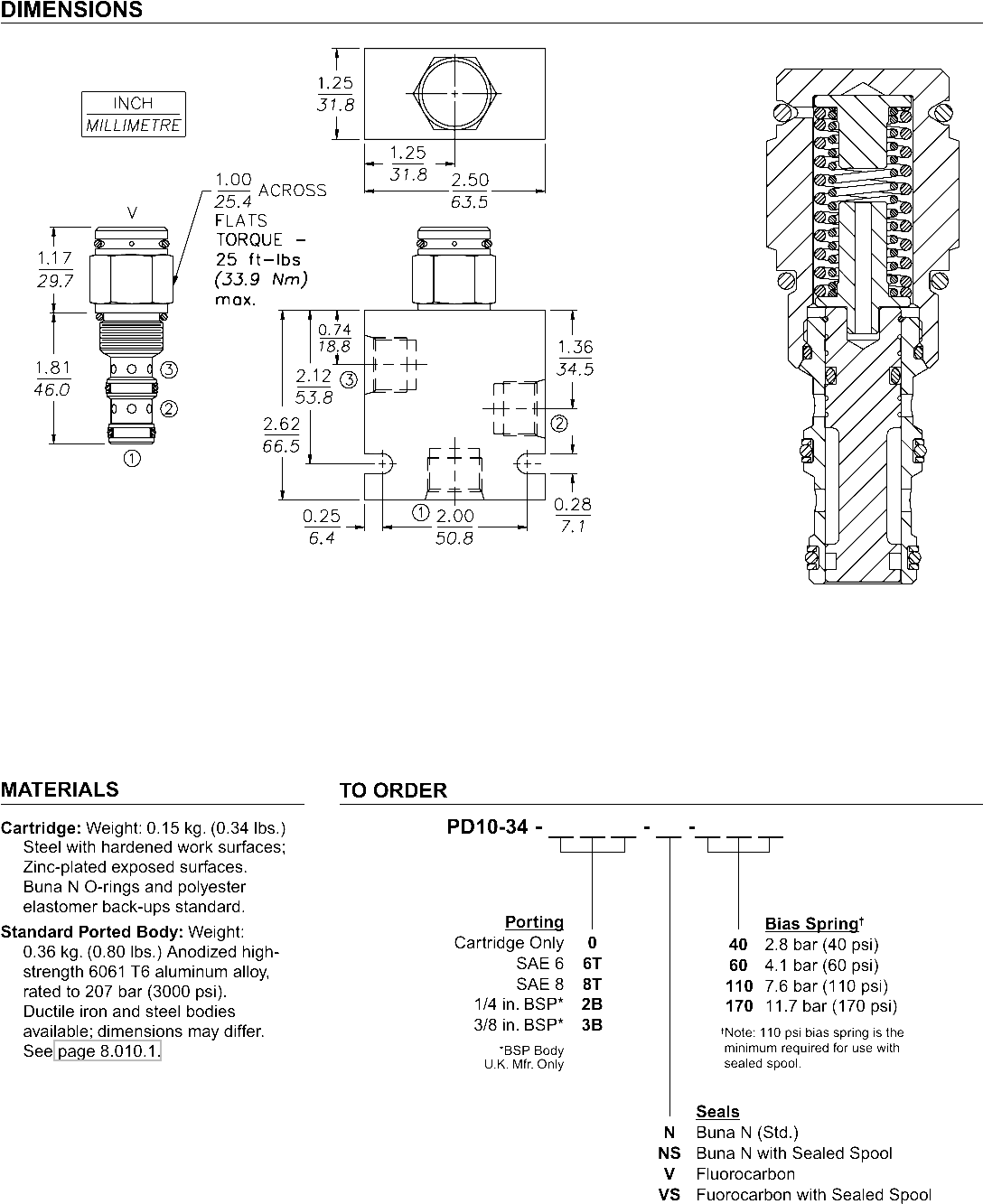

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-MM; See page 8.650.1
Cap Vent Seal: 6003117
