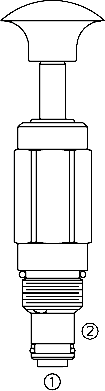

HP10-20 Hand Pump (HP10-20)
A screw-in, cartridge-style, push and release type hand pump with two built-in checks.
The HP10-20 will provide a specific displacement of oil to port ➀Note: As with any mechanical hydraulic actuator (piston rods, rotating pump shaft, etc.) the shaft will become coated with a minute amount of oil from the internal high pressure system. The rod protruding from the hand pump may feel damp with oil after use. This is desirable because the oil coating serves to lubricate the shaft seal, reduc-ing friction and assuring extended seal life.
Product Features
• Hardened parts for long life.
• Heavy duty construction.
• Industry common cavity.
Product Ratings
Operating Pressure: Port ➀ to 207 bar/3000 psi; Port ➁ to 69 bar/1000 psi
Displacement: 1.36 cc/0.083 cu. in. per stroke
Force Required: 30 lbs. to attain 17 bar/250 psi
Internal Leakage: From port ➀ to port ➁: 0.15 cc/3 drops per minute maximum at 207 bar/3000 psi
Temperature: -40 to 120°
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation: No restrictions; See page 9.020.1
Cavity: VC10-2, Variation “A”; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2x-T; See page 8.650.1
