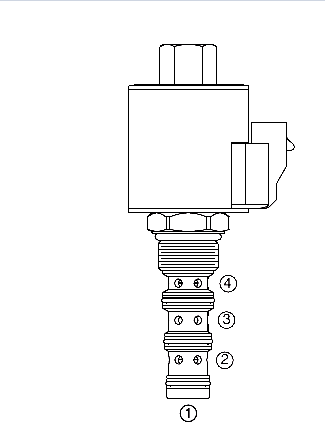

HSV10-40R HyPerformance (HSV10-40R)
A solenoid-operated, four-way, two-position, direct-acting, spool-type, screw-in hydraulic cartridge valve for applications requiring high pressure operation.
Product Operation

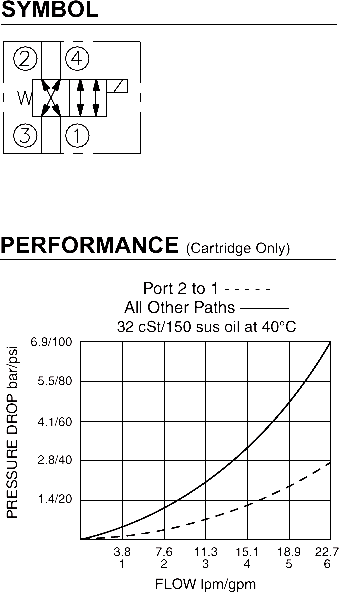

When de-energized, the HSV10-40R allows flow between ➁ and ➀, and between ➂ and ➃. When energized, the spool shifts to allow flow between ➂ and ➁, and between ➃ and ➀. Consult factory for applications where port ➃ will be used as the inlet.
Product Features
• Unitized, molded coil design, continuous-duty rated.
• Hardened precision spool and cage for long life.
• Waterproof E-Coils rated up to IP69K; optional voltages and terminations.
• Effi cient wet-armature construction.
• All ports may be fully pressurized.
• Cartridges are voltage-interchangeable.• 1000-hour salt-spray rated solenoid tubes and coils.• All HyPerformance products are tested to the rigorous standards of the NFPA specifi cation T2.6.1.• All HyPerformance valves are tested at a verifi cation level of 90% and an assurance of 99%.

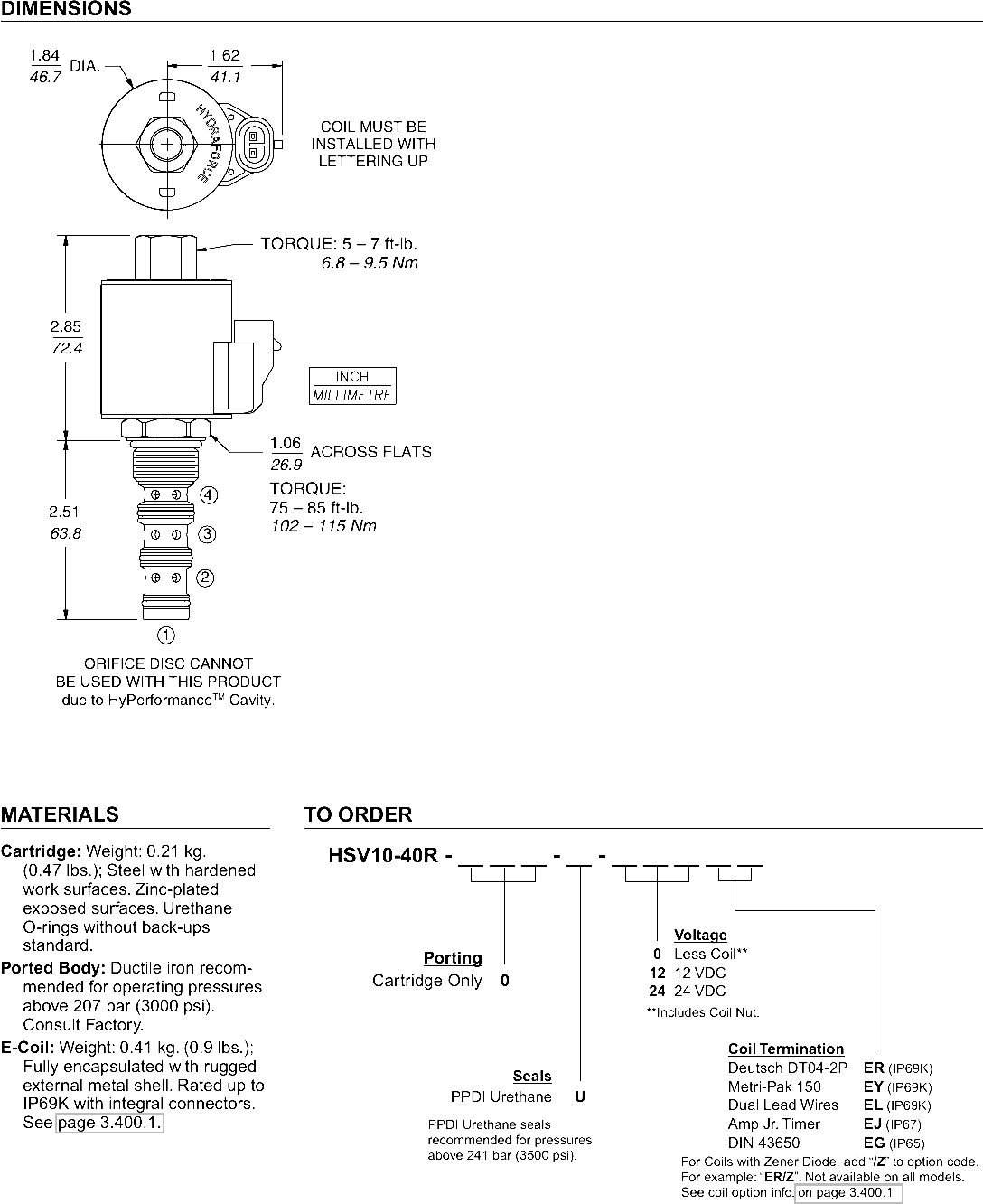

Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% cycle life: 420 bar (6090 psi)Note: All HyPerformance products are tested for 900K cycles at 350 bar and 100K cycles at 420 bar.
Burst Pressure: 1380 bar (20,000 psi)
Flow: 22.7 lpm (6 gpm) max.
Max. Internal Leakage: Port 3 to 1, De-energized: 245 ml/minute (15 cu. in./minute.) at 350 bar (5075 psi);Port 3 to 1, Energized: 164 ml/minute (10 cu. in./minute.) at 350 bar (5075 psi);Port 1 to 3, De-energized: 164 ml/minute (10 cu. in./minute.) at 350 bar (5075 psi);Port 1 to 3, Energized: 245 ml/minute (15 cu. in./minute.) at 350 bar (5075 psi)
Temperature: -54° to 107°C (-65° to 225°F) with Urethane seals.
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: HVC10-4; See page 9.110.1
Cavity Tool: HCT10-4XX; See page 8.600.1
Seal Kit: SK10-4U-OOO; See page 8.650.1
Coil Nut: Part No. 4555250
