Spool-Type, 3-Way Valves

SV12-33 Spool, 3-Way (SV12-33)

<div>
<h3>Product Operation</h3>
When de-energized, the SV12-33 allows flow between ➂ and ➀ while blocking flow at ➁. When energized, the spool shifts to allow flow between ➁ and ➀ while blocking flow at ➂. While port ➀ may be fully pressurized, it is not intended to be used as the inlet.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoid.• Hardened spool and cage for long life.• Optional coil voltages and terminations.• All ports may be fully pressurized.
• Heavy-duty waterproof E-Coils rated up to IP69K.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi) max.
Flow: See Performance Chart
Leakage: 410 cc/minute (25 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with Buna N seals
Coil Duty Rating: See Chart
Response Time: Pull-In: 100 msec; Drop-Out: 100 msec
Initial Coil Current Draw at 20°C: 2.8 amps at 12 VDC
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-3; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
E-Coil Nut: Part No. 7085180
</div>

1-374-1-symbols

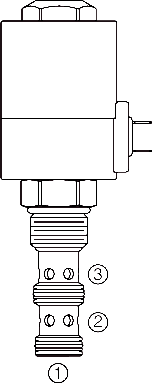

1-374-1-main-image

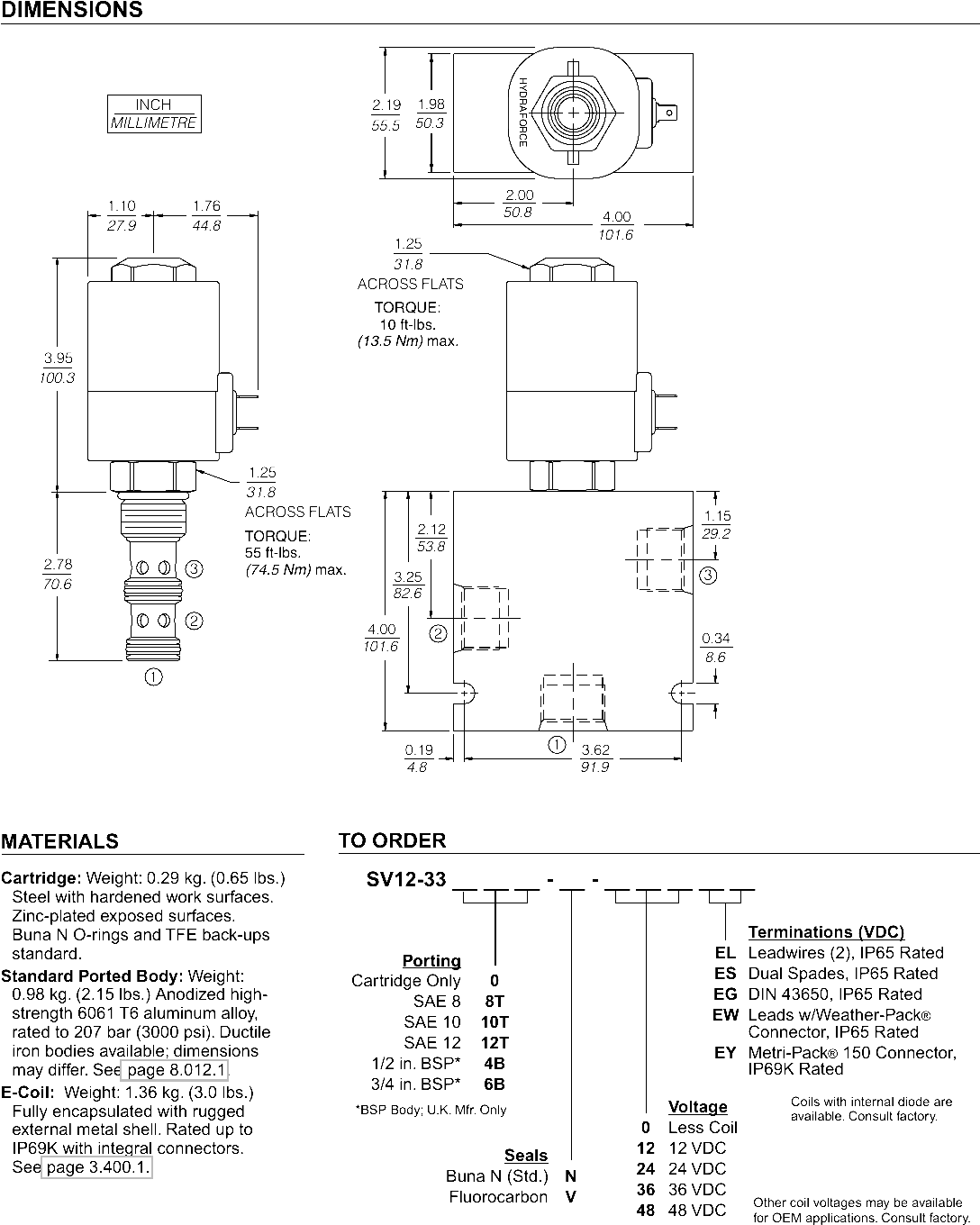

1-374-1-image-dimensions

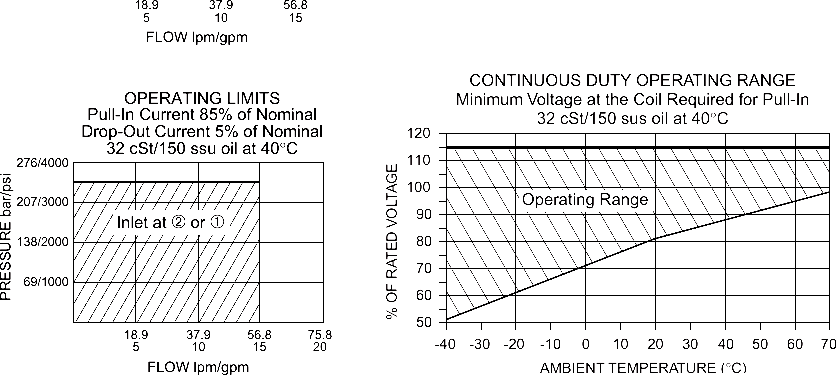

1-374-1-graphs-image

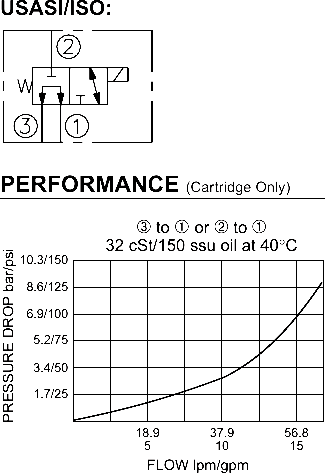

1-374-1-symbols-image

A solenoid-operated, three-way, direct-acting spool-type, screw-in hydraulic cartridge valve, intended as a bidirectional blocking valve.
