Poppet-Type, Blocking, 3-Port Valves

SVCL10-32 Poppet, 3-Port, Normally Closed (SVCL10-32)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When de-energized, the SVCL10-32 blocks flow at ports 3 and 1. When energized, flow is allowed from 3 to 1 and 2 with a check-isolated load sense signal supplied at 2. Reverse flow is not allowed from 1 to 3.
NOTE: When using this valve in bridge circuits, seals should not be used on the pilot pistons of the pilot-operated check valves. This is to avoid trapping oil which would keep the pilot-operated check valve open.
</div>
<div>
<h3>Product Features</h3>
• Continuous-duty rated solenoid.
• Hardened precision spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet-armature construction.
• All ports may be fully pressurized.
• Cartridges are voltage interchangeable.
• Optional waterproof E-Coils rated up to IP69K.
• Unitized, molded coil design.
• Reduce manifold space claim.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 250 bar (3625 psi); Holding Pressure at 1: 250 bar (5000 psi)
Flow: 15 gpm (57 lpm); see performance charts
Internal Leakage: Ports 1 and 3: 5 drops/minute max. at 250 bar (3625 psi)Port 2: 10 drops/minute max. at 250 bar (3625 psi)
Operating Temperature: -40° to 100°C (-40° to 212° F) with standard Buna N seals;-26° to 204°C (-15° to 400°F) with Fluorocarbon seals;-54°C to 104°C (-65°F to 225°F) with Polyurethane seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C: Standard D-Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified). E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3, Variation “B”; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400
</div>
</div>
<div class="product-related"> </div>

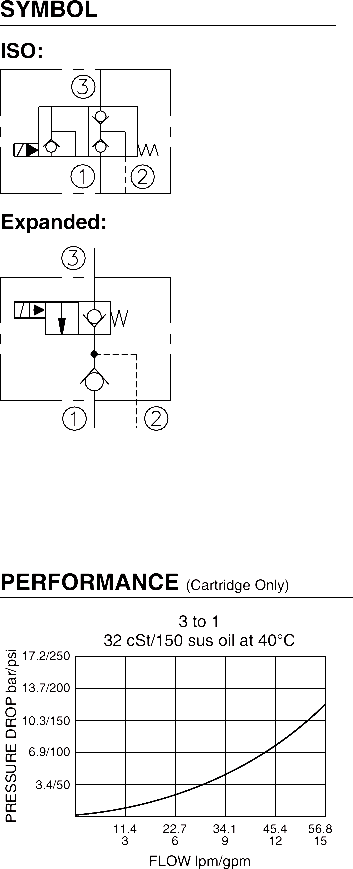

1-315-1-symbols

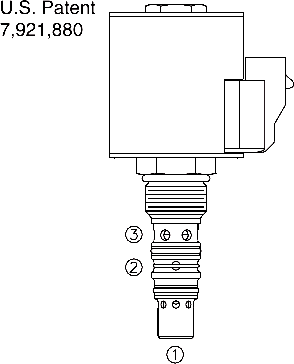

1-315-1-main-image

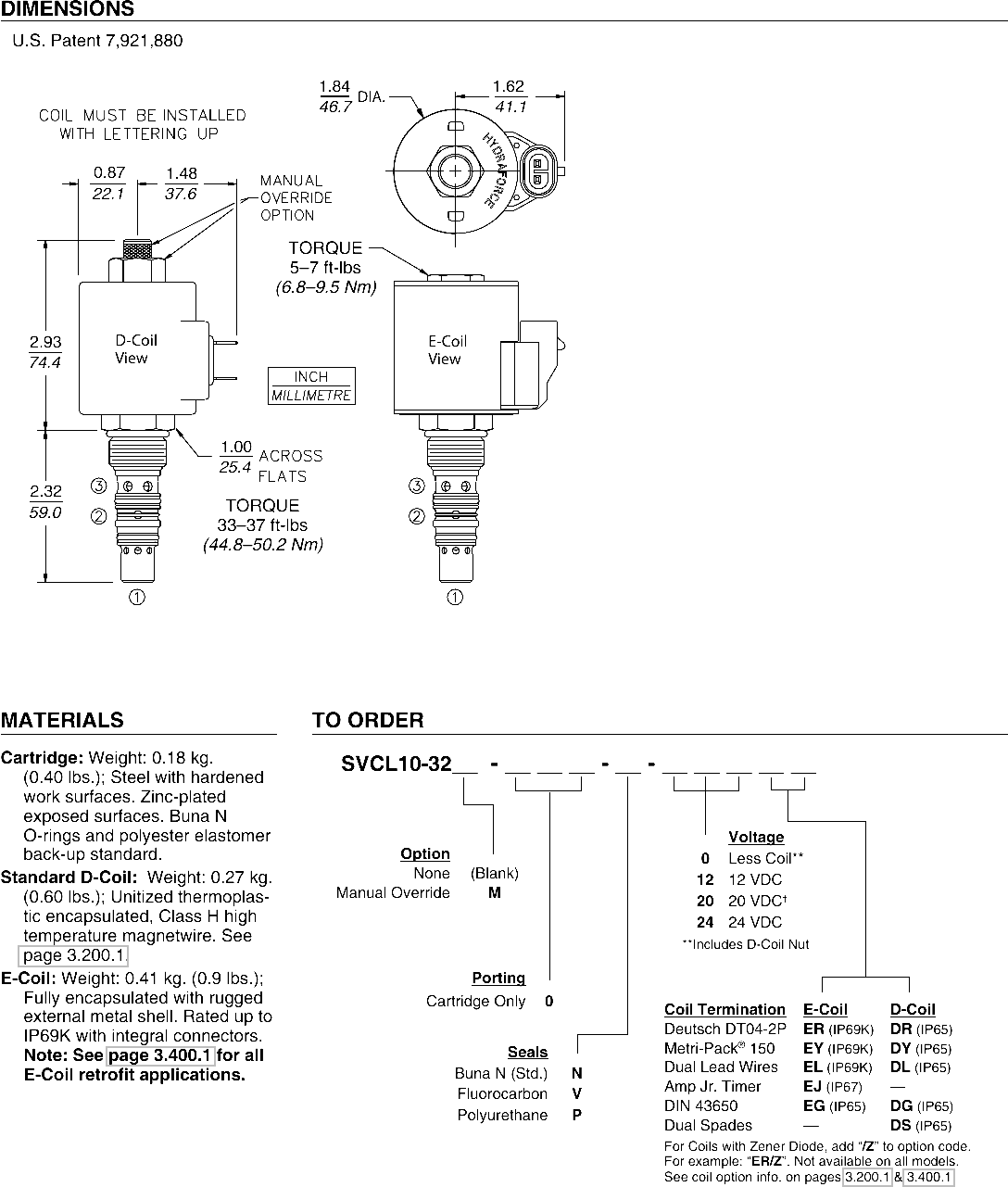

1-315-1-image-dimensions
