PS10-43 Sequence, 3-Way, External Pilot, Internal Drain (PS10-43)

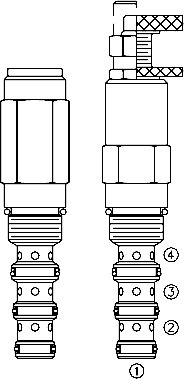

A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain. It is designed to function as a remote pilot-operated three-way valve.
Product Operation

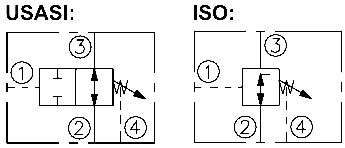

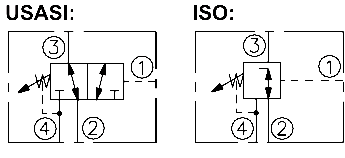

In neutral (unpiloted), the PS10-43 allows flow between ➂ and ➁ bidirectionally, while blocking at ➃The spring chamber is constantly vented at ➃On attainment of a pre-determined pressure at ➀, the cartridge shifts to close ➂ to ➁, while opening ➂ to ➃. Note that back-pressure value at ➃ must be added to the selected pressure setting to determine pilot pressure.
Product Features
• Adjustments cannot be backed out of the valve.• Adjustments prohibit springs from going solid.• Optional spring ranges to 151.7 bar (2200 psi).• Hardened precision spool and cage for long life.• Industry common cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)

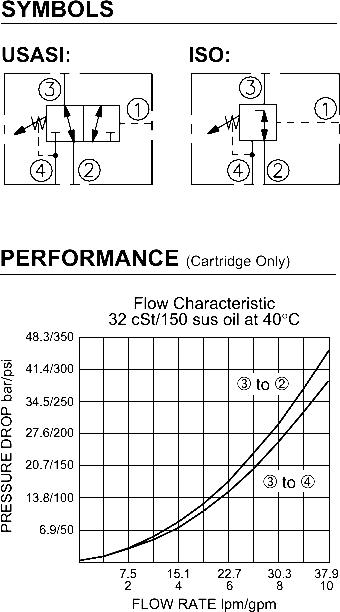

Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. to 85% of nominal setting
Standard Spring Ranges: 2.8 to 27.6 bar (40 to 400 psi); 15.2 to 151.7 bar (220 to 2200 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

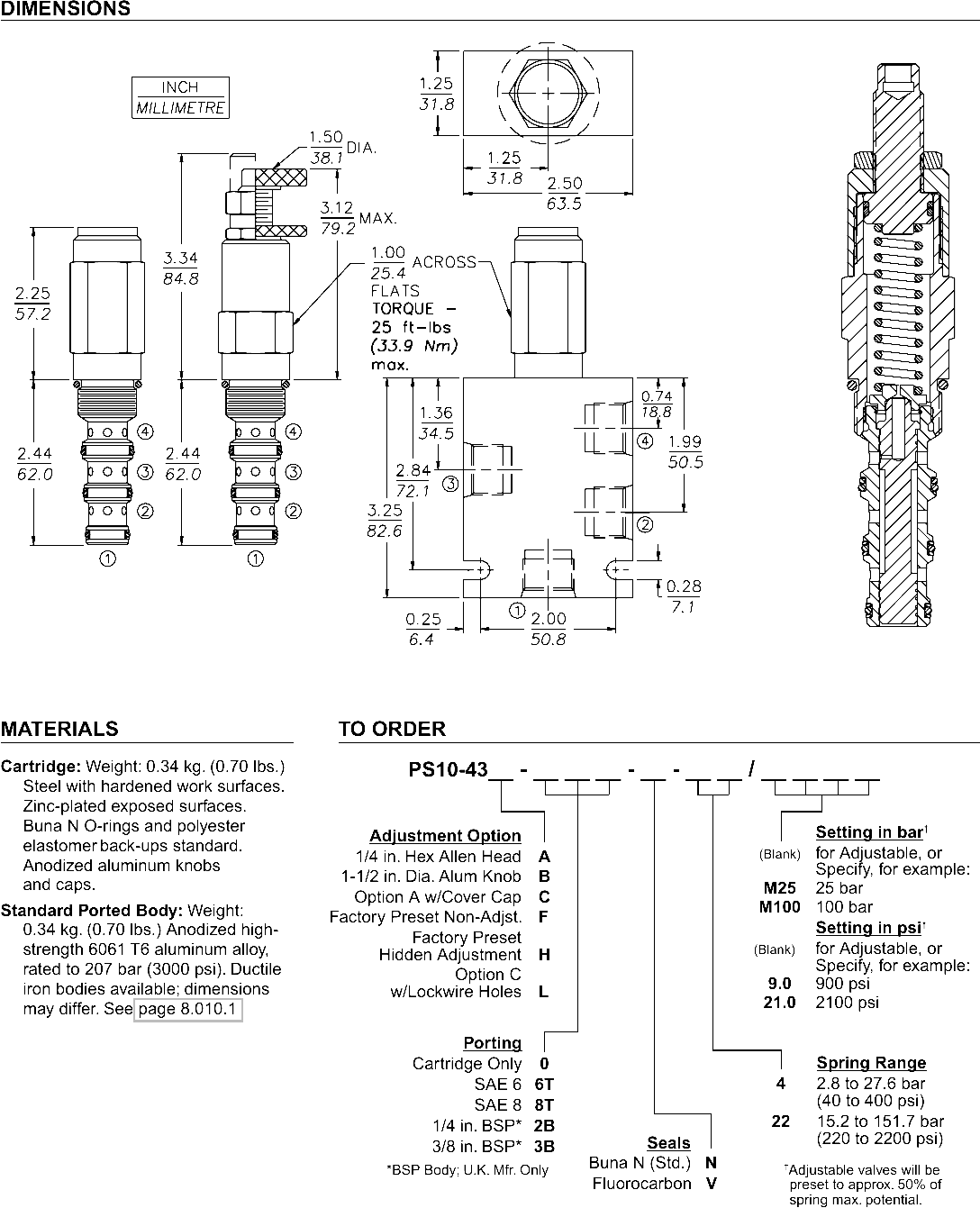

Cavity: VC10-4; See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-BMM; See page 8.650.1
