Relief Valves, Pilot-Operated, Spool-Type

RV50-26 Relief, Pilot-Operated Spool (RV50-26)

<div>
<h3>Product Operation</h3>
The RV50-26 blocks fl ow from ➀ to ➁ until suffi cient pressure is present at ➀ to force the piloting relief off its seat, allowing the main (second stage) spool to shift, opening ➀ to ➁The cartridge offers smooth transition in response to load changes in demanding hydraulic circuits.NOTE: The RV50-26 may not be used in cross-over relief applications (back
pressure on ➁).
</div>
<div>
<h3>Product Features</h3>
• Adjustments cannot be backed out of the valve.• Adjustments prohibit springs from going solid.• Hardened spool and cage for long life.• Fast, smooth response to pressure surges.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 345 bar (5000 psi)
Flow: The Performance Chart illustrates fl ow handling capacity at maximum setting. Pressure rise will vary with setting due to fl ow forces. Consult factory for specifi c fl ow characteristic values.
Internal Leakage: 115 cc/minute (7 cu. in./minute) max. to 85% of nominal setting
Crack Pressure Defi ned: bar (psi) evident at 7.6 lpm (2.0 gpm) attained
Reseat Pressure: Nominal 90% of crack pressure
Standard Spring Ranges: 27.6 to 345 bar (400 to 5000 psi)
Temperature: -40 to 120°C
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-2; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-2XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK50-2X-B; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

6-152-1-symbols

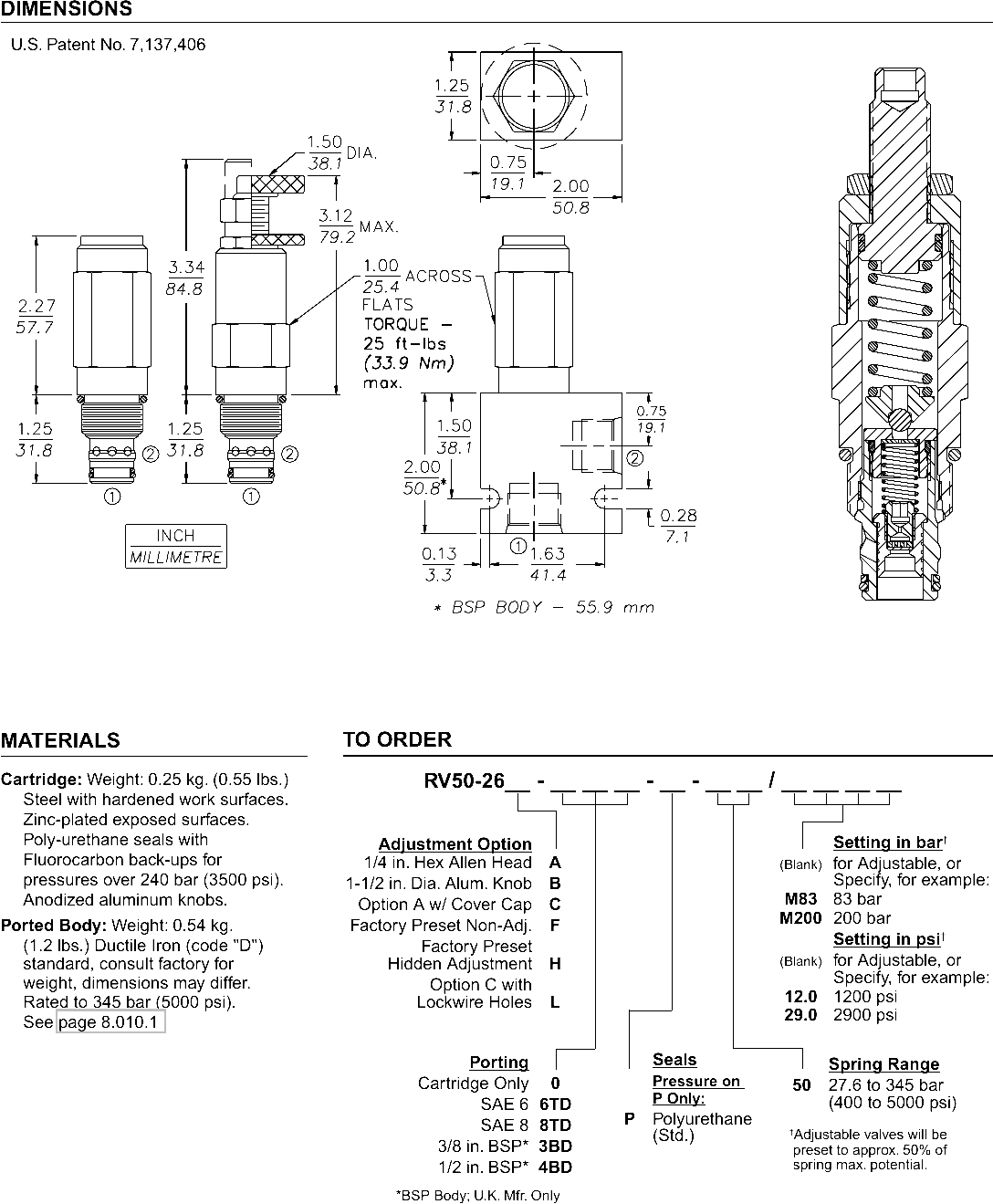

6-152-1-image-dimensions

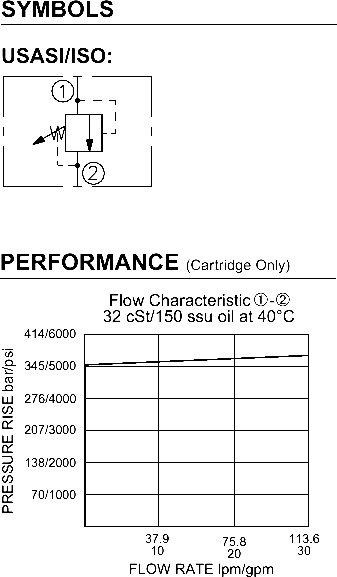

6-152-1-symbols-graphs-image

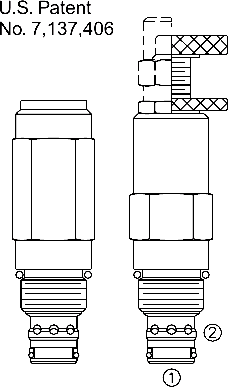

6-152-1-main-image
