CB10-30 Motion Control Valve (CB10-30)

A low leakage, pilot-operated motion control valve designed to regulate the lowering of over-running loads, while providing free reverse flow and thermal relief protection at the actuator.

Product Operation

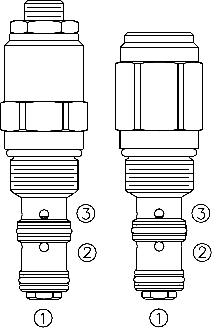

The CB10-30 is a low leakage, poppet-style control valve designed to restrict flow
from port ➁ to port ➂ in relation to the pilot signal supplied at port ➀. The valve includes free flow reverse flow and thermal relief protection at port ➁. For maximum safety, motion control valves are designed to be screwed into an actuator or actuator
mounted housing; or according to user specifi cations they can be incorporated into
other manifold confi gurations.

Product Features

 Adjustments cannot be backed out of the valve.
 Adjustments prohibit springs from going solid.
 Optional spring ranges to 207 bar (3000 psi).
• Hardened spool and cage for long life.
 Industry common cavity.

Product Ratings

Operating Pressure: up to 207 bar (3000 psi)

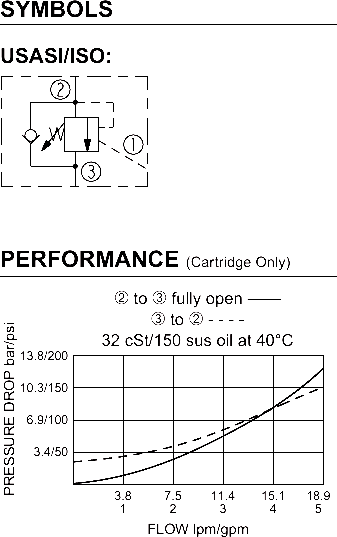

Flow: up to 19 lpm (5 gpm); see performance chart
Internal Leakage: 10 drops per minute up to 85% of pressure setting
Pressure Setting Defi ned: Pressure evident at 15 to 25 drops per minute
Pilot Ratio: 7 to 1
Standard Spring Ranges:
Code 22: 17 to 152 bar (250 to 2200 psi)
Code 25: 0 to 172 bar (0 to 2500 psi): F option only
Code 30: 55 to 207 bar (800 to 3000 psi)
Temperature: -40 to 120°C with standard Buna N seals-35 to 204°C with Fluorocarbon seals-54 to 107°C with Polyurethane seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

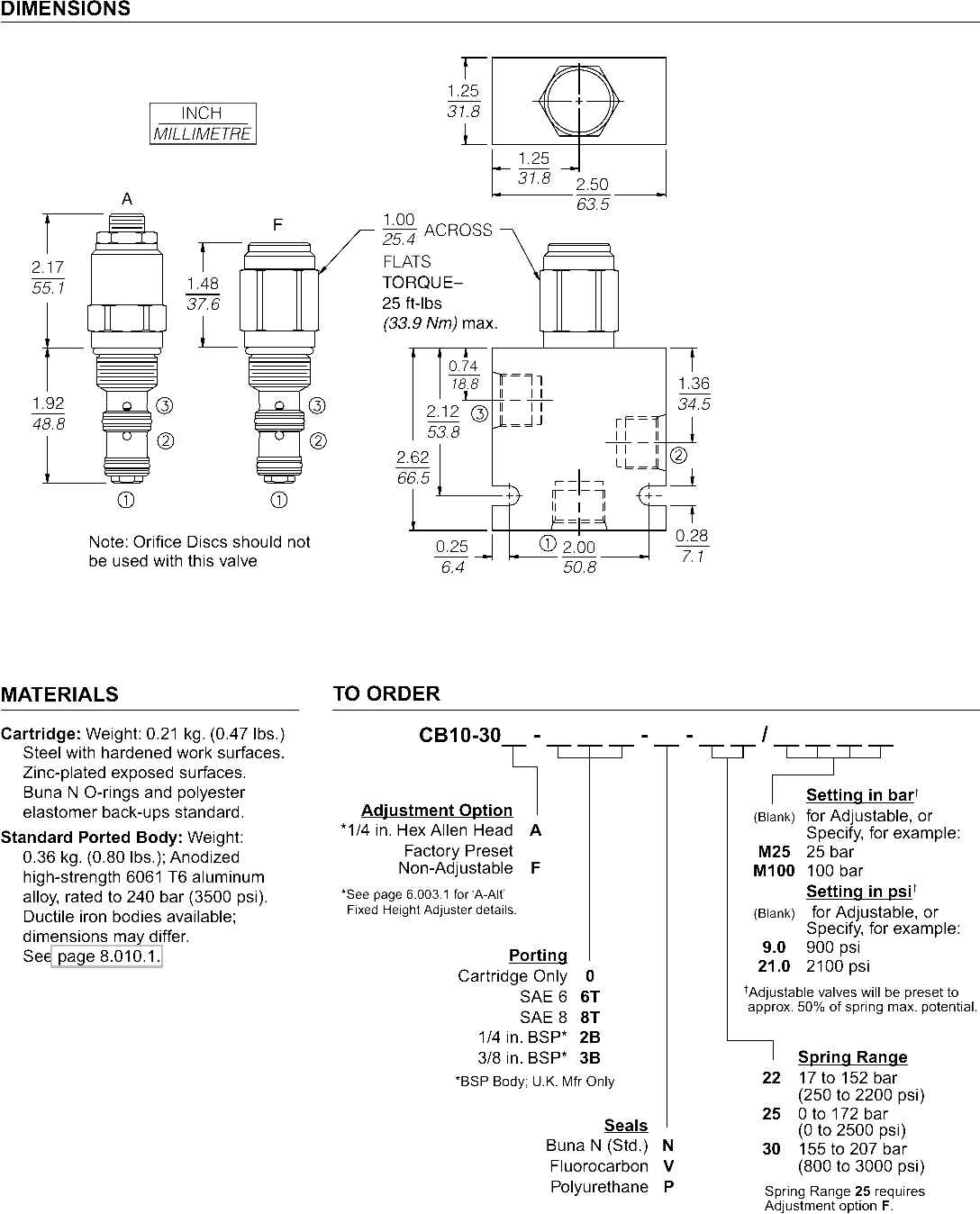

Cavity: VC10-3, Variation A; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-MM; See page 8.650.1

CB10-30 Motion Control Valve (CB10-30)
