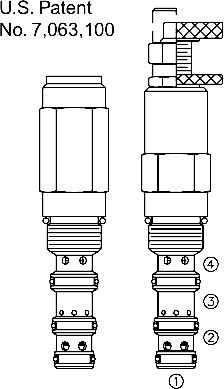

FRRV10-41F Priority Flow Regulator . . . (FRRV10-41F)
A screw-in, cartridge-style, multi-function valve which includes a fi xed-compensated, priority-type flow regulator and an adjustable pressure relief valve in one cartridge.

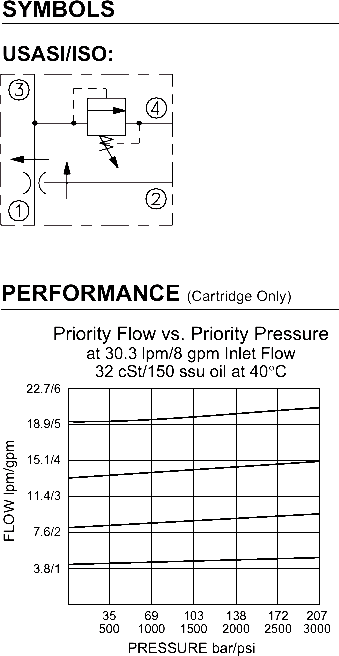

Product Operation
The FRRV10-41F maintains a constant flow rate from port ➂ regardless of load pressure changes at priority port ➂ or bypass port ➁. When load pressure at ➂ reaches the setting of the relief valve, flow is dumped over the relief at ➃. The exit flow from the relief can be connected to tank or to the bypass flow.
Note: Back pressure at port ➃ is directly additive to the relief setting.
Product Features
• Two valve functions in one, industry-common cavity.
• Adjustments cannot be backed out of the valve.
• Relief valve adjustments prohibit relief valve spring from going solid.
• Quiet, modulated response.
• Hardened parts for long life.
Product Ratings
Maximum Operating Pressure: 207 bar (3000 psi)
Maximum System Pressure: 276 bar (4000 psi)
Priority Flow: 19 lpm (5.0 gpm) maximum regulated
Inlet Flow: 38 lpm (10.0 gpm) maximum
Relief Valve Pressure Setting Ranges: 17 to 207 bar (250 to 3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

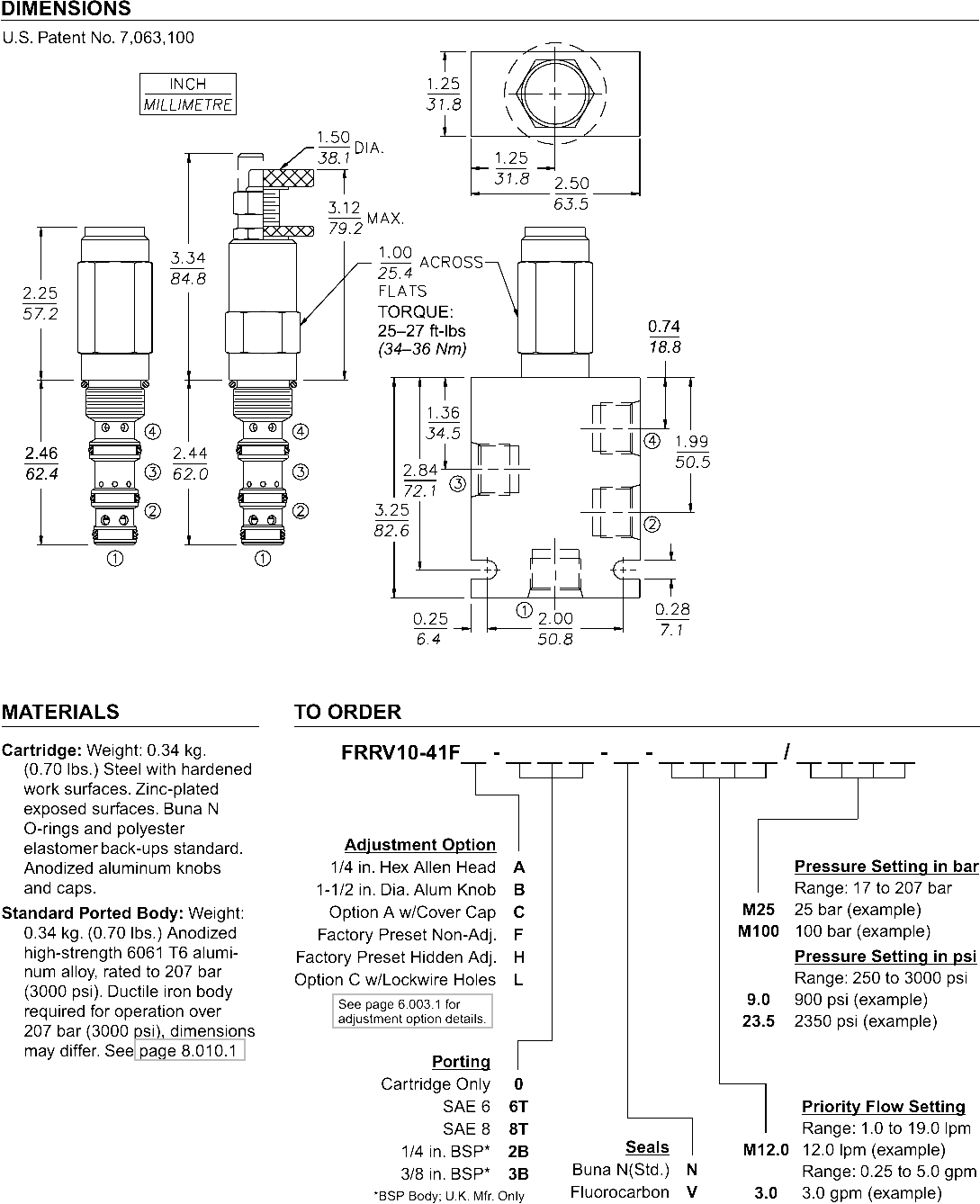

Cavity: VC10-4; See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMM; See page 8.650.1
