Flow Regulators, Fixed Orifice, Bi-Directional

FR10-32F Flow Regulator, Fixed Orifi ce, (FR10-32F)

<div class="wrapper">
<div class="content group">
<div class="product-info group">
<div>
<h3>Product Operation</h3>
The FR10-32F maintains a constant flow rate regardless of pressure drop across the
valve and regardless of flow direction: from port ➁ to port ➂ or from port ➂ to port ➁. Port ➀ should be blocked.
</div>
<div>
<h3>Product Features</h3>
• Hardened seat for long life and low leakage.
• Excellent linearity and hysteresis.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Inlet: 240 bar (3500 psi)
Flow Settings: 2.0 to 19.0 lpm (0.5 to 5 gpm); see performance chart
Internal Leakage: 0.38 ml/minute (0.10 gpm/minute) maximum
Temperature: -40 to 120°C with Buna N seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-3; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-3XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>
</div>
</div>
</div>

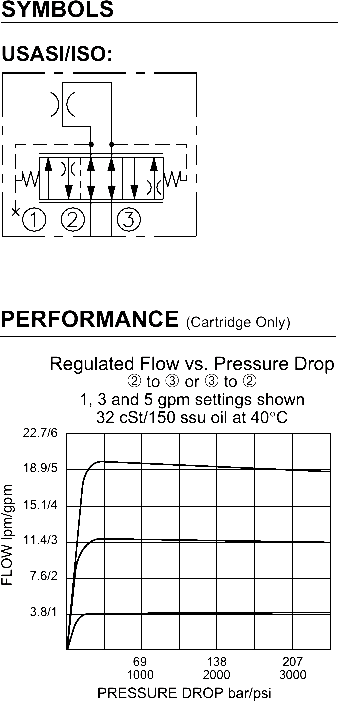

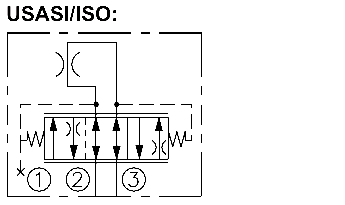

5-363-1-symbols

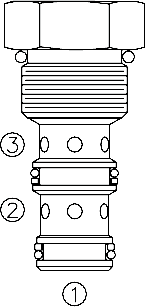

5-363-1-main-image

5-363-1-symbols-graphs-image

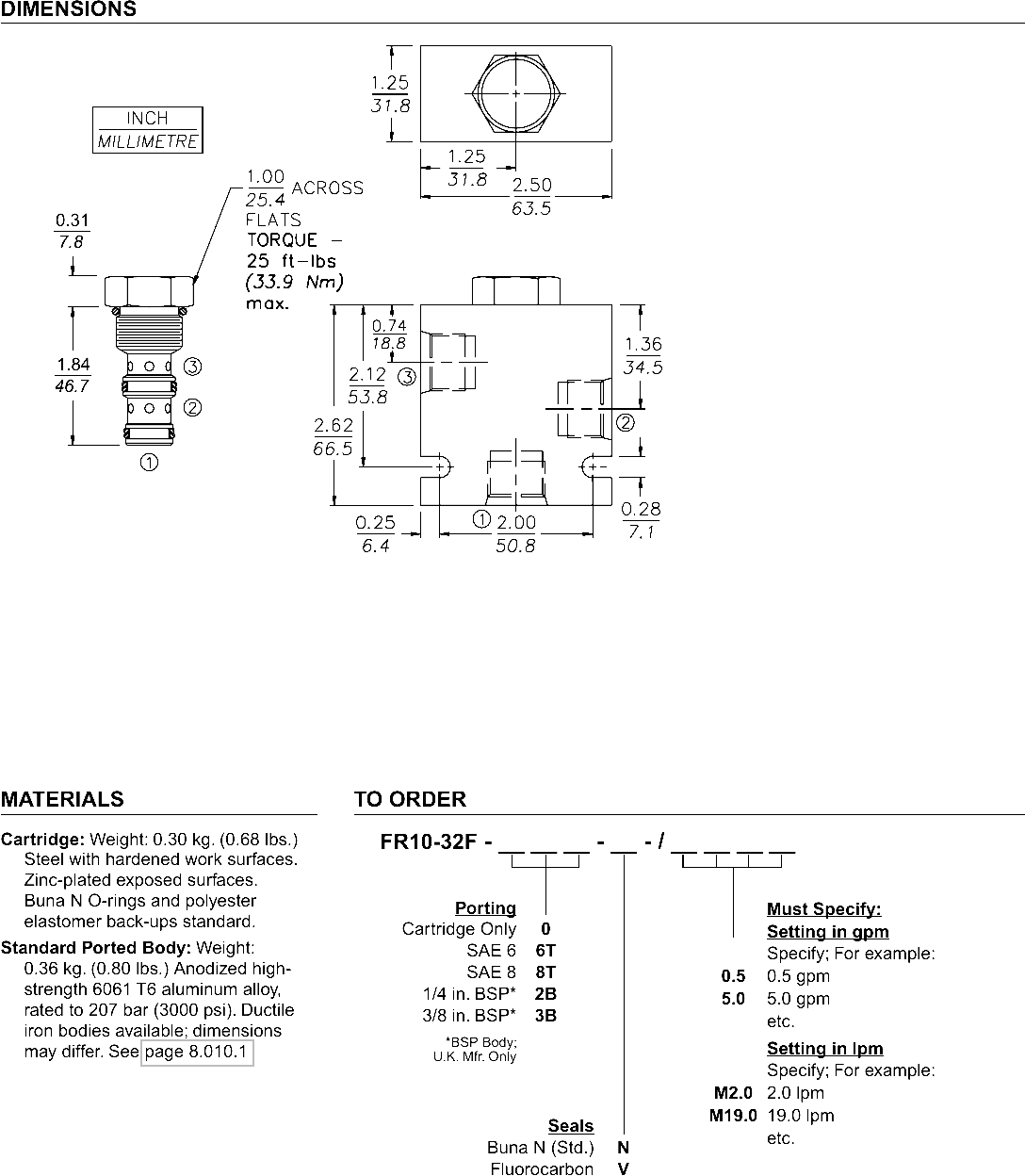

5-363-1-image-dimensions

A screw-in, cartridge-style, pressure-compensated, fi xed orifice, bi-directional, restrictive-type flow control valve.

FR10-32F Flow Regulator, Fixed Orifice, (FR10-32F)
