FC10-21 Flow Control (FC10-21)

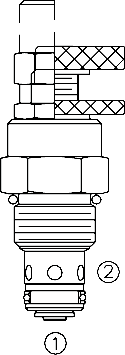

A screw-in, cartridge-style, variable orifice, hydraulic flow control valve with reverse flow check.

Product Operation

The FC10-21 increases its orifice value from fully closed to fully open with clockwise
adjustment rotation.

Product Features

• Adjustments cannot be backed out of the valve.
• Desired settings may be locked down.
• Hardened parts for long life.
 Industry common cavity.
 Aluminum knob option.
 Positive shut-off.
 Linear adjustment.

Product Ratings

Operating Pressure: 240 bar (3500 psi)

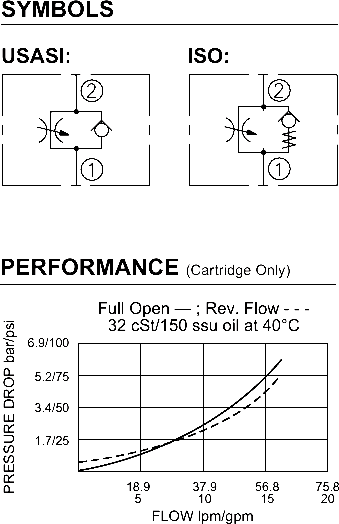

Flow: 57 lpm (15 gpm) nominal at 5.5 bar (80 psi) at full open 2.0 turns
Internal Leakage: 0.50 cc/minute (10 drops/minute) max. at shut-off
Adjustment Torque Required: 0.34 Nm (3 inch-pounds) at 7 bar (100 psi); 4.50 Nm (40 inch-pounds) at 207 bar (3000 psi)
Free Reverse Flow Check Bias Spring: See ordering information
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

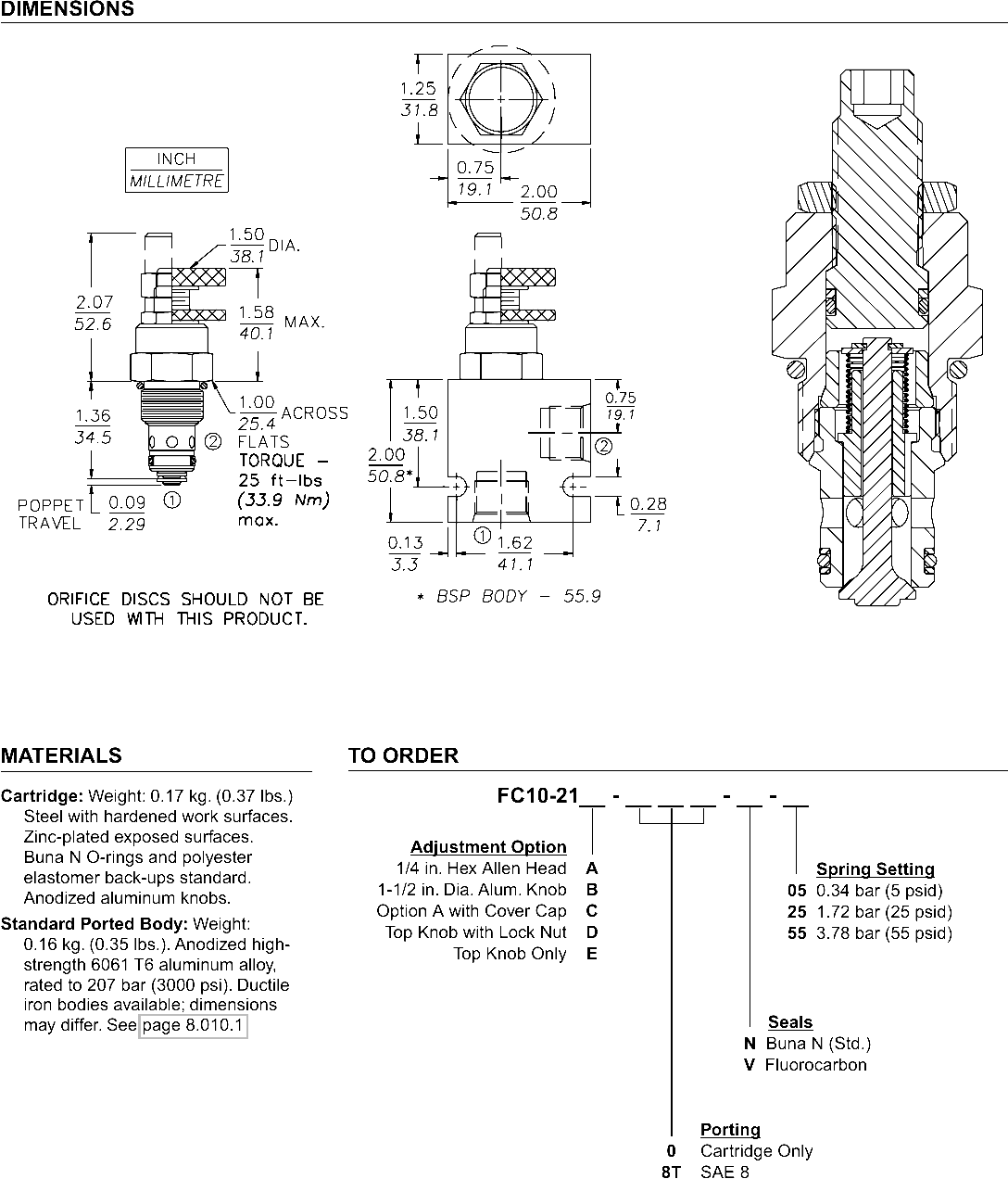

Cavity: VC10-2; See page 9.110.1 (Cavity Variation “A”)
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2X-M; See page 8.650.1
