FR10-39 Flow Regulator, Pressure Compensated (FR10-39)

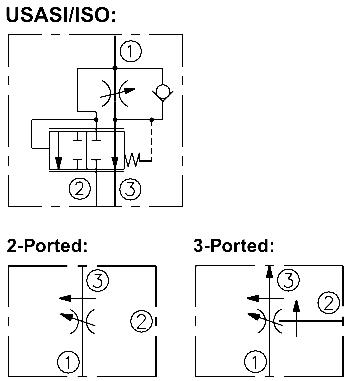

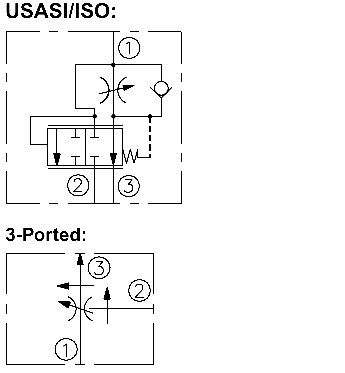

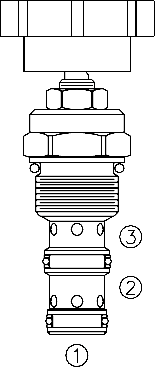

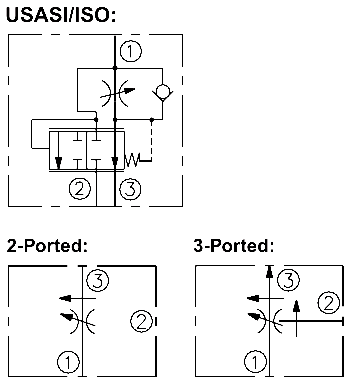

A screw-in, cartridge-style, adjustable orifice, pressure-compensated, manually-operated, bypass-type hydraulic flow regulating valve. It can be used as a priority-type flow regulator or a restrictive-type 2-way flow regulator when the bypass port (port ➁) is blocked.
Product Operation
The FR10-39 maintains a constant flow rate from ➂ regardless of load pressure changes in the system downstream of ➂, or in the bypass leg at ➁. Reverse flow (➂ to ➀) bypasses the control orifice.The regulated flow increases from closed to fully open, with counter-clockwise
rotation of the knob.
Note: When used as a bypass flow control in applications where the priority flow port
will be blocked by external valving, bypass pressure drop will increase unless a small
amount of leakage is provided for the priority port. Consult factory.
Product Features
• Bypass port ➁ may be fully pressurized.
• Fine low-torque adjustment.
• Hardened steel parts for long life.
• Quiet, modulated response.
• Industry common cavity.
Product Ratings
Operating Pressure: 240 bar (3500 psi)

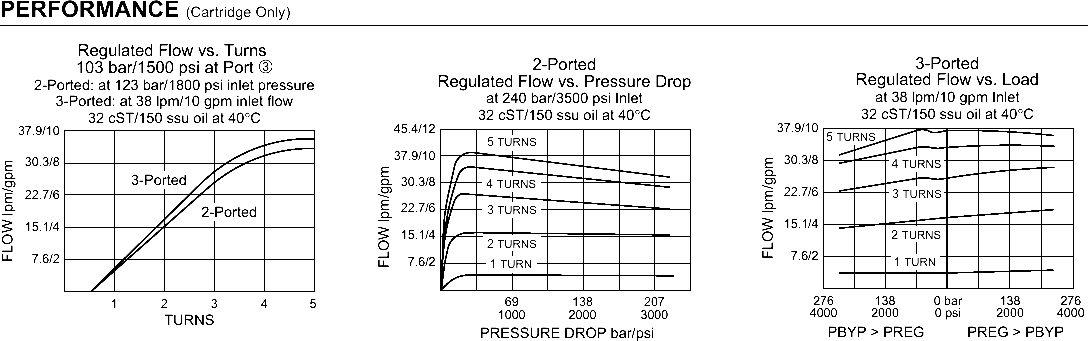

Flow Rate: 3-ported regulated flow: 0–38 lpm (0–10 gpm) 2-ported regulated flow: 0–34 lpm (0–9 gpm)
Note: For lower flow rates, see the FR10-33 valve (page 5.372.1)
Input Flow: 3-ported: 0–38 lpm (0–10 gpm) nominal; 0–57 lpm (0–15 gpm) max.
Internal Leakage: 33 cc/minute (2 cu. in./minute) at 207 bar (3000 psi)
Adjustment Torque Required: 1.7 Nm (15 inch-pounds) at 207 bar (3000 psi)
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

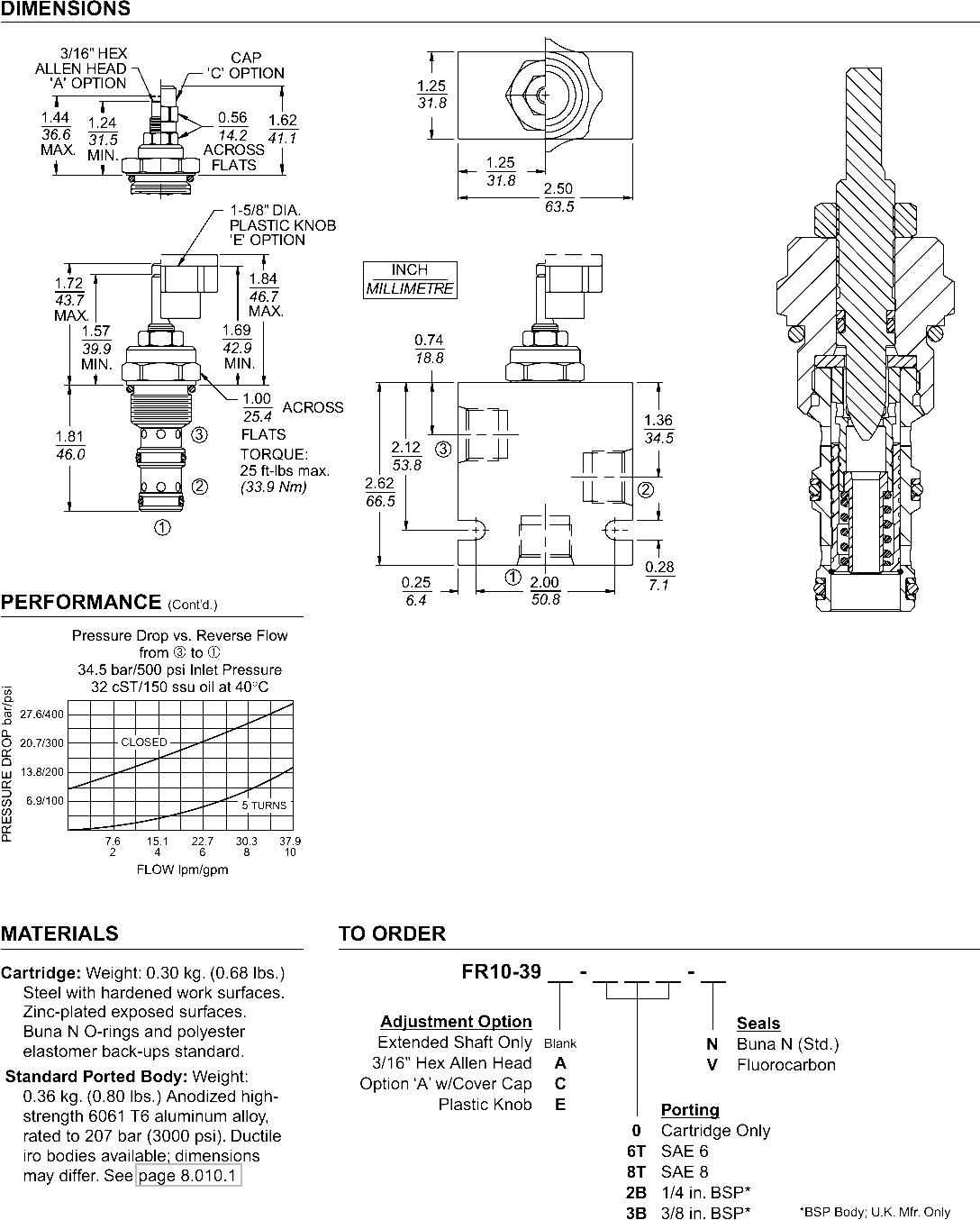

Cavity: VC10-3; See page 9.110.1
Cavity Tool: CT10-3XX; See page 8.600.1
Seal Kit: SK10-3X-MM; See page 8.650.1
Knob Kit: Part Number 6113160
