10K Pot or 0-5 VDC Input—Economy Version (10K)
A convenient, plug-mounted control amplifier for controlling HydraForce proportional valves that have solenoids with DIN 43650A/ISO 4400 electrical connectors.
Product Operation
This control module supplies a proportional valve solenoid with a proportional control signal. The input signal to this controller can be from a 10K potentiometer or a 0–5 VDC source. This economy version has no ramp adjustments. Dither frequency and
amplitude are factory pre-set.
Product Features
• Mounts directly to solenoid coils with DIN 43650A connectors.
• IP65 weather resistant when used with base gasket (supplied).
• Adjustments accessible with a removable cover.
• One unit covers supply voltages from 9 to 32 VDC.
• No internal fuses; circuit limits current electronically.
• Short circuit proof and reverse polarity protected.
• Connector can be disconnected from coil when powered.
• Maximum current adjustment does not affect minimum current setting.
• Internal supply for potentiometer.
Product Ratings
Supply Voltage: 9–32 VDC Coil rating must be matched with supply voltage: RCOIL ≤ (VSUPPLY – 1.5 V) / I-Max.

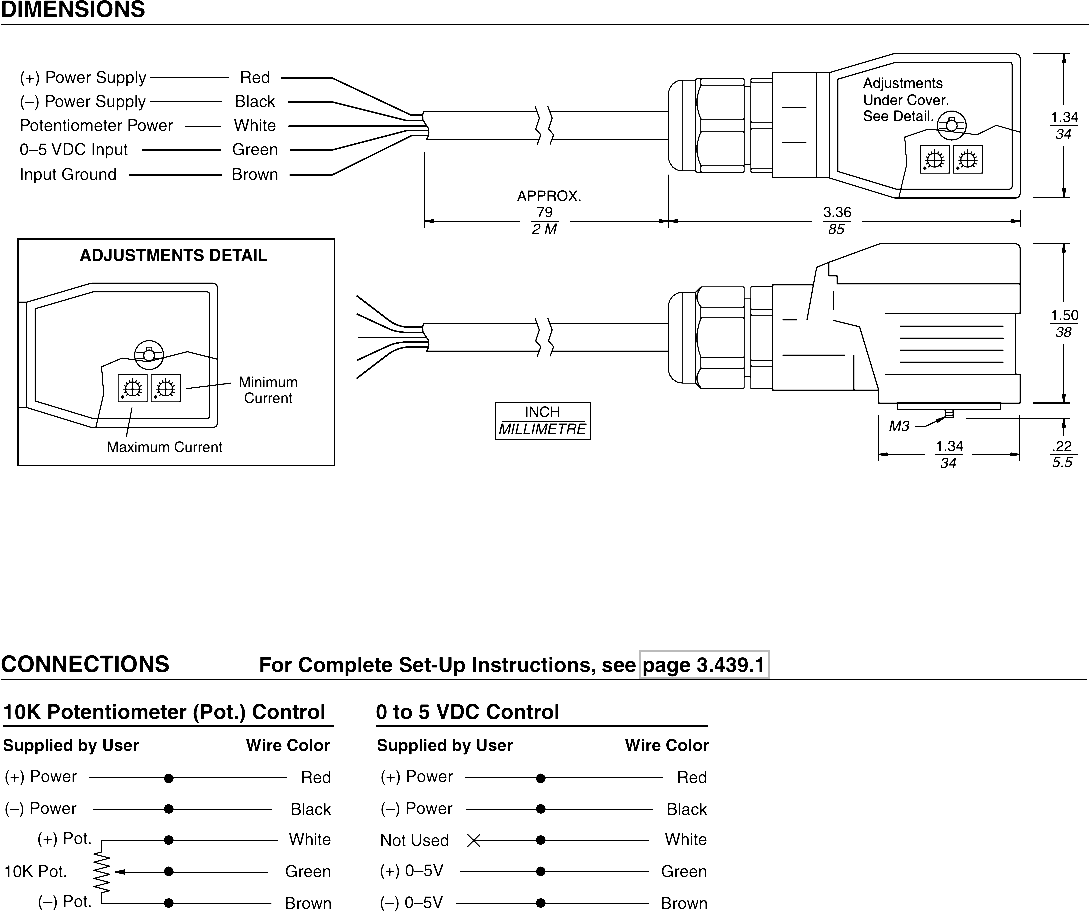

Control Input Signal Options: 10K external potentiometer (accepts 5K to 50K pots), or 0–5 VDC current signal (see connection diagrams)
Input Resistance: 187K Ohms
Output Current: up to 2000 mA (see ordering info.)
Minimum Current Range: 0–500 mA (adjustable)
Maximum Current Range: 600–2000 mA (adjustable)
Internal Supply for Setpoint Potentiometer: +5VDC
Dither Frequency: 90 or 220 Hz (±10% of full scale) Preset at Factory
Dither Amplitude: 5% Preset at Factory
Operating Conditions: –40° to 85°C; 0 to 85% relative humidity
Environmental Protection: IP65 with cover and base gasket installed
3.424.1
GENERAL SPECIFICATIONS
Plug Housing: Polyamide
Plug Lid: Polycarbonate
Weight: 30 g (1.06 oz.) without cable
Connections: Mounted cable with unterminated wires provided; Length: approximately 2 meters (79″)
Proportional Valve Controller—DIN Coil Mount—

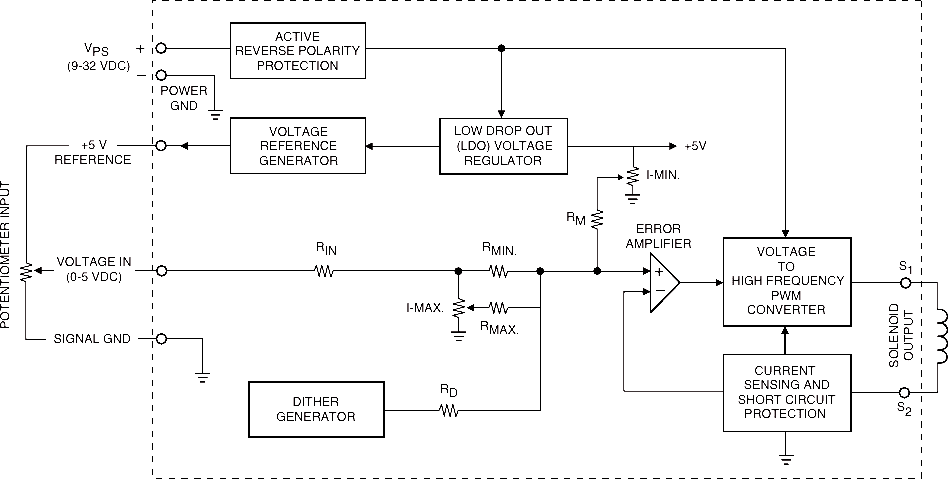

SCHEMATICLOW DROP OUT (LDO) VOLTAGEREGULATORSOLENOIDOUTPUTACTIVEREVERSE POLARITYPROTECTIONDITHERGENERATORCURRENT SENSING AND SHORT CIRCUITPROTECTIONVPS POWERGNDPOTENTIOMETER INPUT +–S2S1I-MAX.RDRMIN.RINRMAX.ERRORAMPLIFIER+–RMI-MIN.+5VVOLTAGETO HIGH FREQUENCYPWMCONVERTERSIGNAL GNDVOLTAGE IN(0-5 VDC)VOLTAGEREFERENCEGENERATOR+5 VREFERENCE (9-32 VDC)
