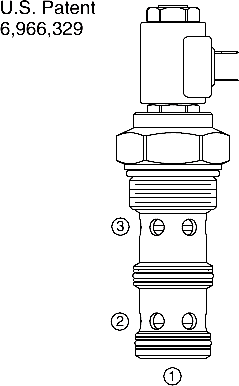

PV42-M30 Proportional Flow Control Cartridge, (PV42-M30)

A solenoid-operated, two-stage, three-port, pressure-compensated, spool-type, nor-mally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow.

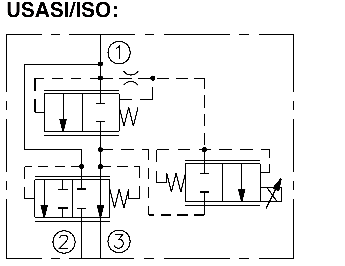

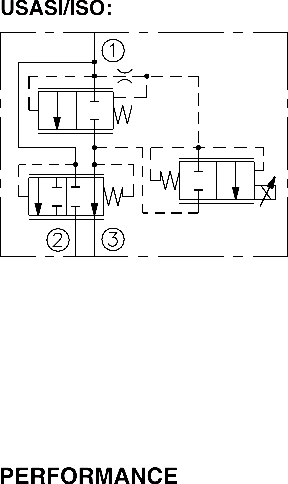

Product Operation

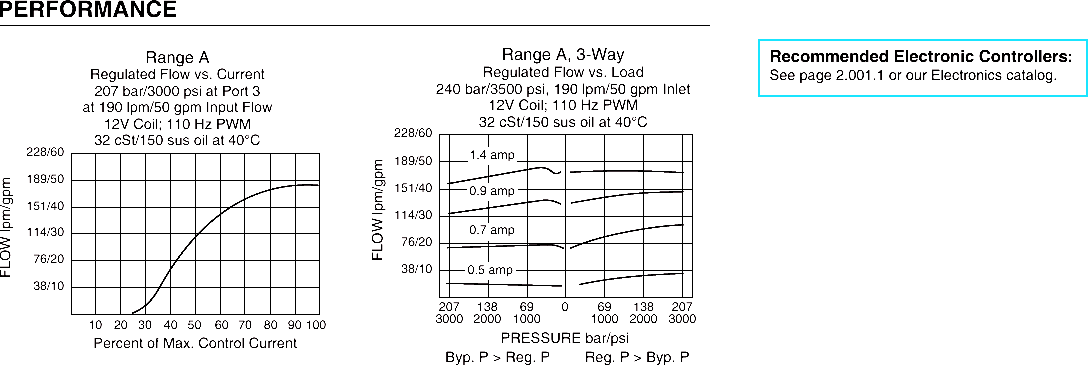

The PV42-M30 will regulate flow out of port 3 regardless of system working pressure at 3 or at bypass port 2. Two priority flow ranges are provided for better resolution: Range A for priority flow up to 170 lpm/45 gpm, and Range B for priority flow up to 132 lpm/35 gpm. For either range, the input flow at 1 can be up to 225 lpm/60 gpm.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory.
Operation of Manual Override: To Engage: Turn clockwise approximately 3 turns to reach start point. Continue another approximately 2 more turns to full shift. To Disen-gage: Turn counterclockwise approximately 5 turns to positive stop.

Product Features

• Excellent linearity and hysteresis characteristics.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet armature construction.

Product Ratings

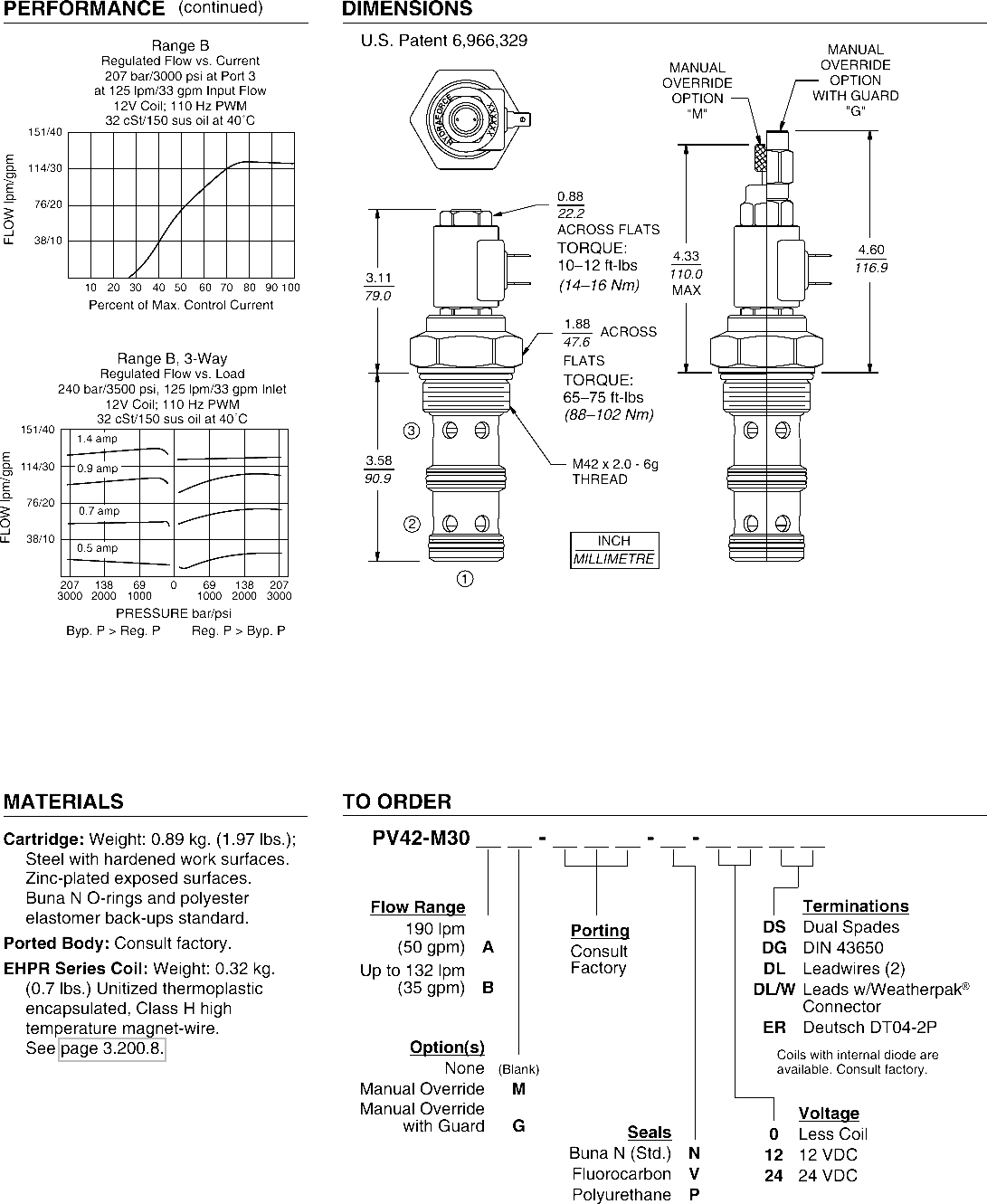

Operating Pressure: Inlet: 240 bar (3500 psi); Ports 2 and 3: 207 bar (3000 psi)
Regulated Flow Rate: Range A: 190 lpm (50 gpm) maximum
Range B: 132 lpm (35 gpm) maximum
Maximum Input Flow: 225 lpm (60 gpm)
Maximum Internal Leakage: 1.52 lpm (0.40 gpm) at zero current
Electrical: 2 standard voltage ratings
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.
Cavity: VC42-M3; See page 9.142.1;
Cavity Tool: CT42-M3X-XX; See page 8.600.1
Seal Kit: SK42-3X-MM; See page 8.650.1 for seal kit options and appropriate seals based on application temperature range.
