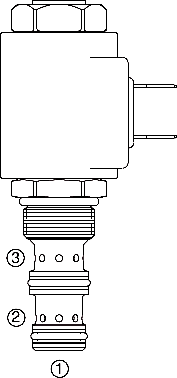

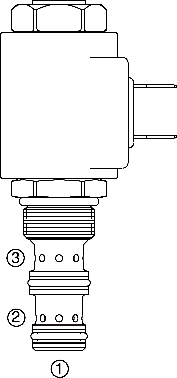

PV08-31 Proportional Flow Control Cartridge, (PV08-31)

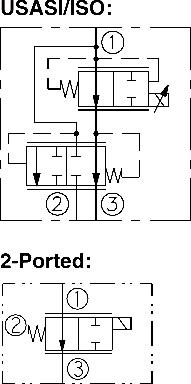

A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally open when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.
Product Operation

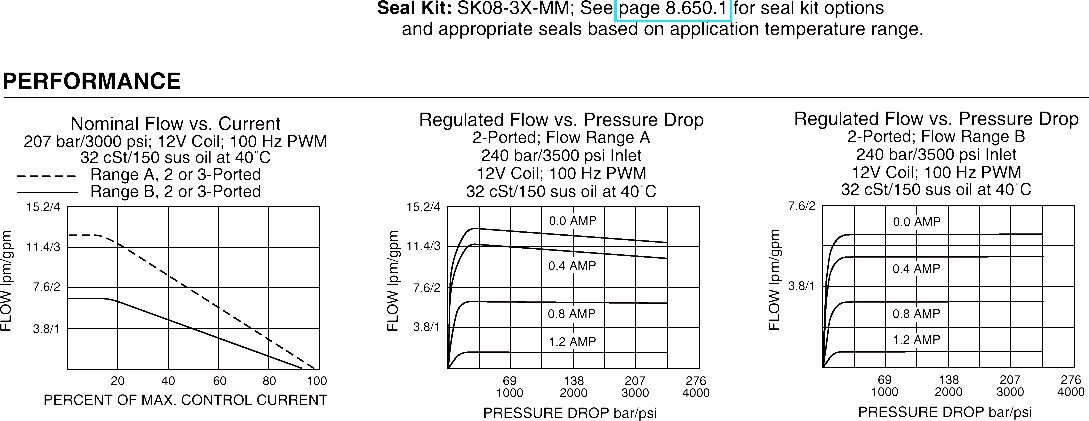

The PV08-31 will regulate flow out of port 3 regardless of system working pressure. With increasing current applied to the solenoid, the PV08-31 will decrease output flow.
Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving (dead-headed), a small bleed orifice is required at the priority port (port 3). Consult factory.
Product Features
• Excellent linearity and hysteresis characteristics.
• Hardened spool and cage for long life.
• Optional coil voltages and terminations.
• Efficient wet armature construction.
Product Ratings
Operating Pressure: Inlet: 240 bar (3500 psi); Ports 2 and 3: 207 bar (3000 psi)
Regulated Flow Rate: Bypass Blocked, Range A: 11.4 lpm (3.0 gpm)
Bypass Blocked, Range B: 5.7 lpm (1.5 gpm) Bypass Open, Range A: 11.4 lpm (3.0 gpm) Bypass Open, Range B: 5.7 lpm (1.5 gpm)
Nominal Input Flow: Bypass Open, Range A: 15.2 lpm (4.0 gpm)
Bypass Open, Range B: 7.6 lpm (2.0 gpm)
Maximum Input Flow: Bypass Open, Range A: 22.8 lpm (6.0 gpm)
Bypass Open, Range B: 22.8 lpm (6.0 gpm)
Internal Leakage: 100 cc/min. (6 cu. in./min.) fully closed at 207 bar (3000 psi)
Electrical: 2 standard voltage ratings (Uses EHPR Series Coil; See page 3.200.1)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1.

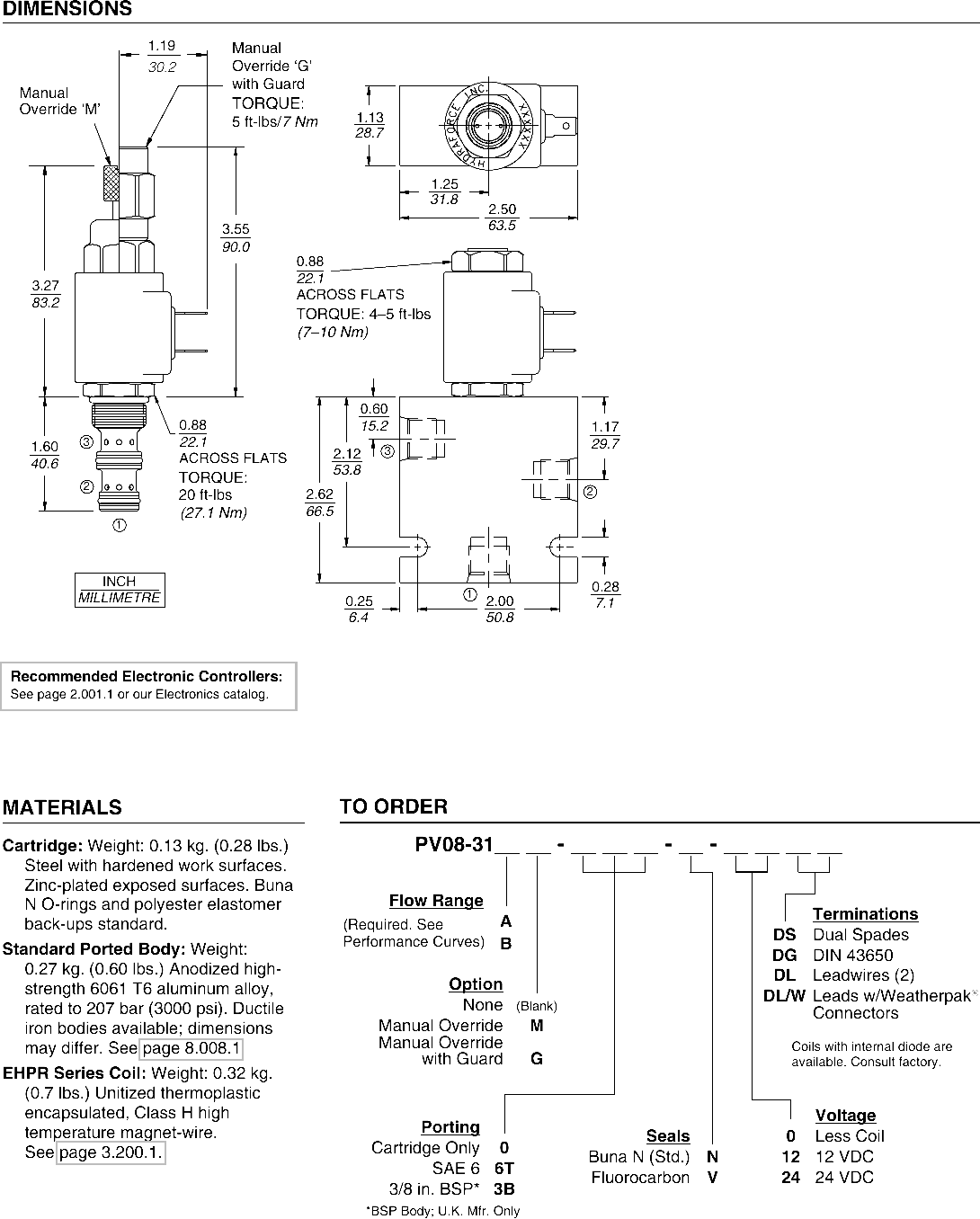

Cavity: VC08-3; See page 9.108.1;
Cavity Tool: CT08-3X-XX; See page 8.600.1
Seal Kit: SK08-3X-MM; See page 8.650.1 for seal kit options and appropriate seals based on application temperature range.
