SP08-57D Spool, 5-Way, 3-Position… (SP08-57D)

A solenoid-operated, five-way, three-position, proportional, screw-in hydraulic cartridge valve with integral load-sense port.

Product Operation

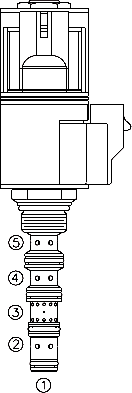

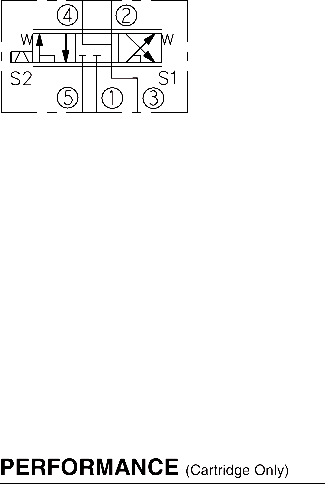

When de-energized, the SP08-57D blocks flow at 5 while allowing flow from both 2 and 4 to 3. When coil #1 is energized, flow is allowed from 5 to 2, and from 4 to 3. When coil #2 is energized, flow is allowed from 5 to 4, and from 2 to 3. Load sense is connected to port 5 when the spool is in shifted positions.
Note: If low voltage is expected on the machine, 12 or 24 volt systems will require the use of 10 volt or 20 volt coils respectively. See “SP Valves and Coil Operating Parameters,” page 2.002.1.

Product Features

 Continuous-duty rated solenoid.
 Hardened precision spool and cage for long life.
 Optional coil voltages and terminations• Cartridges are voltage interchangeable.
 Compact size; Manual override options.
 Optional waterproof E-Coils rated up to IP69K.

Product Ratings

Operating Pressure: 241 bar (3500 psi) with standard Buna N seals

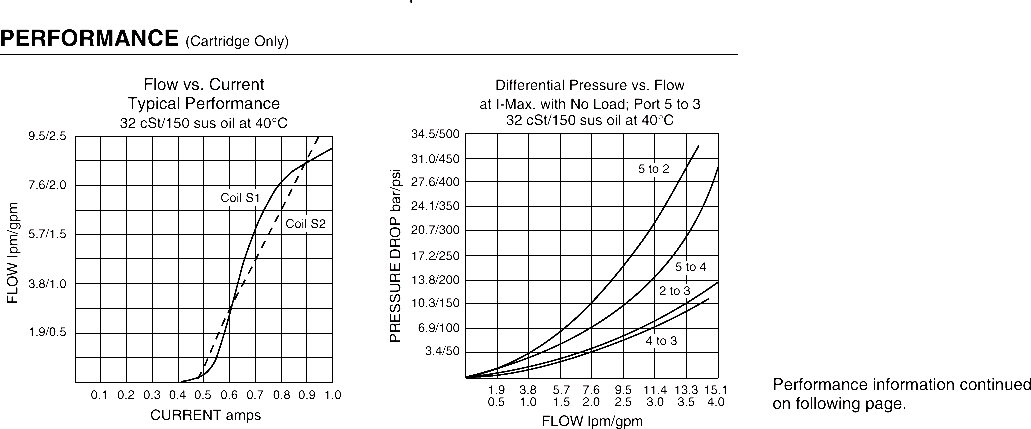

Flow: 9.5 lpm (2.5 gpm); see performance charts
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Temperature: -40 to 120°C with standard Buna seals
Coil Duty Rating: Continuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20° C: Standard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified). E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage: 85% of nominal at 207 bar (3000 psi)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

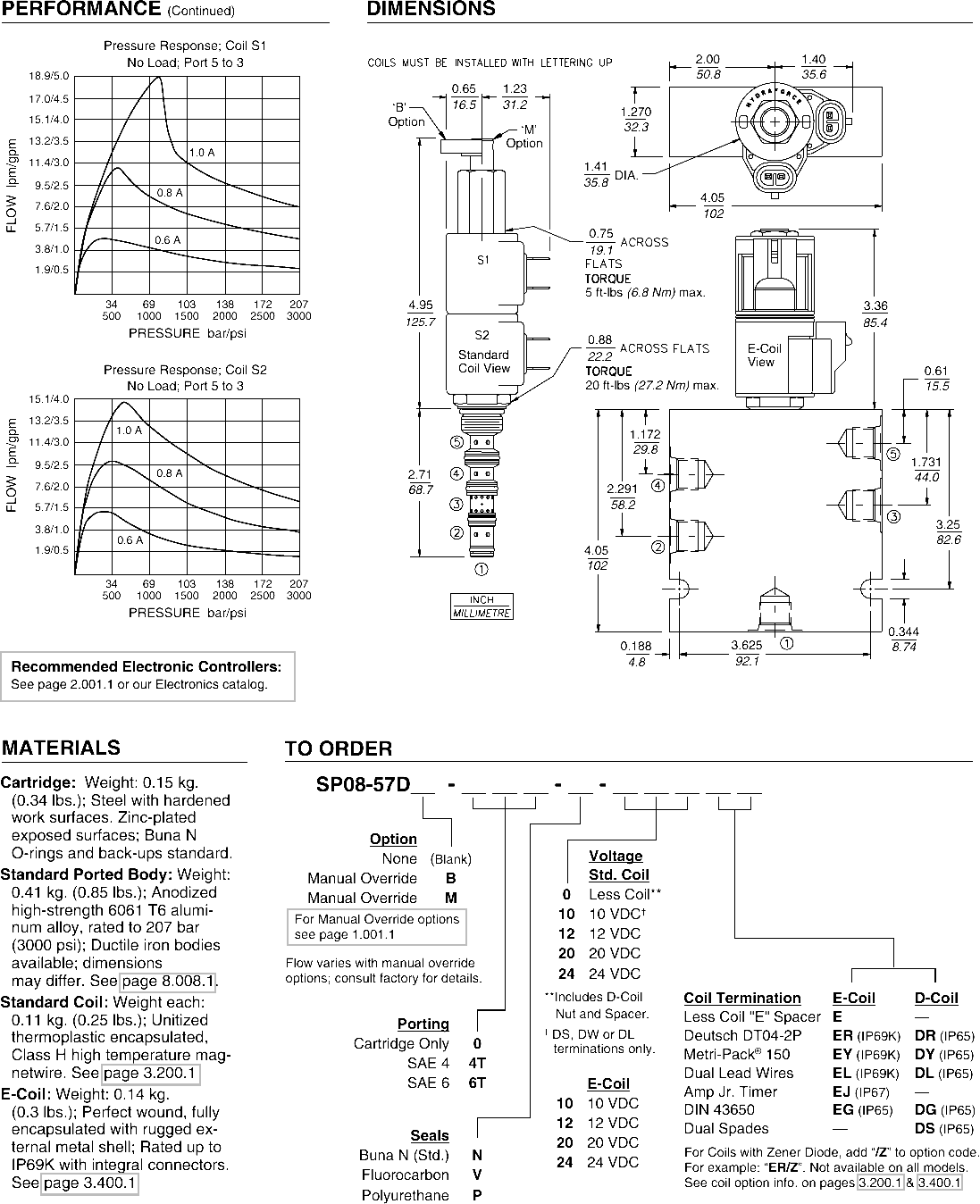

Cavity: VC08-5; See page 9.108.1;
Cavity Tool: CT08-5XX; See page 8.600.1
Seal Kit: SK08-5X-MMM; See page 8.650.1
Coil Nut: Part No. 7004400
Coil Spacer: Std
D-Coil Spacer
Part No. 7012940; E-Coil Spacer Part No. 4534720; If cartridge is ordered “Less Coil,” D-Coil spacer will be provided unless an E is specified in the Coil Termination To Order section.
