Proportional Directional Valves, 3-Port with Load Sense

SPCL16-32 Poppet, 3-Port, Normally Closed (SPCL16-32)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
When the SPCL16-32 is energized, the poppet lifts to allow flow from port 3 to ports 1 and 2. Flow at port 2 is typical for load sensing applications.
</div>
<div>
<h3>Product Features</h3>
• Industry-common cavity.
• Efficient wet-armature construction.
• Continuous-duty rated coils.
• Optional waterproof E-Coils rated up to IP69K.
• Reduce manifold space claim.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: Maximum: 250 bar (3625 psi); Minimum: 2.4 bar (35 psi)
Flow Rating: up to 152 lpm (40 gpm); see performance charts
Internal Leakage: Ports 1 and 3: 5 drops/minute max. at 250 bar (3625 psi)Port 2: 15 drops/minute max. at 250 bar (3625 psi)
Operating Temperature: -40° to 100°C (-40° to 212° F) with standard Buna N seals;-26° to 204°C (-15° to 400°F) with Fluorocarbon seals;-54°C to 104°C (-65°F to 225°F) with Polyurethane seals
Valve Inductance: 173.3 mH at 1.2A (Max. Control Current)
Threshold Current: 0.40A to 0.60A
Hysteresis: Less than 10% of maximum flow at 1.2A (Max. Control Current)
Dither Frequency: 100 Hz recommended
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>;
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Cavity: VC16-3SPCL; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-3SPCL; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-3X-MM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Coil Nut: Part No. 7004400
</div>
</div>
<div class="product-related"> </div>

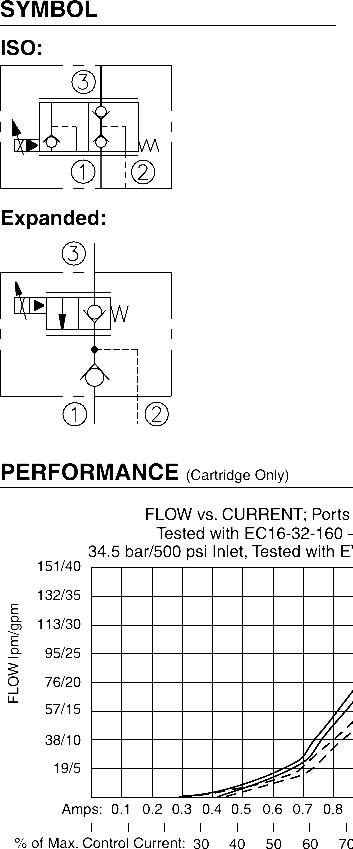

2-043-1-symbols

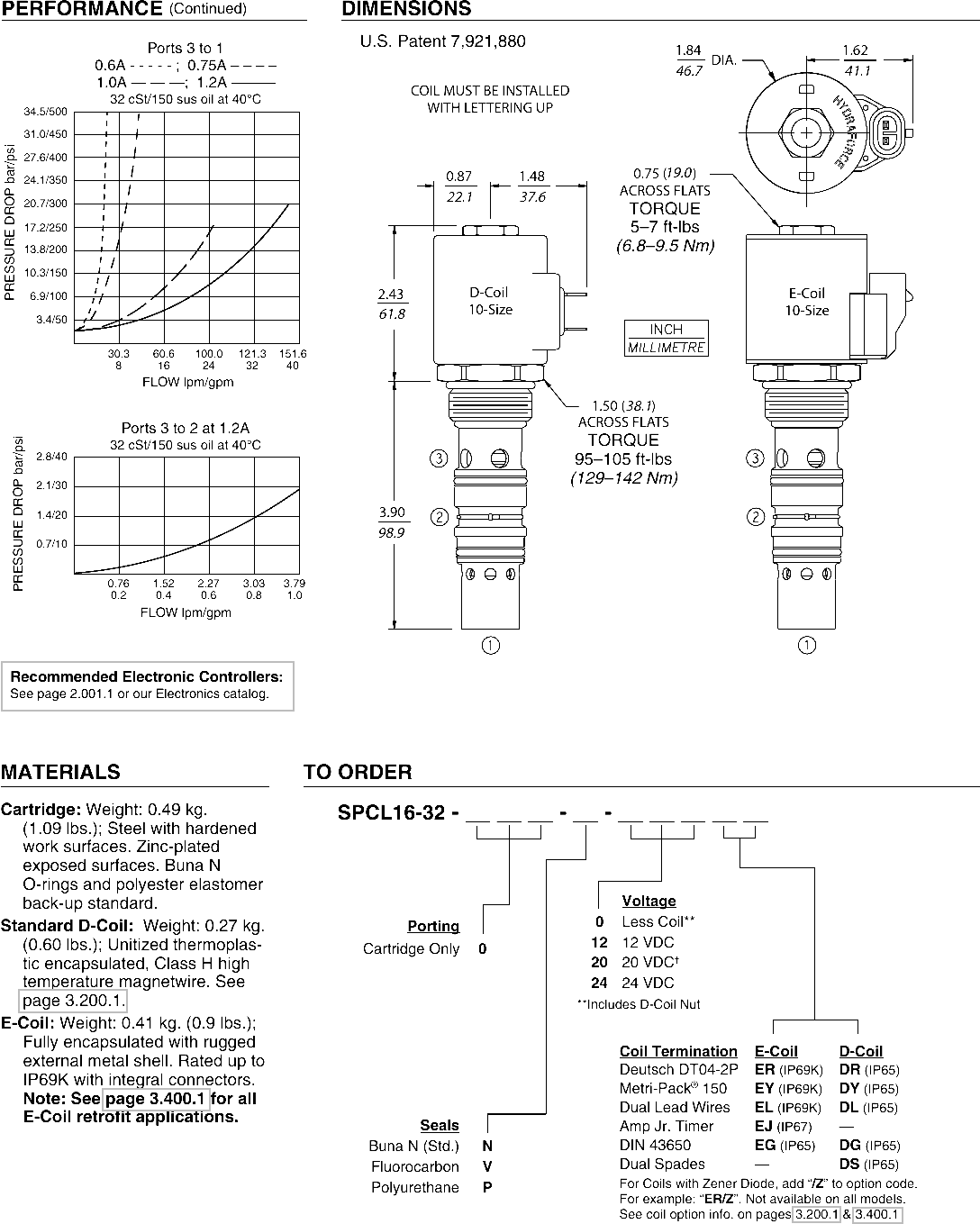

2-043-1-image-dimensions

2-043-1-symbols-graphs-image

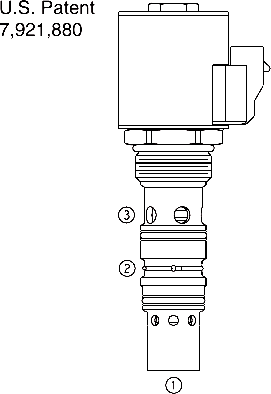

2-043-1-main-image

A solenoid-operated, 3-port, normally-closed, proportional, poppet-type, screw-in hydraulic cartridge valve for low-leakage blocking and load-holding applications.
