Piloted, 3-Way Spool Valves, Vented

PD12-40 Piloted 3-Way Spool, External Vent (PD12-40)

<div class="product-info group">
<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD12-40 allows flow from ➂ to ➁ bidirectionally, while flow is blocked at ➃. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow at ➁Because of the vented spring chamber, the cartridge may be fully pressurized at any
port without affecting required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required with 7.6 bar (110 psi) Spring:To Spool Crossover:
7.6 bar (110 psi)To Full Spool Shift:
9.1 bar (132 psi)
Oil Volume Required to Full Shift: 1.32 cc (0.08 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-4; See page <a title="9.112.2" href="https://www.savery.co.uk/products/view/9-112-2">9.112.2</a>
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Cap Vent Seal: Part Number 6003121
</div>
</div>
<div class="product-related"> </div>

4-341-1-symbols

4-341-1-main-image

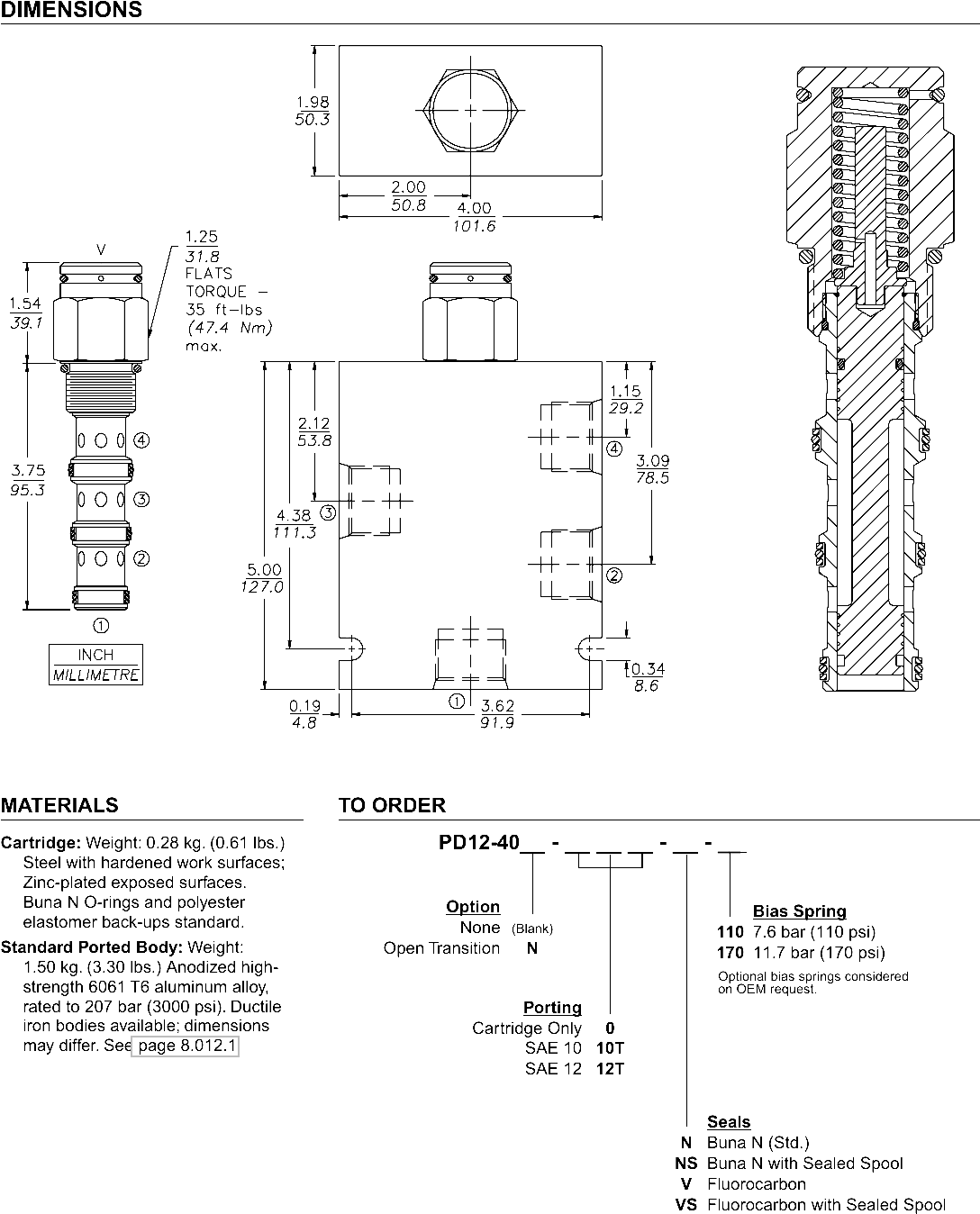

4-341-1-image-dimensions

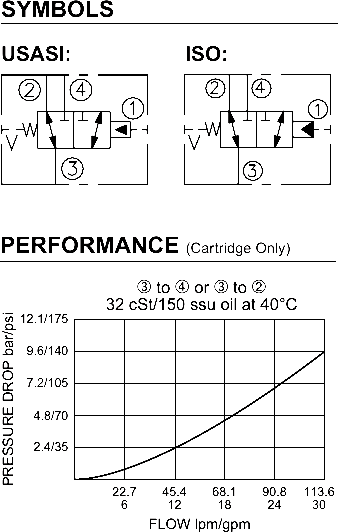

4-341-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.

24.03.28_BAR_Savery_2577

Bespoke Projects

<ul class="ul1">
<li class="li1">Bespoke lubrication systems for testing Aerospace propulsion using high temperature fluids and test article scavenge capability</li>
<li class="li1">Bespoke lubrication solution for testing Automotive EV components.</li>
<li class="li1">Bespoke assembly rigs for Aircraft landing gear with built in test facilities.</li>
<li class="li1">Bespoke pressure testing and flushing rigs for Aircraft assembly plants.</li>
<li class="li1">Purpose design test benches for fluid power components.</li>
<li class="li1">Ground support trolleys for production and field use for Aircraft testing.</li>
<li class="li1">Hydraulic ring mains for aircraft production and servicing.</li>
<li class="li1">Hydraulic Infrastructure for test houses.</li>
</ul>

Bespoke-Projects

140223Savery_154

140223Savery_175 (1)

Savery Hydraulics have a highly experienced team for fluid control for hydraulic, electronic control, installation and project management. Using this experience we have supported customers with a wide range of projects which are not traditionally considered hydraulic equipment. Some examples of bespoke projects we have successfully delivered are:-

Savery_2_comp

hero-bg

Hydraforce

Hydraforce products meet global quality standards including ISO 9001, QS 9000 and CE. Every Hydraforce valve, coil, solenoid, manifold and electro-hydraulic control goes through rigorous testing and inspection to perform beyond industry standards.

Savery offers one of the most comprehensive lines of hydraulic valves, solenoids and coils and is the UK distributor for the Hydraforce range of products for the mobile and industrial equipment markets, including high performance valves for flow rates of 0.4 to 530lpm and pressure up to 420 bar.

Tile_image

Savery_36_comp

Tile_backgorund_image_No_2

Hydraulic Control Systems

Tailored Solutions for Precision Control
Our in-house hardware and software design team is dedicated to delivering cost-effective and reliable solutions for a wide array of control system needs. From embedded microcontroller systems to large-scale machine controls, we excel in designing and developing systems that meet the most demanding specifications.
&nbsp;
Cloud-Based Monitoring for Seamless Access
We offer cloud-based system monitoring solutions that provide 24/7 access through smart phone or tablet apps, giving you real-time insights into your operations from anywhere.
&nbsp;
Industry-Leading Expertise
With extensive experience across various industries, including aerospace, automotive, wind turbine testing, marine, and industrial sectors, our engineers bring invaluable expertise to every project.

Hardware and Software Capabilities
Small-Scale Control Systems: We design cost-effective control systems in-house using bespoke electronic control boards giving you optimal performance for your specific needs.
Microchip Programming: We specialise in programming microchips for specialist applications in fluid power, providing tailored solutions for precise control.
Large-Scale Machine Control Systems: Our capabilities include designing dedicated Motor Control Centre (MCC) cabinets and implementing System Control and Data Acquisition (SCADA) plant monitoring for seamless operation of complex machinery.
Software Authoring: We are proficient in various software platforms, including:
<ul>
<li>Delta Motion Controllers </li>
<li>National Instruments LabView© </li>
<li>National Instruments LabWindows CVI© </li>
<li>PLCs: Allen Bradley, Siemens, Omron, Schneider, Bachmann, Koyo </li>
<li>HMI and SCADA Systems: Siemens, Schneider, Bachmann, Koyo </li>
</ul>

Cost-Effective Solutions, Tailored to Your Needs
Our deep understanding of different control systems enables us to select the most cost-effective platform to suit your systems development, ensuring you get the best value for your investment.
At Savery, we are committed to delivering innovative, reliable, and tailored solutions that optimise the performance of your hydraulic systems, empowering you to achieve your goals with precision and efficiency.
Get in touch with us today to discuss your project needs.

140223Savery_125

140223Savery_127

140223Savery_155

140223Savery_126

At Savery, we design and manufacture electronic systems that ensure the safe and efficient control and monitoring of hydraulic equipment. Our expertise lies in providing comprehensive control system solutions tailored to your specific requirements, with a focus on bespoke applications.

Hydraulic-Control-System

Savery_39_comp

24_03_28_BAR_Savery_3818

Hydraulic Control Systems

24.03.28_BAR_Savery_2711

Hydraulic Power Unit

Our power units vary from compact, fixed pump systems to intricate setups featuring multiple variable displacement pumps and energy-saving variable speed drive technology. These units can be equipped with control manifolds for basic relief unloading functions or complex hydraulic control circuitry, custom-made for your application.
We offer bespoke electrical control equipment that can manually or automatically control the power source, adhering to all current safety standards. This can be paired with simple condition monitoring for parameters such as flow, pressure, level, temperature, and fluid condition, or with advanced SCADA data recording for remote access via the cloud. This ensures safe and reliable 24/7 operation of equipment.
Our power units can include fluid reservoirs ranging from 10 litres to over 14,000 litres, with built-in bund containment to meet regulatory requirements.
With Savery, you’re in safe hands. We work with you from conception through design, project planning, installation, commissioning, and servicing to deliver a cost-effective and efficient hydraulic and control solution.
We have successfully completed projects in various industries, including:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Civil: Flood Barriers, Roll-on/Roll-off dock equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Marine: Ship Stabiliser, steering and deck equipment (with in-house 60 Hz testing capability) </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Testing Infrastructure: Automotive, Aerospace, research and production component testing </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Mechanical Handling: Large Scissor lifts </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Defence and Security: Specialist equipment </li>
<li data-leveltext="" data-font="Symbol" data-listid="2" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Wind: Turbine Blade testing </li>
</ul>
Trust Savery Hydraulics for your hydraulic power needs.

Hydraulic-Power-Unit

At Savery Hydraulics, we specialise in the design and manufacture of hydraulic power units tailored to customer specifications. Our offerings range from single fractional power motors to multiple pump sets, with power installations up to 2 Mw.

Savery_11_comp

24.03.28_BAR_Savery_2719

24.03.28_BAR_Savery_4084

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

ManifoldAssembly

Our team of experienced engineers can simplify the most complex hydraulic circuits to reduce cost, improve reliability, minimise pipe work connections and the physical size &amp; weight of the solutions.
Custom manifold assemblies are:
<ul>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="1" data-aria-level="1">Designed by our engineers in house using the latest 3D CAD software for integration into your product. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="2" data-aria-level="1">Designed utilising Hydraforce cartridge valves and a vast range of other manufacturer’s components to achieve the required performance. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="3" data-aria-level="1">Machined using modern CNC equipment with specialist tooling to ensure high quality. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="4" data-aria-level="1">Manufactured from aluminium, steel or stainless steel to meet system pressure, flow and application requirements. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="5" data-aria-level="1">Designed in conjunction with your engineers to ensure we meet your unique requirements and installation needs. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="6" data-aria-level="1">Supplied in a variety of sizes from small manifold blocks with cartridges capable of controlling low(a few litres per minute) flow rate up to large complex assemblies for hundreds of litres per minute. </li>
<li data-leveltext="" data-font="Symbol" data-listid="1" data-list-defn-props="{&quot;335552541&quot;:1,&quot;335559685&quot;:720,&quot;335559991&quot;:360,&quot;469769226&quot;:&quot;Symbol&quot;,&quot;469769242&quot;:[8226],&quot;469777803&quot;:&quot;left&quot;,&quot;469777804&quot;:&quot;&quot;,&quot;469777815&quot;:&quot;multilevel&quot;}" aria-setsize="-1" data-aria-posinset="7" data-aria-level="1">Supplied fully assembled &amp; tested in our UK facility &amp; meeting the necessary ISO recommended guidelines for hydraulic cleanliness prior to dispatch. </li>
</ul>

Manifold-Assembly

24.03.28_BAR_Savery_2587

Savery custom manifolds can be designed as part of a new power unit or to enhance your existing equipment & machinery. Custom designed manifolds offer no-leak, screw-in components with fast and easy valve removal and replacement.

Manifold Assembly

For Product page (2) (1)

Contact Us

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.

Small HydraulicPower Packs

The PB300 series of power units offer the latest design and features not normally associated with this type of unit. The units have a pressure up to 300 bar, which is achieved by the use of high specification materials. The centre adaptor can be machined to give a vast range of integral control options for single and double acting circuits.
Applications for this type of unit are numerous DC units for battery powered use include our tail lift packs and can be found on tippers, aerial access equipment and material handling trucks. AC units with power ratings from 0.25kW to 5.5kW have an even greater range of applications including the retail and service industry for the handling of goods &#8211; loading and unloading of vehicles and the lift industry for lifts installed in the home, disabled lifts and automotive assembly plants.
Savery has developed hydraulic power packs specifically for applications such as dock levellers, which provide a bridge between the loading bay and the truck being loaded or unloaded.
PB300 units have;
<ul>
<li>DC units 12V &amp; 24V / 0.2 – 3.5kW.</li>
<li>AC units 3 Phase &amp; 1 Phase / 0.25 – 5.5kW.</li>
<li>A vast range of control options for single and double acting circuits.</li>
<li>Advanced pressure die-cast aluminium centre adaptor.</li>
<li>The ability to eliminate porosity.</li>
</ul>
<img loading="lazy" decoding="async" class="alignnone size-full wp-image-5274" src="https://cms.savery.co.uk/wp-content/uploads/2024/03/E11-Logo.jpg" alt="" width="110" height="48" />

Small-Hydraulic-Power-Pack

Product page tile image (1)

Mini-packs-

Product_Page_Image

Savery offer a complete and comprehensive range of hydraulic power units, incorporating highly flexible, cost effective modular construction suited to both OEM and small users. The design of units for special applications is an important part of Savery’s marketing activities and our engineers can develop a unit to perfectly match our customer’s requirements.

Savery hydraulic power packs and mini power packs are the culmination of many years of experience in manufacturing AC and DC power packs.


Savery_34_comp

Small Hydraulic Power Packs

PD42-M42 Piloted 3-Way Spool, Internal Vent (PD42-M42)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD42-M42 allows flow passage between ➂ and ➁ while ➃ is blocked.On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow to ➁Note that ➃ is common to the spring chamber. Pressure on ➃ will directly (1:1) affect required pilot pressure and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the piloted position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed pilot.
• Industry-standard ISO cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: With Polyurethane Seals: Ports ➀, ➁, &amp; ➂: 345 bar (5000 psi); Port ➃: 210 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage at Maximum Operating Pressure: All Ports : 246 cc/minute (15 cu. in./minute); The sealed pilot version exhibits no leakage at maximum operating pressure.
Pilot Pressure Required: To Begin Spool Movement: 11.9 bar (172 psi)To Bring Spool to Cross-Over Point:
14.5 bar (210 psi)To Fully Shift the Spool:
17 bar (245 psi)
Oil Volume Required to Full Shift: 2.5 cc (0.15 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-353-1-symbols

4-353-1-main-image

4-353-1-symbols-graphs-image

4-353-1-image-dimensions

PD42-M41 Piloted 3-Way Spool, Internal Vent (PD42-M41)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD42-M41 allows flow from ➂ to ➃ while ➁ is blocked.On remote pilot signal at ➀, the valve shifts to open from the ➂ to ➁ flow path, while blocking flow to ➃Note that ➃ is common to the spring chamber. Pressure on ➃ will directly (1:1) affect required pilot pressure and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the normal or spring-offset position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.• Optional sealed pilot.• Industry-standard ISO cavity.
</div>
<div>
<h3>Product Ratings</h3>
Maximum Operating Pressure: With Polyurethane Seals: Ports ➀, ➁, &amp; ➂: 345 bar (5000 psi); Port ➃: 210 bar (3000 psi)
Flow: See Performance Chart
Internal Leakage at Maximum Operating Pressure: Ports ➁, ➂, &amp; ➃: 246 cc/minute (15 cu. in./minute);Port ➀: 524 cc/minute (32 cu. in./minute)With the sealed pilot there is no leakage at ➀ at maximum operating pressure.
Pilot Pressure Required: To Begin Spool Movement: 11 bar (160 psi)To Bring Spool to Cross-Over Point:
16.2 bar (235 psi)To Fully Shift the Spool:
18.3 bar (265 psi)
Oil Volume Required to Full Shift: 2.5 cc (0.15 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-348-1-symbols

4-348-1-symbols-graphs-image

4-348-1-main-image

4-348-1-image-dimensions

PD42-M40 Piloted 3-Way Spool, External Vent (PD42-M40)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD42-M40 allows flow passage from ➂ to ➁ bidirectionally, while flow is blocked at ➃. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow at ➁The vented spring chamber allows PD42-M40 to be fully pressurized at any port
without affecting required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed pilot.
• Industry-standard ISO cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 344 bar (5000 psi) with polyurethane seals
Flow: See Performance Chart
Internal Leakage: 246 cc/minute (15 cu. in./minute) max. at 344 bar (5000 psi)
Pilot Pressure Required: To Spool Crossover: 11.6 bar (172 psi)
To Full Spool Shift:
17 bar (245 psi)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC42-M4; See page <a title="9.142.1" href="https://www.savery.co.uk/products/view/9-142-1">9.142.1</a>
Cavity Tool: CT42-M4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK42-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Cap Vent Seal: 6003125
</div>

4-343-1-symbols

4-343-1-main-image

4-343-1-symbols-graphs-image

4-343-1-image-dimensions

PD16-42 Piloted 3-Way Spool, Internal Vent (PD16-42)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD16-42 allows flow passage between ➂ and ➁ while ➃ is blocked.
On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow to ➁Note that ➃ is common to the spring chamber. Pressure on ➃ will directly (1:1) affect required pilot pressure and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the piloted position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed pilot.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required: To Spool Crossover: 7.6 bar (110 psi)
To Full Spool Shift:
9.0 bar (130 psi)
Oil Volume Required to Full Shift: 2.5 cc (0.15 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-352-1-symbols

4-352-1-image-dimensions

4-352-1-main-image

4-352-1-symbols-graphs-image

PD16-41 Piloted 3-Way Spool, Internal Vent (PD16-41)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD16-41 allows flow from ➂ to ➃ while ➁ is blocked.On remote pilot signal at ➀, the valve shifts to open from the ➂ to ➁ flow path, while blocking flow to ➃Note that ➃ is common to the spring chamber. Pressure on ➃ will directly (1:1) affect required pilot pressure and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the normal or spring-offset position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.• Optional sealed pilot.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required: To Spool Crossover: 7.6 bar (110 psi)To Full Spool Shift:
9.0 bar (130 psi)
Oil Volume Required to Full Shift: 2.5 cc (0.15 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-347-1-symbols

4-347-1-main-image

4-347-1-symbols-graphs-image

4-347-1-image-dimensions

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.



PD16-40 Piloted 3-Way Spool, External Vent (PD16-40)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD16-40 allows flow passage from ➂ to ➁ bidirectionally, while flow is blocked at ➃. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the cartridge flow paths.
On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow at ➁The vented spring chamber allows PD16-40 to be fully pressurized at any port without
affecting required pilot pressure.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Optional sealed pilot.
• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required: To Spool Crossover: 7.6 bar (110 psi)
To Full Spool Shift:
9.0 bar (130 psi)
Oil Volume Required to Full Shift: 2.5 cc (0.15 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC16-4; See page <a title="9.116.1" href="https://www.savery.co.uk/products/view/9-116-1">9.116.1</a>
Cavity Tool: CT16-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK16-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
Cap Vent Seal: 6003125
</div>

4-342-1-symbols

4-342-1-image-dimensions

4-342-1-main-image

4-342-1-symbols-graphs-image

PD12-42 Piloted 3-Way Spool, Internal Vent (PD12-42)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD12-42 allows flow from ➂ to ➁ bidirectionally while ➃ is blocked.On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow at ➁Since ➃ is common to the spring chamber, pressure on ➃ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the piloted position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 115 cc/minute (7 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required Using 7.6 bar (110 psi) Spring:To Spool Crossover: 7.6 bar (110 psi)To Full Spool Shift:
9.1 bar (132 psi)
Oil Volume Required to Full Shift: 1.32 cc (0.08 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-4; See page <a title="9.112.2" href="https://www.savery.co.uk/products/view/9-112-2">9.112.2</a>
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-351-1-symbols

4-351-1-image-dimensions

4-351-1-symbols-graphs-image

4-351-1-main-image

PD12-41 Piloted 3-Way Spool, Internal Vent (PD12-41)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD12-41 allows flow from ➂ to ➃. ➁ is blocked.On remote pilot signal at ➀, the valve shifts to open from ➂ to ➁, while blocking flow to ➃Since ➃ is common to the spring chamber, pressure on ➃ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the normal or spring-offset position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.
• Cost effective cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 420 bar (6090 psi)
Flow: See Performance Chart
Internal Leakage: 246 cc/minute (15 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required Using 7.6 bar (110 psi) Spring:To Spool Crossover:
7.6 bar (110 psi)To Full Spool Shift:
9.1 bar (132 psi)
Oil Volume Required to Full Shift: 1.32 cc (0.08 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC12-4; See page <a title="9.112.1" href="https://www.savery.co.uk/products/view/9-112-1">9.112.1</a>
Cavity Tool: CT12-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK12-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-346-1-symbols

4-346-1-image-dimensions

4-346-1-main-image

4-346-1-symbols-graphs-image

PD10-42 Piloted 3-Way Spool, Internal Vent (PD10-42)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD10-42 allows flow from ➂ to ➁ bidirectionally while ➃ is blocked.
On remote pilot signal at ➀, the valve shifts to open from ➂ to ➃, while blocking flow at ➁Since ➃ is common to the spring chamber, pressure on ➃ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
Note: Consult factory for applications where bi-directional flow is required when the
valve is in the piloted position.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Proof Pressure: 350 bar (5075 psi)
Flow: See Performance Chart
Internal Leakage: 82 cc/minute (5 cu. in./minute) max. at 207 bar (3000 psi)
Pilot Pressure Required: To Spool Crossover: 4.1 bar (60 psi) Spring: 4.7 bar (68.2 psi) 7.6 bar (110 psi) Spring: 7.6 bar (110 psi)
To Full Spool Shift: 4.1 bar (60 psi) Spring: 5.2 bar (75 psi) 7.6 bar (110 psi) Spring: 8.6 bar (125 psi)
Oil Volume Required to Full Shift: 0.65 cc (0.04 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

PD12-40 Piloted 3-Way Spool, External Vent (PD12-40)

Product Operation

Product Features

Product Ratings

PD42-M42 Piloted 3-Way Spool, Internal Vent (PD42-M42)

PD42-M41 Piloted 3-Way Spool, Internal Vent (PD42-M41)

PD42-M40 Piloted 3-Way Spool, External Vent (PD42-M40)

PD16-42 Piloted 3-Way Spool, Internal Vent (PD16-42)

PD16-41 Piloted 3-Way Spool, Internal Vent (PD16-41)

PD16-40 Piloted 3-Way Spool, External Vent (PD16-40)

PD12-42 Piloted 3-Way Spool, Internal Vent (PD12-42)

PD12-41 Piloted 3-Way Spool, Internal Vent (PD12-41)

PD12-40 Piloted 3-Way Spool, External Vent (PD12-40)

PD10-42 Piloted 3-Way Spool, Internal Vent (PD10-42)

Savery also offer

Bespoke Projects

Hydraforce

Hydraulic Control Systems

Hydraulic Power Unit

Manifold Assembly

Small Hydraulic Power Packs
