Piloted, 2-Way Spool Valves, Ported Vent

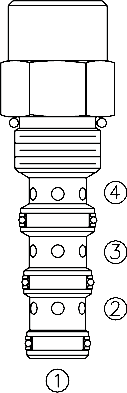

PD10-45 Piloted 2-Way Spool (PD10-45)

<div>
<h3>Product Operation</h3>
In neutral (unpiloted), the PD10-45 allows flow from ➂ to ➁ bidirectionally. The spring chamber is directed to port ➃On remote pilot signal at ➀, the valve shifts to block from ➂ to ➁, bidirectionally.Since ➃ is common to the spring chamber, pressure on ➃ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
</div>
<div>
<h3>Product Features</h3>
• Hardened spool and cage for long life.• Industry common cavity.
</div>
<div>
<h3>Product Ratings</h3>
Operating Pressure: 240 bar (3500 psi)
Flow: See Performance Chart
Internal Leakage: at 207 bar (3000 psi) and 38° C (100° F):From ➂ to ➁ and ➃: 82 cc/minute (5 cu. in./minute) max.From ➀ to ➁: 164 cc/minute (10 cu. in./minute) max.
Pilot Pressure Required: To Spool Crossover: 4.1 bar (60 psi) Spring: 4.7 bar (68.2 psi) 7.6 bar (110 psi) Spring: 7.6 bar (110 psi)
To Full Spool Shift: 4.1 bar (60 psi) Spring: 5.2 bar (75 psi) 7.6 bar (110 psi) Spring: 8.6 bar (125 psi)
Oil Volume Required to Full Shift: 0.65 cc (0.04 cu. in.)
Temperature: -40 to 120°C with standard Buna seals
Filtration: See page <a title="9.010.1" href="https://www.savery.co.uk/products/view/9-010-1">9.010.1</a>
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page <a title="9.060.1" href="https://www.savery.co.uk/products/view/9-060-1">9.060.1</a>
Installation: No restrictions; See page <a title="9.020.1" href="https://www.savery.co.uk/products/view/9-020-1">9.020.1</a>
Cavity: VC10-4; See page <a title="9.110.1" href="https://www.savery.co.uk/products/view/9-110-1">9.110.1</a>
Cavity Tool: CT10-4XX; See page <a title="8.600.1" href="https://www.savery.co.uk/products/view/8-600-1">8.600.1</a>
Seal Kit: SK10-4X-MMM; See page <a title="8.650.1" href="https://www.savery.co.uk/products/view/8-650-1">8.650.1</a>
</div>

4-360-1-symbols

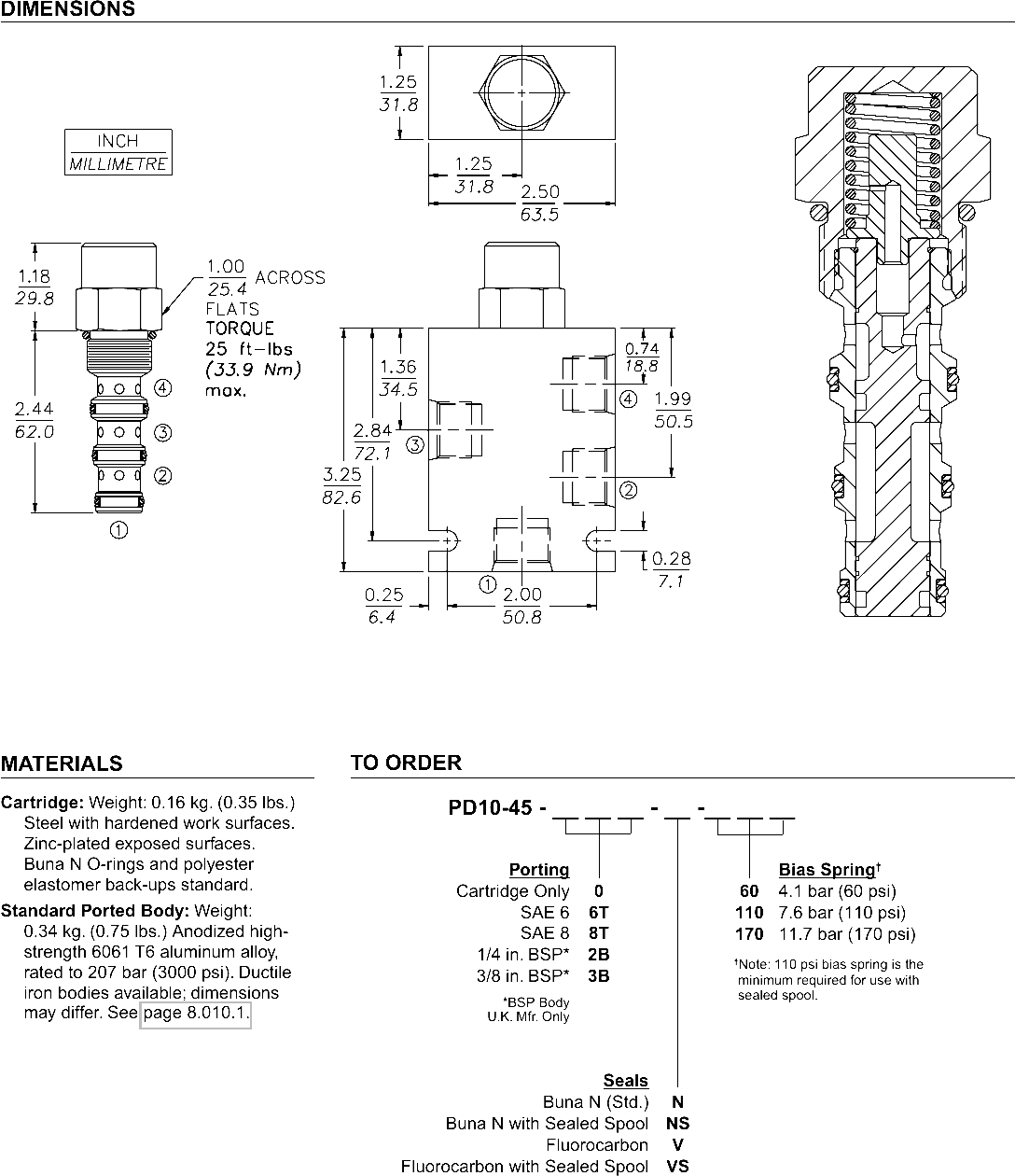

4-360-1-image-dimensions

4-360-1-main-image

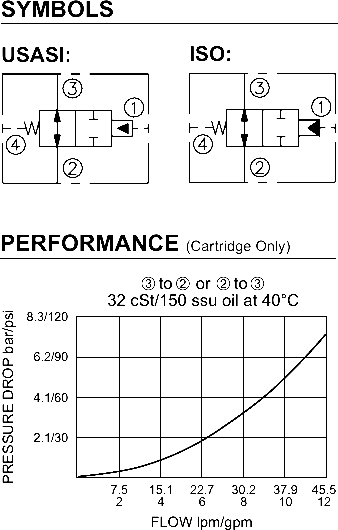

4-360-1-symbols-graphs-image

A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for two-way circuits requiring remote pilot actuation and vented spring chamber.
