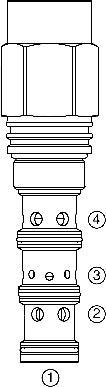

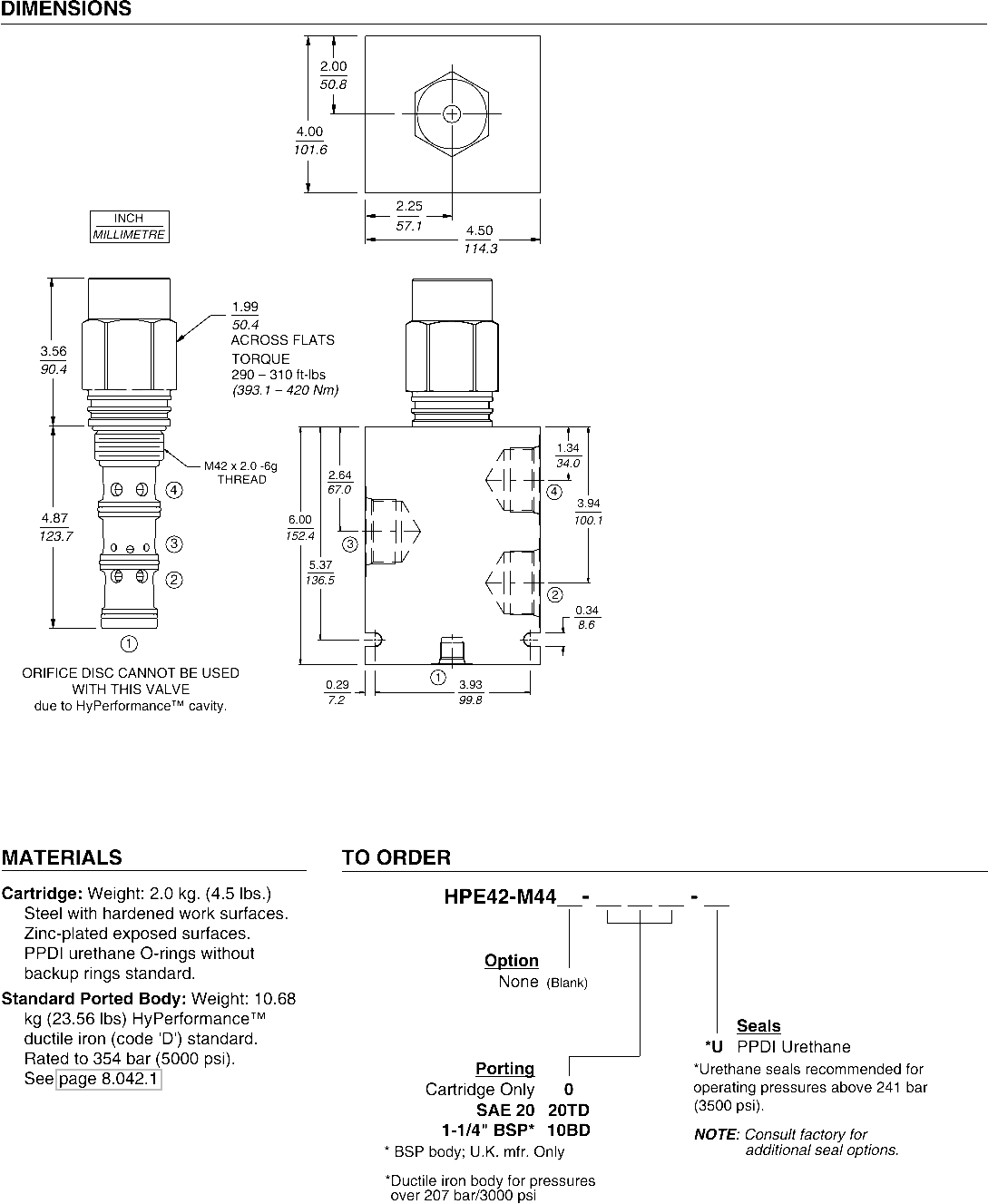

HPE42-M44 HyPerformance (HPE42-M44)
A high pressure, screw-in, cartridge-style, pilot-operated, proportional spool-type, hydraulic directional valve.
Product Operation
In neutral (unpiloted), the HPE42-M44 blocks flow from 2 to 3 bidirectionally. On remote pilot signal at 1, the spool shifts proportionally to the applied pilot pressure to allow flow from port 2 to 3 bidirectionally. The spring chamber is vented to port 4. Pressure at 4 will directly (1:1) affect the pilot pressure required and must be added to the bias spring valve.
Product Features
• Hardened spool and cage for long life.
• Optional sealed pilot.
• Cost-effective cavity.• All HyPerformance™ products are tested to the rigorous standards of the NFPA specification T2.6.1.• All HyPerformance™ valves are tested at a verification level of 90% and an assurance of 99%.

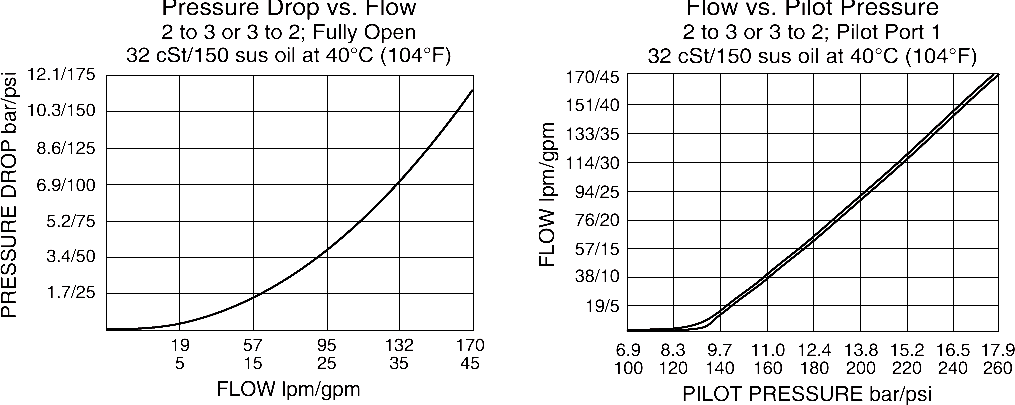

Product Ratings
Operating Pressure: 350 bar (5075 psi); 10% duty cycle 420 bar (6090 psi) Note: All HyPerformance™ products are tested for 900K cycles at 350 bar and 100K cycles at 420 bar.
Proof Pressure: 690 bar (10,000 psi)
Burst Pressure: 1380 bar (20,000 psi)
Flow Rating: 170 lpm (45 gpm)
Internal Leakage: 230 ml/minute (14 cu. in./minute) max. at 350 bar (5075 psi)
Pilot Pressure Required To Full Spool Shift: 27 bar (400 psi) minimum
Operating Fluid Temperature: -54 to 107°C (-65 to 225°F) with PPDI urethane seals; Storage Temperature: -40 to 70°C (-40 to 160°F)
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: HVC42-M4; See page 9.142.1
Cavity Tool: HCT42-M4xx; See page 8.600.1
Seal Kit: SK42-M4U-000; See page 8.650.1

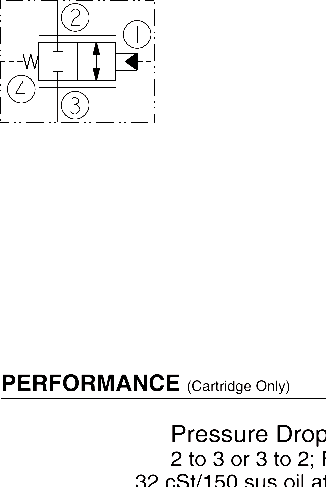

ISO SYMBOL
4.410.1
