MP10-20 Manual, Spring Return, Pull-to-Open (MP10-20)

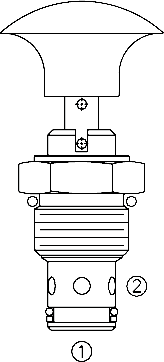

A manual, 2-way, pull-to-open, screw-in hydraulic directional valve.
Product Operation
The MP10-20 blocks flow from ➁ to ➀ until an operator pulls the shaft outward.The bias spring allows for up to 12.4 bar (180 psi) back-pressure at ➀ before the valve will open.
Note: Pressure at port ➀ will directly act on the spool and spring. Port ➀ is intended to be a tank port only.
A unique 90° rotational lock is optional for positive “open” position holding. The valve
resets to spring return-to-close with a 90° turn from the locked-open position.
Product Features
• Hardened seat for long life and low leakage.
• Remains closed to 12.4 bar (180 psi) back-pressure.
• Optional rotational lock position.
• Industry common cavity.
Product Ratings
Operating Pressure: 207 bar (3000 psi)
Proof Pressure: 350 bar (5075 psi)

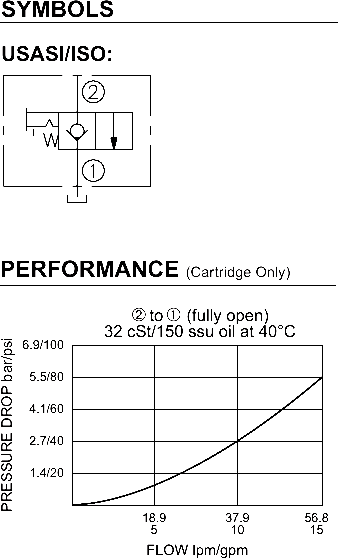

Flow: See Performance Chart
Internal Leakage ➁
to ➀
: 0.25 cc/minute (5 drops/minute) max. at 207 bar (3000 psi)
Mechanical Pull Effort Required at Rated Pressure: 7.3 kg. (16 lbs.)
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1
Cavity: VC10-2; See page 9.110.1
Cavity Tool: CT10-2XX; See page 8.600.1
Seal Kit: SK10-2X-T; See page 8.650.1
