MP10-47C Manual Pull/Push-to-Shift, 3-Position, (MP10-47C)

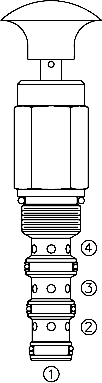

A 4-way, 3-position, spool-type, closed center, manual pull/push-to-shift, spring-return, directional hydraulic cartridge valve.
Product Operation

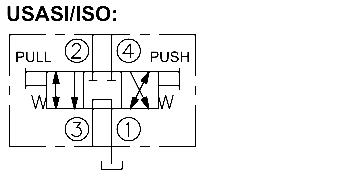

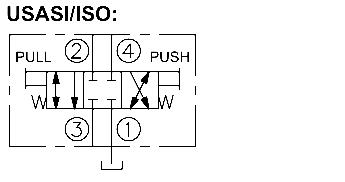

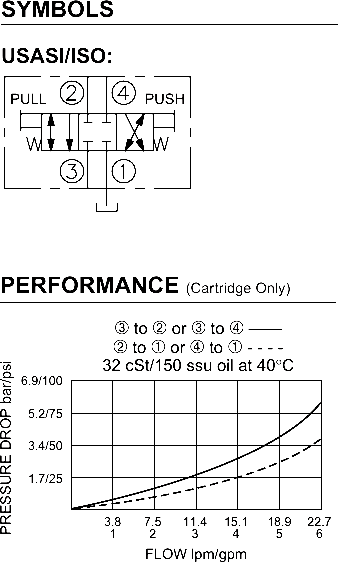

In its neutral position, the MP10-47C blocks all ports. In the pulled position, flow is
allowed bi-directionally between ports ➂ and ➃ and from ➁ to ➀. In the pushed position, flow is allowed between ports ➂ and ➁ and from ➃ to ➀
Product Features
• Hardened spool and cage for long life.
• Industry common cavity.
Product Ratings
Operating Pressure:Ports ➁, ➂ and ➃: 207 bar (3000 psi)Port ➀ (Max.): 14 bar (200 psi)

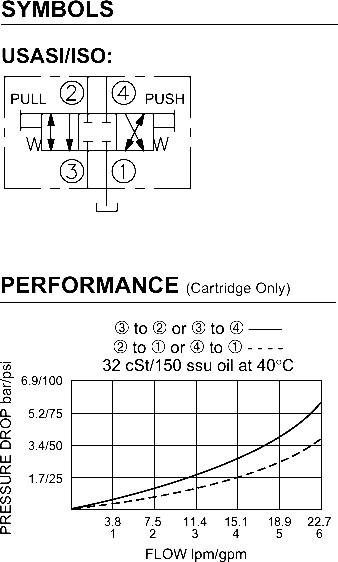

Flow: See Performance Chart
Internal Leakage: 41 cc/minute (2.5 cu. in./minute) at 207 bar (3000 psi) max.
Mechanical Pull/Push Effort Required: 9.0 kg. (20 lbs.) initial; 11.3 kg. (25 lbs.) full stroke
Temperature: -40 to 120°C
Filtration: See page 9.010.1
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No restrictions; See page 9.020.1

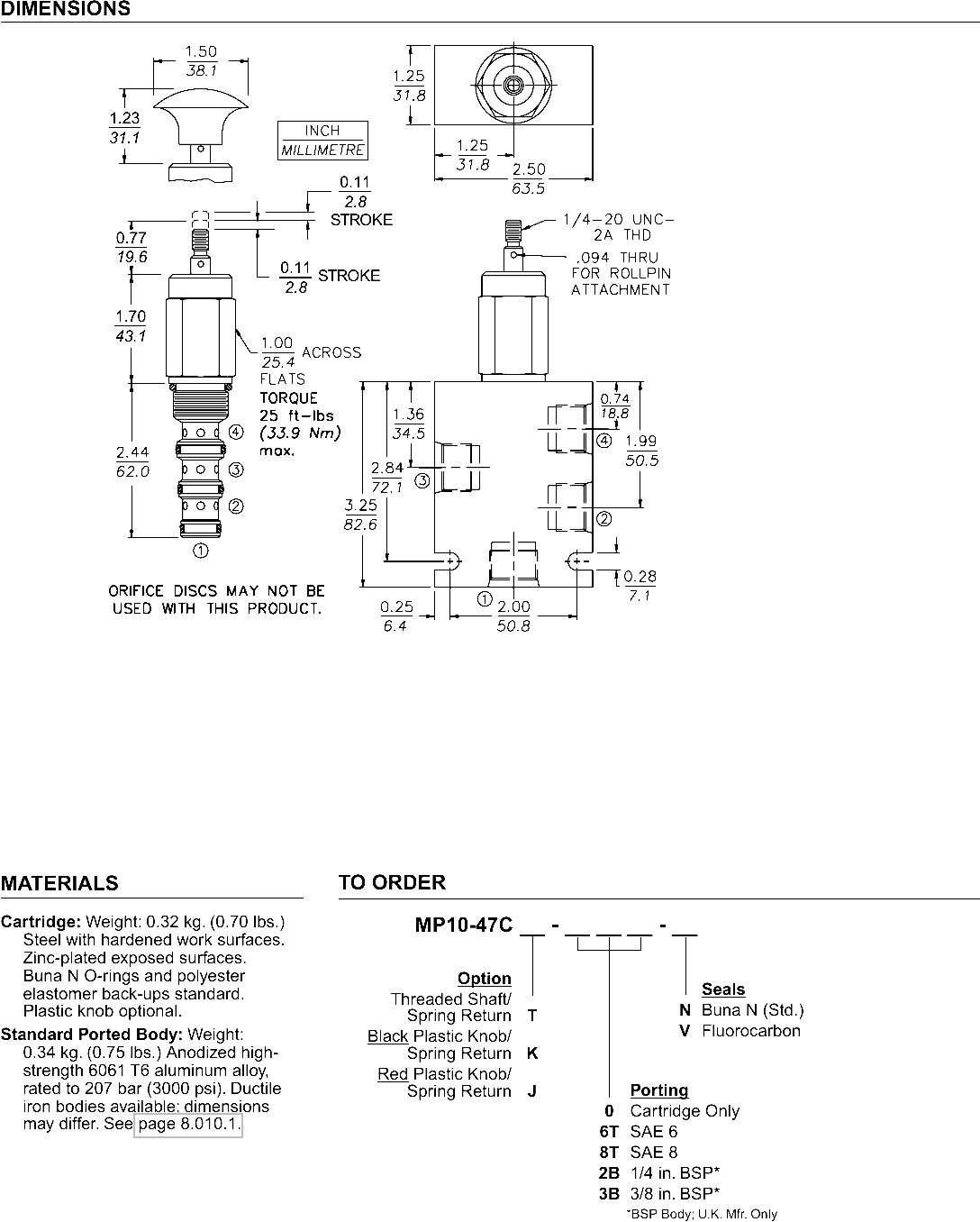

Cavity: VC10-4; See page 9.110.1
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMT; See page 8.650.1
