MR10-43 (MR10-43)
A manually-operated four-way, two-position directional valve, with adaptability to a variety of adjustment operators (ordered separately).

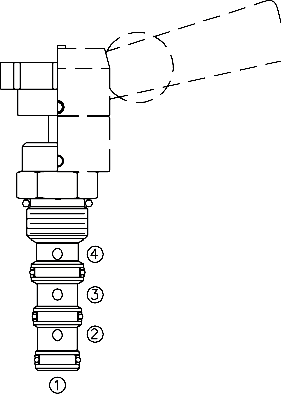

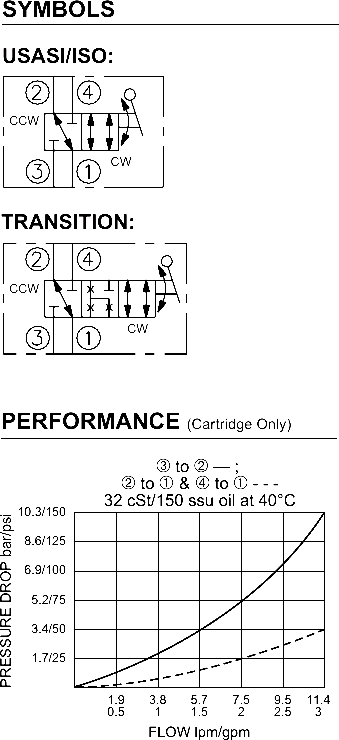

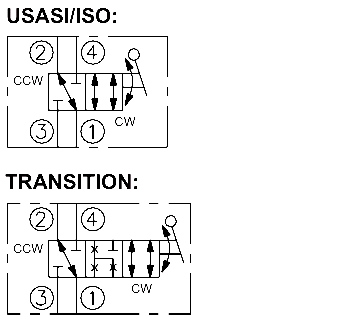

Two positions, 90° rotation. In extreme counterclockwise position ports ➀ and ➁ are open while ports ➂ and ➃ are closed. In extreme clockwise position, ports ➀ and ➃ are open while ports ➁ and ➂ are open. In transition, ports ➀, ➁ and ➂ are partially open while port ➃ is closed.
Product Features
• Two-position detent or infinite friction lock may be ordered separately.
• May be fully pressurized at all ports.
• Optional lock-down bracket.
• Heavy-duty construction.
• Industry common cavity.

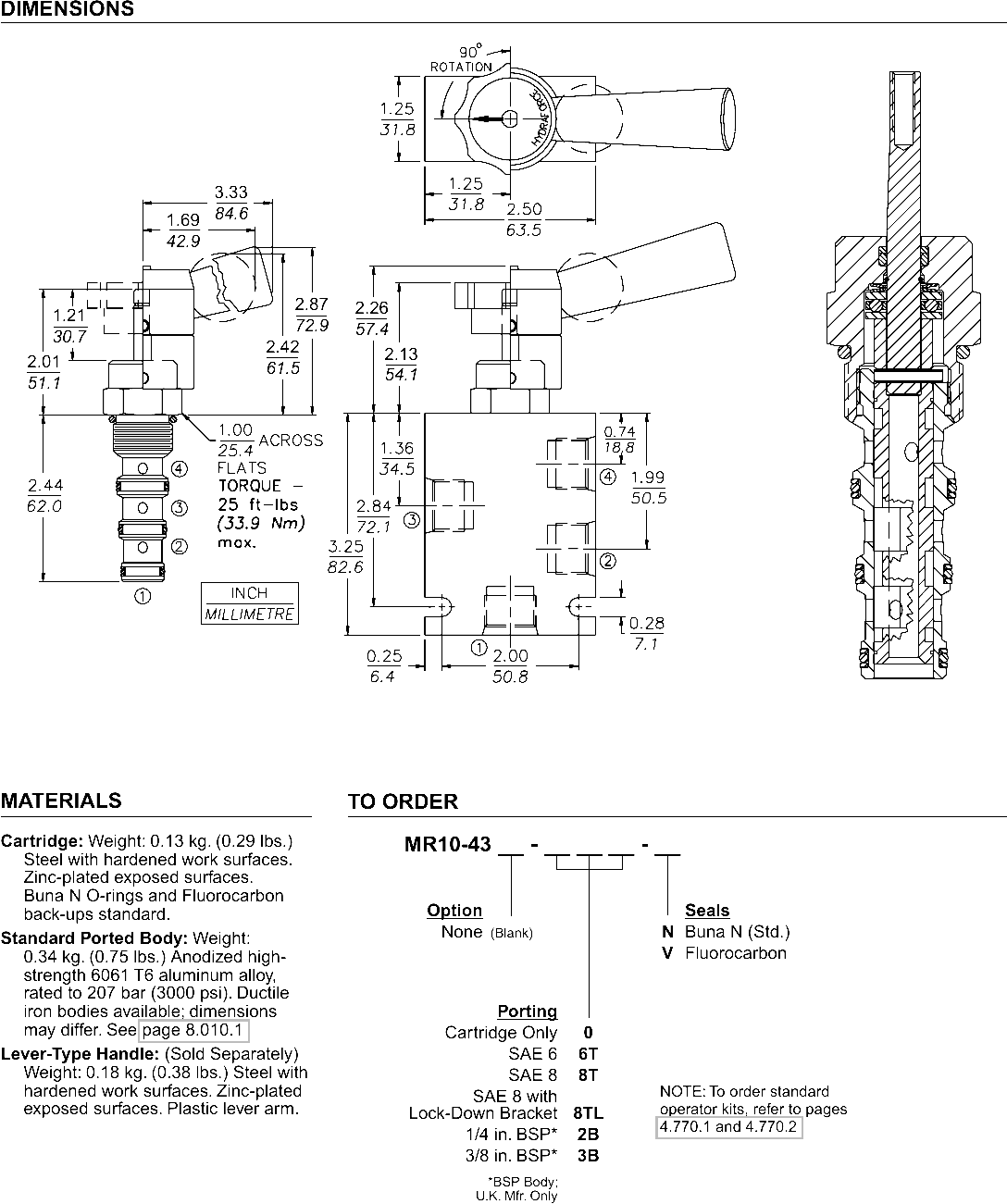

Product Ratings
Operating Pressure: 240 bar (3500 psi)
Max. Flow: See Performance Chart
Internal Leakage: 164 cc/minute (10 cu. in./minute) at 240 bar (3500 psi)
Temperature: -40 to 120°C with standard Buna N seals
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus); See Temperature and Oil Viscosity, page 9.060.1
Installation: No position restrictions; See page 9.020.1See page 4.990.2 for operator handles/knobs installation;See page 4.990.1 for lock-down bracket installation.
Cavity: VC10-4; See page 9.110.2
Cavity Tool: CT10-4XX; See page 8.600.1
Seal Kit: SK10-4X-MMM; See page 8.650.1
Lock-Down Bracket Kit: Part Number 5399000
