CVD08 08-Size Check Valve Disc (CVD08)

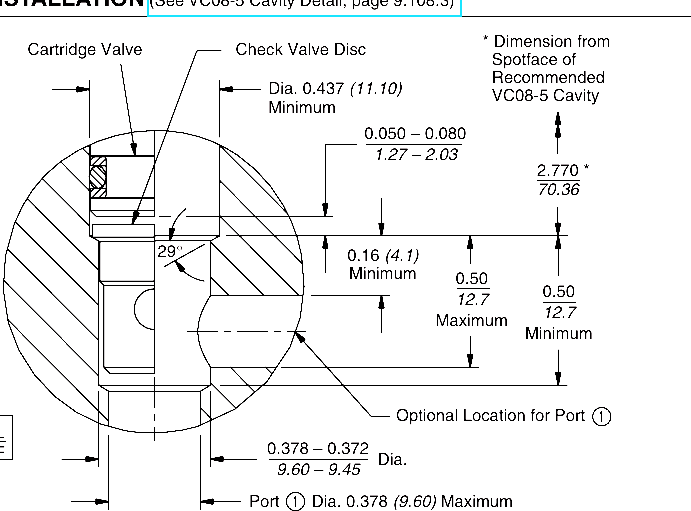

A drop-in, cartridge-style check valve disc designed to conveniently integrate with a 5-way directional cartridge as a load sense check on port ➀. The valve requires a modified cavity as indicated below. A drop-in, cartridge-style check valve disc designed to conveniently integrate with a 5-way directional cartridge as a load sense check on port ➀. The valve requires a modified cavity as indicated below.
Product Operation

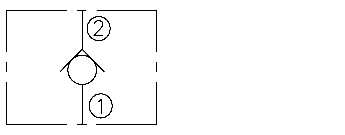

The CVD08 check valve disc allows free flow from port ➁ to port ➀, while normally blocking flow in the opposite direction.The CVD10 check valve disc allows free flow from port ➁ to port ➀, while normally blocking flow in the opposite direction.
Product Features
• Hardened parts for long life.
• Heavy duty construction.
• Industry common cavity.
• Hardened parts for long life.
• Heavy duty construction.
• Industry common cavity.
Product Ratings
Operating Pressure: 250 bar (3625 psi)
Internal Leakage: Maximum: 25 ml/minute (1.5 cu. in./minute) at 207 bar (3000 psi)
Operating Temperature: -40 to 120°C (-40° to 248°F)
Materials: Steel with hardened work surfaces
Weight: 0.01 kg. (0.02 lb.)
Operating Pressure: 250 bar (3625 psi)
Internal Leakage: Maximum: 25 ml/minute (1.5 cu. in./minute) at 207 bar (3000 psi)
Operating Temperature: -40 to 120°C (-40° to 248°F)
Materials: Steel with hardened work surfaces
Weight: 0.01 kg. (0.02 lb.)
